Запчасти Case IH 90XT (08-09) - HYDRAULICS COUPLER SYSTEM (08) - HYDRAULICS

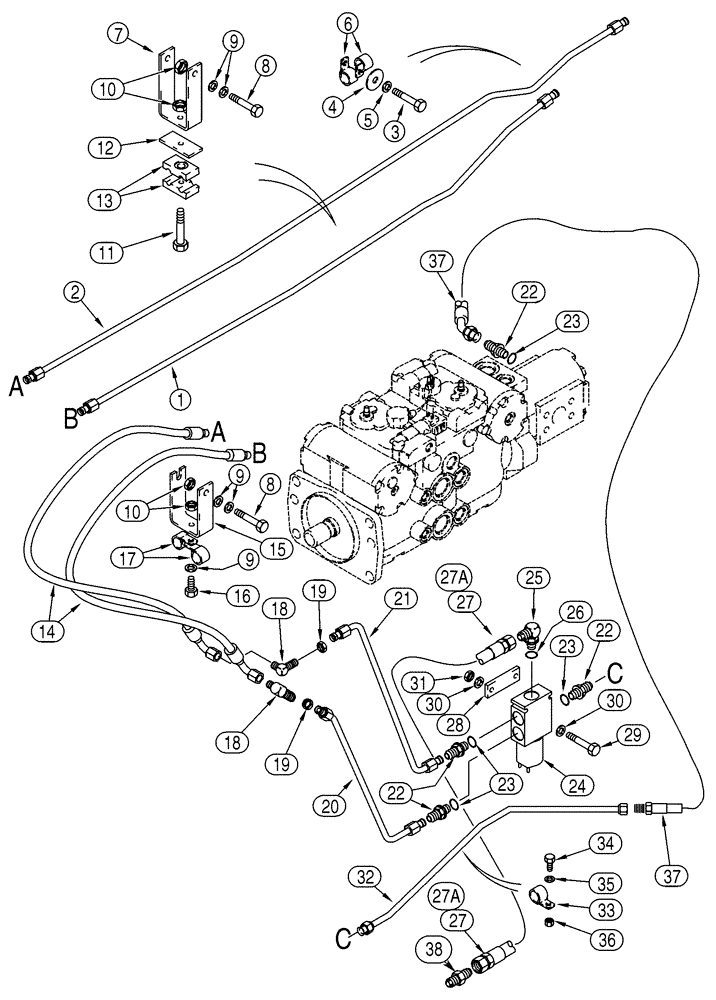

Схема запчастей Case IH 90XT - (08-09) - HYDRAULICS COUPLER SYSTEM (08) - HYDRAULICS
19
23
20
35
4
2
23
23
22
8
17
9
27a
36
12
6
19
18
27
37
9
15
30
29
14
3
9
26
25
22
22
33
30
32
5
18
11
31
24
10
34
13
1
16
10
28
8
27a
37
7
38
21
27

Артикул

Название

Примечание

Количество

1

283450A1

TUBE,1351, 131 mm Length

For Attaching Parts, See Figure 8-12, Ref. 19

1шт.

2

283459A1

TUBE,1376, 83 mm Length

For Attaching Parts, See Figure 8-12, Ref. 18

1шт.

3

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

4

240669A1

WASHER

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

7

259286A1

ANGLE

1шт.

8

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

10

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

13

1546024C1

CLAMP

2 Piece

1шт.

14

259282A1

HYDRAULIC HOSE

1172 mm (46-1/4 in)

2шт.

15

259285A1

ANGLE

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

18

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

20

259275A2

TUBE,355, 246 mm Length

1шт.

21

259273A2

TUBE,377, 254 mm Length

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 23

4шт.

24

187505C91

VALVE

See Figure 6-23

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 26

1шт.

27

259281A1

HYDRAULIC HOSE

494 mm (19-1/2 in), If Used

1шт.

27a

359363A1

HOSE,845.00 mm

If Used

1шт.

28

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

29

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

31

832-41306

NUT,M6 x 1, Cl 10

2шт.

32

277477A2

TUBE,9.53 mm OD, 503, 145 mm Length

1шт.

33

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

34

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

36

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

37

275379A1

HOSE ASSY.

390 mm (15-3/8 in)

1шт.

38

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Use with 359363A1, Ref 27A

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5057

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.
