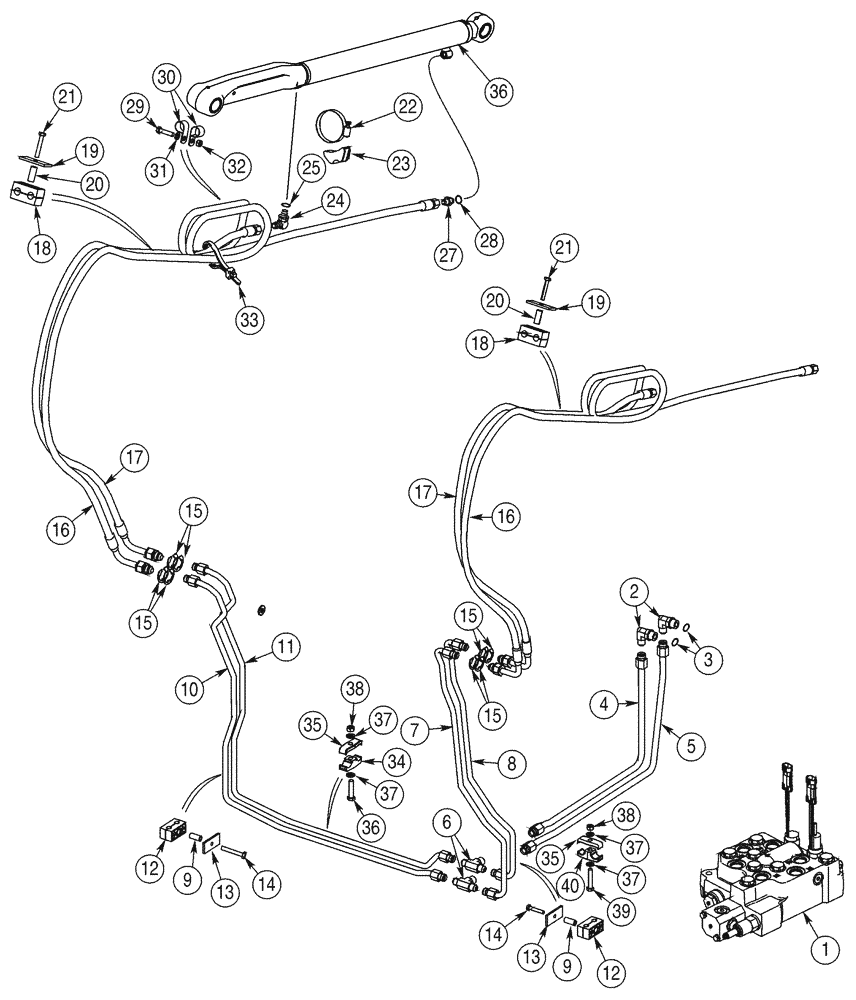

Запчасти Case IH 90XT (08-05) - HYDRAULICS LOADER BUCKET, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (08) - HYDRAULICS

1

409062A2

VALVE

Replaces: 409062A1, See Figures 8-17, 8-18, 8-20

1шт.

1

87431787

VALVE

Control; See Figure 08-08, 08-09; If Used; Replaces 409062A2

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj or, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5107

1шт.

4

433074A1

TUBE

1шт.

5

433072A1

TUBE

1шт.

6

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

7

433078A1

TUBE

Right Hand, Tip, Curl

1шт.

8

433076A1

TUBE

Right Hand, Tip, Dump

1шт.

9

259905A1

SPACER

2шт.

10

433082A1

TUBE

Left Hand, Tip, Curl

1шт.

11

433080A1

TUBE

Left Hand, Tip, Dump

1шт.

12

257919A1

CLAMP BRACKET

2 Piece

2шт.

13

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

14

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

15

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

16

257440A2

HOSE ASSY.,9.53mm ID x 2950mm L

2950 mm (116-1/4 in)

2шт.

17

257441A2

HOSE ASSY.,9.53mm ID x 2300mm L

2300 mm (90-5/8 in)

2шт.

18

257857A1

CLAMP

2 Piece

2шт.

19

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

20

293891A1

SPACER

2шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

22

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

23

D38648

BLOCK

2шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 25

2шт.

26

REF

INSTRUCTION

CYLINDER See Figures 8-25, 8-26

2шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 28

2шт.

29

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

30

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

32

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

34

D120679

CLAMP,Tube, 1/2"

1шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

38

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

39

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

40

D120613

CLAMP,20mm ID

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5057

1шт.
