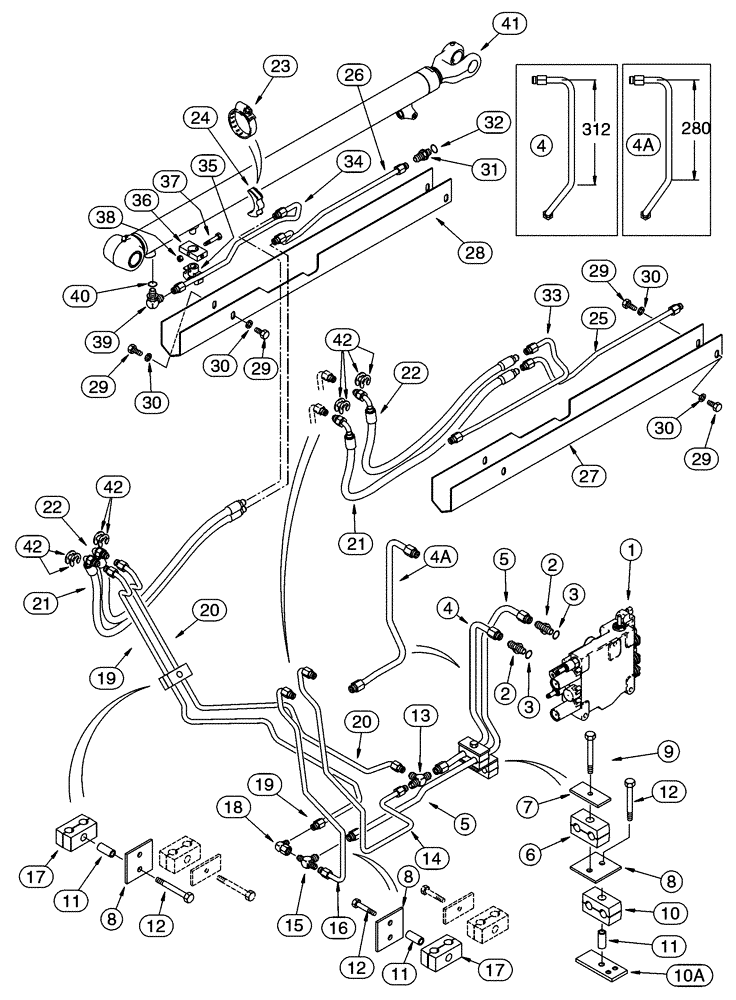

Запчасти Case IH 90XT (08-01) - HYDRAULICS LOADER LIFT, WITH LIFT CYLINDER WITH MOUNTING POST (08) - HYDRAULICS

1

300950A4

VALVE

Replaces: 228188A2, A3, A4; 300950A2, A3, See Figures 8-15, 8-16, 8-19

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

4

235130A3

TUBE

No Longer Available, Order Ref. 4A, 235130A4 This Figure, Ref. 5A, 235124A4 See Figure 8-4

1шт.

4a

235130A4

TUBE

1шт.

5

235127A3

TUBE

1шт.

6

1546026C1

CLAMP

1шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Top

1шт.

8

281873A1

LARGE PLATE

PLATE, LARGE

3шт.

9

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

10

257857A1

CLAMP

2 Piece

1шт.

10a

194739A1

LEDGER PLATE

Lower

1шт.

11

259905A1

SPACER

3шт.

12

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

13

218-1583

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

1шт.

14

235141A3

TUBE

Right Hand

1шт.

15

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

1шт.

16

235143A3

TUBE

Right Hand

1шт.

17

257919A1

CLAMP BRACKET

2 Piece

2шт.

18

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

19

235151A4

TUBE

Left Hand

1шт.

20

235149A3

TUBE

Left Hand

1шт.

21

257320A2

HOSE ASSY.

910 mm (35-7/8 in)

2шт.

22

257319A2

HOSE ASSY.

850 mm (33-1/2 in)

2шт.

23

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

24

255245A1

BLOCK

2шт.

25

257310A4

TUBE,570, 51 mm Length

Right Hand

1шт.

26

257315A4

TUBE,570, 51 mm Length

Left Hand

1шт.

27

257317A1

PROTECTOR

Right Hand, See Note

1шт.

27

319395A1

PROTECTOR

Right Hand, Replaces 257317A1

1шт.

28

257318A1

PROTECTOR

Left Hand, See Note

1шт.

28

319394A1

PROTECTOR

Left Hand, Replaces 257318A1

1шт.

29

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 218-5059

1шт.

Note: Add Two Holes For Mounting In 257317A1 or 257318A1 Covers When Replacing 279485A2 Cylinder With 308258A1 Cylinder.

1шт.

33

257308A4

TUBE,465, 113 mm Length

Right Hand

1шт.

34

257312A4

TUBE,465, 55 mm Length

Left Hand

1шт.

35

197508A1

HOLDER

2шт.

36

197509A1

PROTECTOR

2шт.

37

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

38

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

39

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 40

2шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 218-5106

1шт.

42

103-3398

SNAP RING,#X98, .822" Dia, E-Type

8шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
