(07-06) - PUMP BRAKE

Запчасти Case IH 90XT (07-06) - PUMP BRAKE (07) - BRAKES

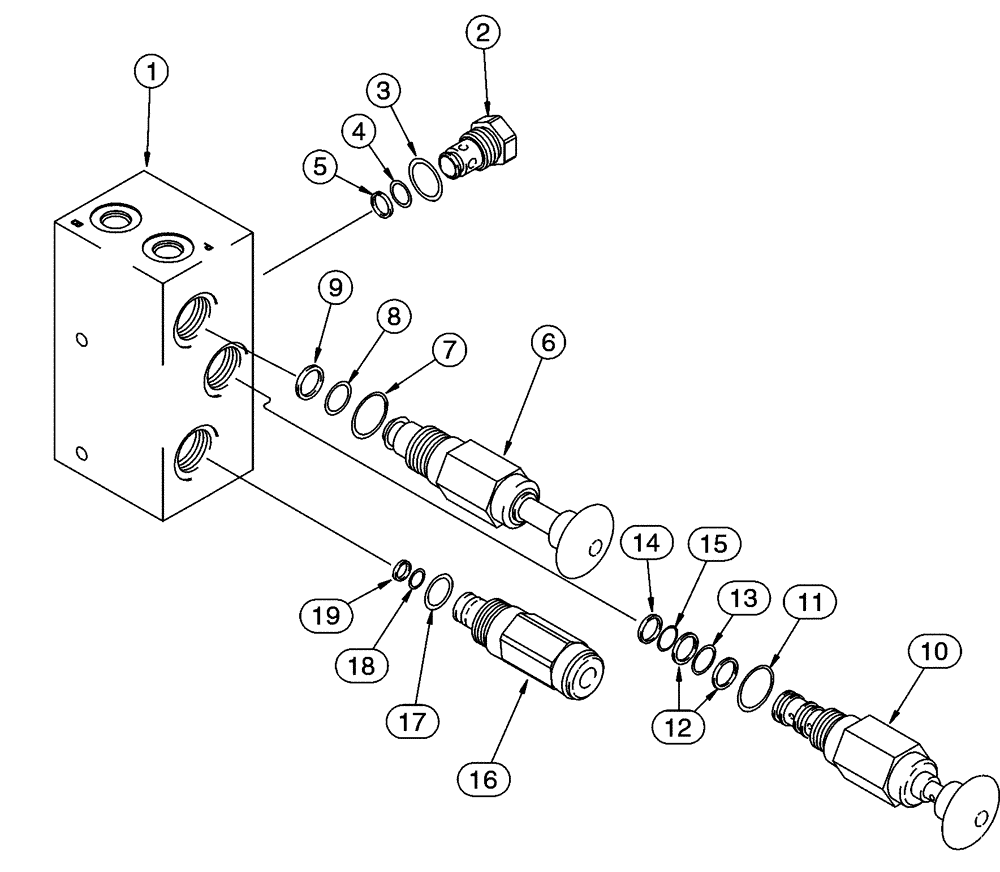

Схема запчастей Case IH 90XT - (07-06) - PUMP BRAKE (07) - BRAKES
17
13
10
2
11
16
9
1
19
6
7
8
12
3
4
14
15
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

281117A2

PUMP

Consists Of: 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

120459A1

VALVE,3/4" - 16

Consists Of: 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE Check

1шт.

1542831C1

SEAL KIT

Consists Of: 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

295299A1

PUMP

Hand Operated, Consists Of: 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PUMP

1шт.

1542830C2

SEAL KIT

Replaces 295300A1, Consists of 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

295301A1

BY-PASS VALVE

Consists Of: 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE By-Pass

1шт.

295302A1

SEAL KIT

Consists Of: 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

295303A1

VALVE POPPET

Consists Of: 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE Relief

1шт.

1542831C1

SEAL KIT

Consists Of: 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

RING Backup

1шт.
