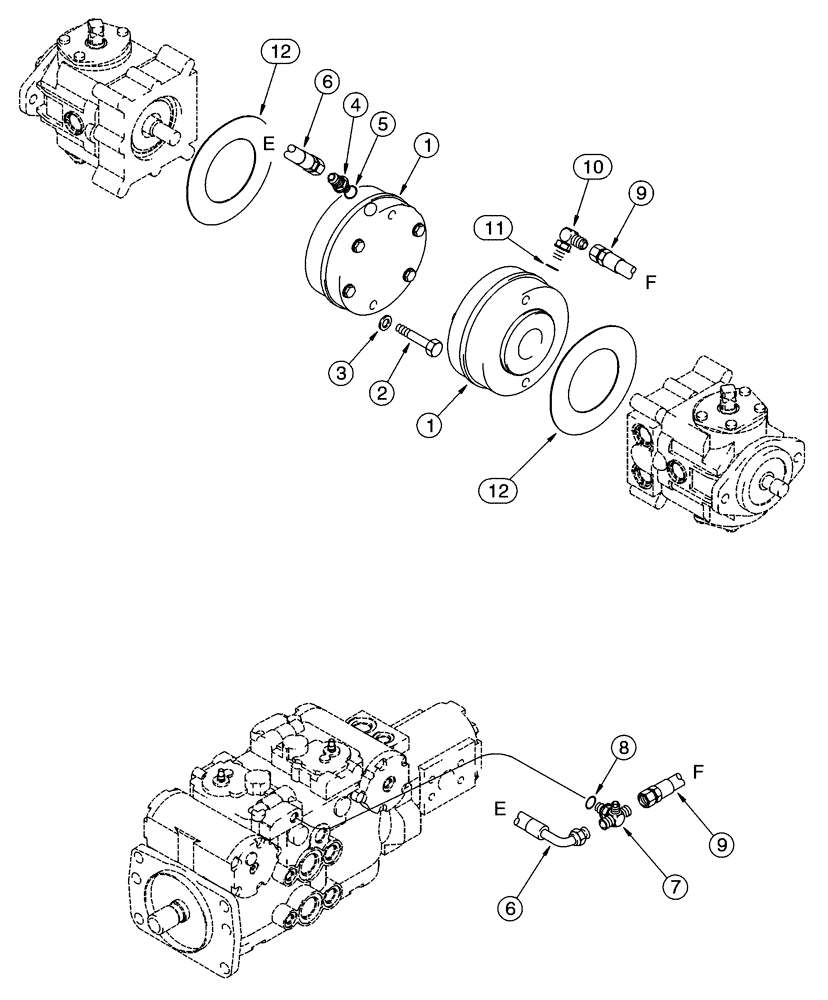

Запчасти Case IH 90XT (07-02) - HYDRAULIC CIRCUIT, BRAKE, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (07) - BRAKES

1

320892A1

BRAKE

See Figure 7-1

2шт.

2

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

253264A1

HOSE

550 mm (21-5/8 in), Pump To Brake, Right Hand

1шт.

7

253266A1

TEE

Includes: Ref. 8, See Page(s) 4-29, Ref. 9

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

253265A1

HOSE

455 mm (18 in), Pump To Brake, Left Hand

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj or, Includes: 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

320891A1

GASKET,2.4mm Thk

2шт.

Part of P/N 218-5053

1шт.

Part of P/N 253266A1

1шт.

Part of P/N 218-5103

1шт.
