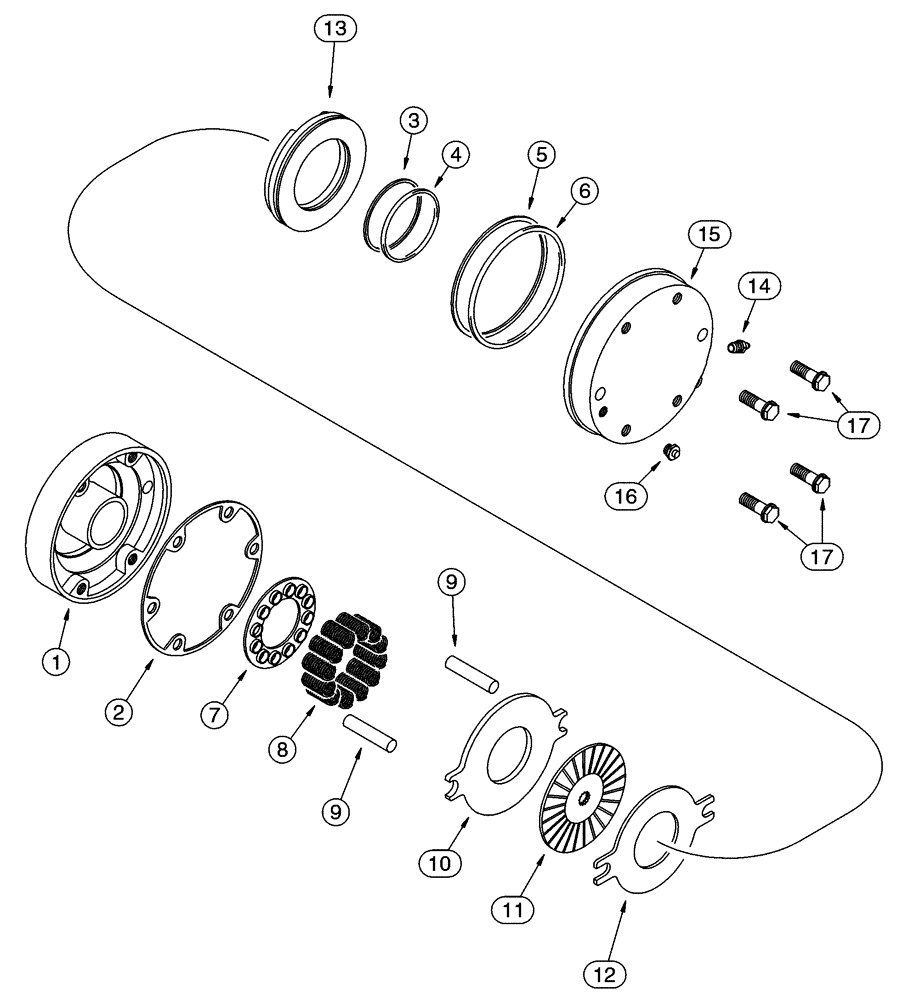

Запчасти Case IH 90XT (07-01) - BRAKE (07) - BRAKES

320892A1

BRAKE

Replaces: 143920A1, Consists Of: 1 - 17

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

251546A1

SEAL KIT

Consists Of: 2 - 6

1шт.

2

232905A1

GASKET,1.7mm Thk

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

RING Backup

1шт.

7

232906A1

RETAINER

1шт.

251544A1

SET OF PARTS

Consists Of: 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING Compression

12шт.

9

NSS

NOT SOLD SEPARAT

PIN

2шт.

10

NSS

NOT SOLD SEPARAT

DISC, Brake, Primary

1шт.

11

232909A1

BRAKE DISC

DISC, BRAKE

1шт.

12

NSS

NOT SOLD SEPARAT

DISC, Brake

1шт.

13

232911A1

PISTON

1шт.

14

S109458

SCREW

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE

1шт.

16

N14543

VALVE, ENG EXHAUST,

VALVE EXHAUST

1шт.

17

232920A1

SCREW

4шт.
