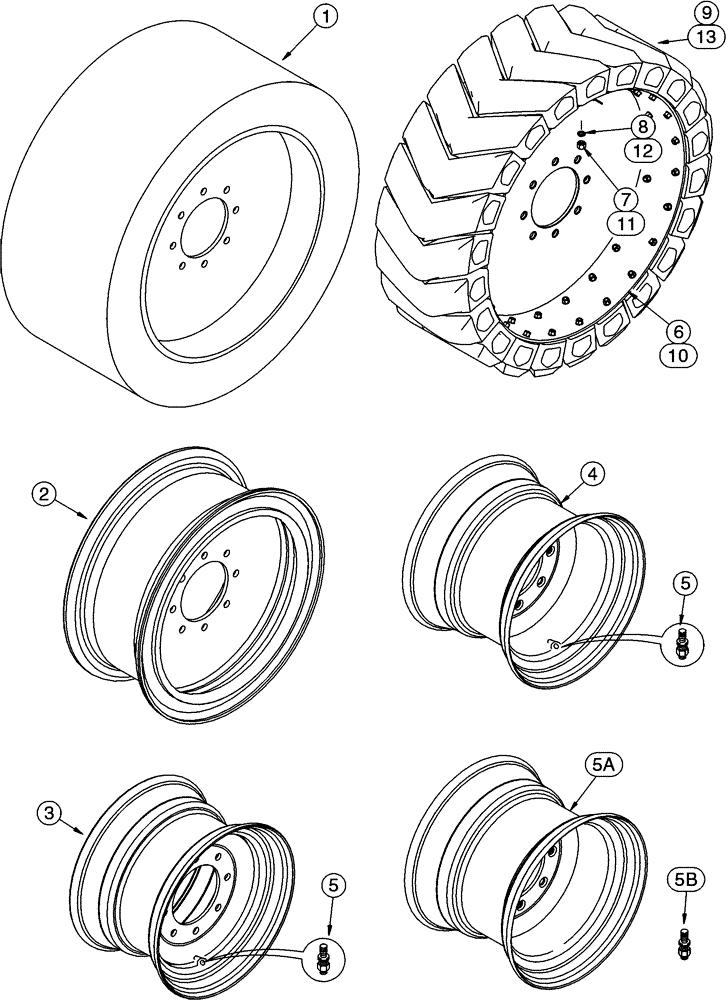

Запчасти Case IH 90XT (06-29) - WHEELS (06) - POWER TRAIN

1

198151A1

WHEEL

10 x 31, With Solid, Slick Tires, Machinery Item

4шт.

2

259442A3

RIM

WHEEL 7.5 - 20, Used With 33 x 12-20 inch Tire

4шт.

3

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

4

248048A2

RIM

WHEEL 16.5 x 12, Used With 33/15.50 x 16.5 inch Tire

4шт.

5

294579A1

VALVE STEM

Used With 3, 4

4шт.

5a

238584A1

RIM

WHEEL 12 x 16.5

4шт.

5b

T57461

VALVE STEM

4шт.

183310A1

WHEEL

12 x 16.5, Left Hand, Consists Of: 6 - 9

2шт.

6

291333A2

RIM

WHEEL 12 x 16.5, Left Hand, Replaces: 291333A1

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

88шт.

9

291332A1

CLAMP

22шт.

183308A1

WHEEL

12 x 16.5, Right Hand, Consists Of: 10 - 13

2шт.

10

291334A2

RIM

WHEEL 12 x 16.5, Right Hand, Replaces: 291334A1

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

88шт.

13

291332A1

CLAMP

22шт.

14

244234A1

RIM

WHEEL 8.25 x 15, Left Hand, Not Illustrated

2шт.

15

244233A1

RIM

WHEEL 8.25 x 15, Right Hand, Not Illustrated

2шт.

Purchase Tires Locally

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

88шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

88шт.
