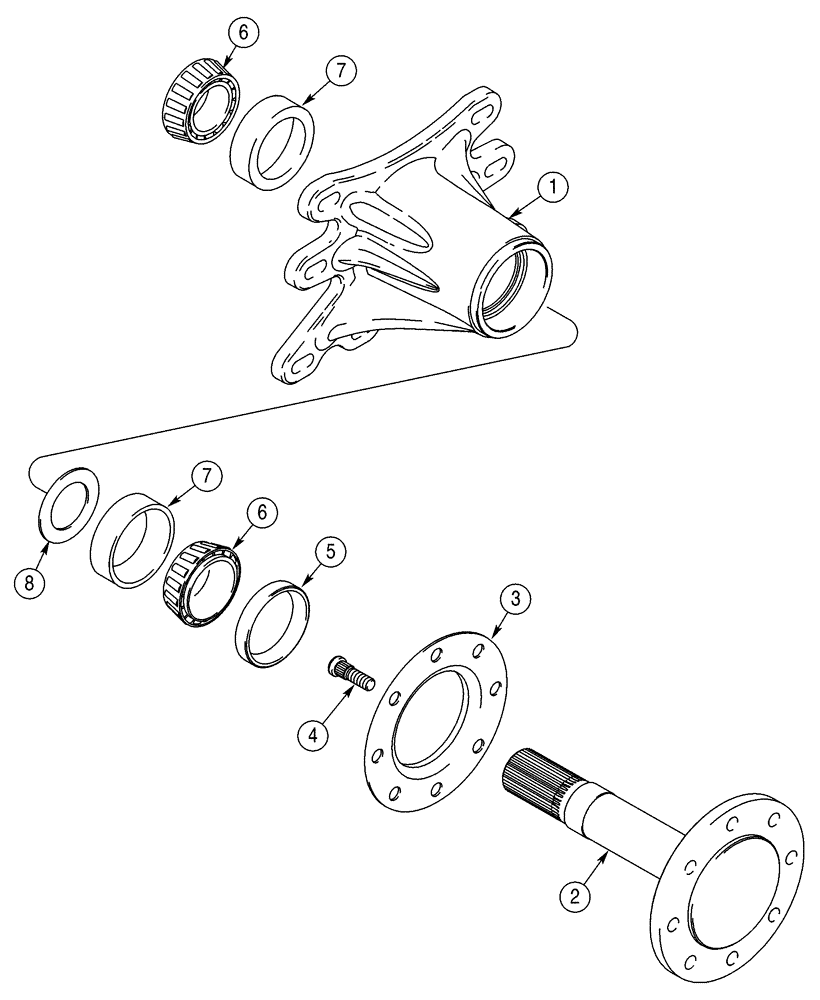

Запчасти Case IH 90XT (06-28) - AXLE ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSY, Incl. 1 - 9

4шт.

1

175003A1

HUB

Prior to JAF0298848 (NA), Prior to JAF0274237 (EU)

1шт.

1

386800A2

HUB ASSY.

Hub With Bearing Cups; After JAF0298848 (NA), After JAF0274237 (EU); Incl. Ref. 1, 7, 8

1шт.

1

339429A2

HUB

After JAF0298848 (NA), After JAF0274237 (EU); Replaces 339429A1

1шт.

2

175760A1

SHAFT

Incl. 3 - 4 (191048A2 Stud), Prior to JAF0298848 (NA), Prior to JAF0274237 (EU)

1шт.

2

339428A3

AXLE

Incl. 3 - 4 (87618650 Stud), JAF0298848 and After (NA), JAF0274237 and After (EU)

1шт.

3

175762A1

PROTECTOR

1шт.

4

191048A2

STUD

M16; Plain; Grade 9.8; If Used

8шт.

4

87618650

STUD

M16; Phosphate Coated; Grade 9.8; If Used

8шт.

5

291134A1

SEAL,76.2mm ID x 110.21mm OD x 12.7mm Thk

Used With 175003A1

2шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Used With 339429A1

1шт.

6

227488A1

ROLLER BEARING,63.5mm ID x 22mm W

2шт.

7

163044

BEARING CUP,110.03mm OD x 18.82mm W

Replaces 227489A1

2шт.

8

197804A1

WASHER,64.5mm ID x 100.5mm OD x 3.2mm Thk

2шт.

9

178888A1

SPACER

Used With 175003A1

1шт.

10

384646R1

PASTE

Not Illustrated

1шт.

NSS

NOT SOLD SEPARAT

GREASE, Replaces 331-237, Not Illustrated

1шт.
