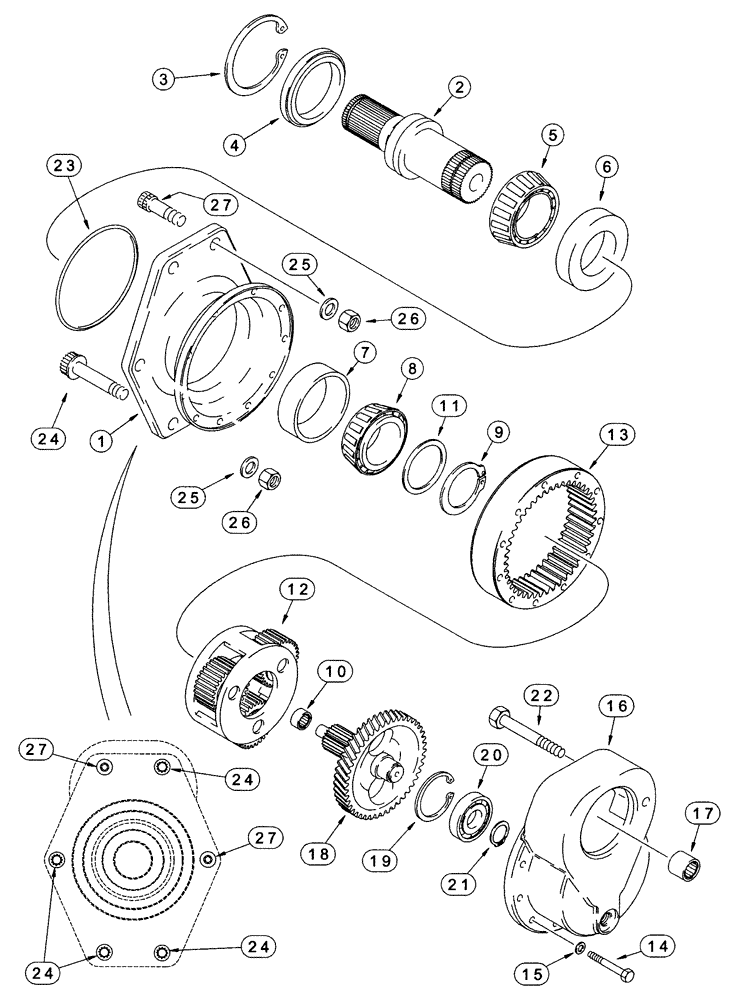

Запчасти Case IH 90XT (06-26) - GEAR BOX MOUNTING, GROUND DRIVE (06) - POWER TRAIN

234016A2

REDUCER

Consists Of: 1 - 21

2шт.

234016A2R

90XT

REMAN-TRANSMISSION

2шт.

234016A2C

Return Number

CORE-TRANSMISSION

1шт.

1

232942A1

HUB

1шт.

2

232944A1

SHAFT

1шт.

3

232979A1

RING, SNAP

RING SNAP

1шт.

4

232981A1

SEAL

1шт.

5

66117R91

BEARING

1шт.

6

40437

BEARING, CUP

1шт.

7

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

1шт.

8

T15892

TAPERED BEARING,2.625" ID x 0.866"

1шт.

9

232982A1

SET OF PARTS

1шт.

10

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

1шт.

11

237877A1

THRUST WASHER

1шт.

12

232938A1

PINION CARRIER

No Service Parts

1шт.

13

237876A1

PINION

1шт.

14

61-33856

HEX SOC SCREW,3/8"-16 x 3 1/2"

3/8 x 3-1/2

10шт.

15

N6353

WASHER

8шт.

16

232933A1

COVER

1шт.

17

F62094

NEEDLE BEARING

1шт.

18

232927A1

PINION

1шт.

19

100-22281

SNAP RING,2.835", Int, #281

1шт.

20

700510R91

BALL BEARING

1шт.

21

100-16118

SNAP RING,#118, Ext

1шт.

22

863-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

M12 x 100; 12.9

4шт.

23

238-5433

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

2шт.

24

319619A1

BOLT,M16 x 2 x 60mm, Cl 10.9

M16 x 60; 10.9, Use Loctite No. 242

8шт.

25

496-81004

WASHER,41/64" x 1.047" x .134", HDN

41/64 x 1-15/32 x 5/32

12шт.

26

832-41316

NUT,M16 x 2, Cl 10

12шт.

27

255034A1

HEX SOC SCREW

M16 x 60, Use Loctite No. 242

1шт.
