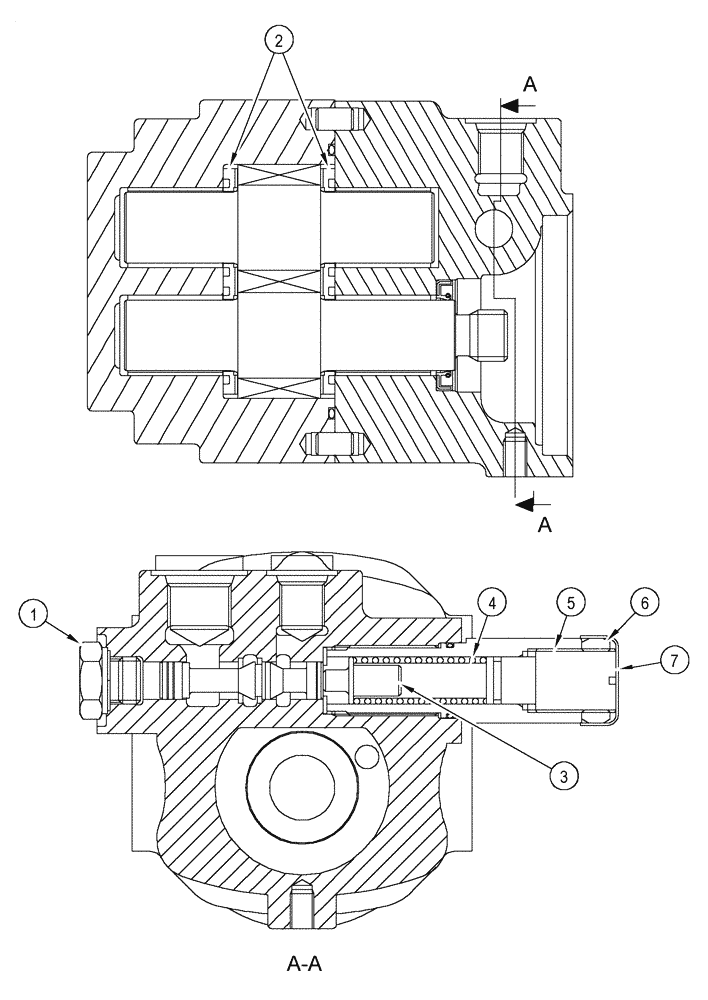

Запчасти Case IH 90XT (06-22) - PUMP, GEAR (06) - POWER TRAIN

291137A2

PUMP, HYDRAULIC

35 cc, If Equipped, See Figure 6-15, Includes: Ref. 1- 8

1шт.

291162A2R

90XT, Reman for New P/N 291137A2

REMAN-HYD PUMP

1шт.

291162A2C

Return Number

CORE-HYDRAULIC PUMP

1шт.

291162A2

PUMP

40 cc, If Equipped, See Figure 6-15, Includes: Ref. 1- 8

1шт.

291162A2R

90XT

REMAN-HYD PUMP

1шт.

291162A2C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

292540A1

PLUG

No Longer Available, Order 300295A1

1шт.

2

292543A1

SET OF PARTS

Pressure Plate; No Longer Available, Order 291162A2 Pump Assembly

1шт.

3

292542A1

RETAINER

No Longer Available, Order 300295A1

1шт.

4

292536A1

SPRING

No Longer Available, Order 300295A1

1шт.

5

292537A1

SET SCREW

No Longer Available, Order 300295A1

1шт.

6

292538A1

LOCK NUT

No Longer Available, Order 300295A1

1шт.

7

292539A1

CAP

No Longer Available, Order 300295A1

1шт.

8

292544A1

SEAL KIT

Not Illustrated

1шт.

300295A1

SET OF PARTS

Consists Of: 1, 3, 4, 5, 6, 7

1шт.
