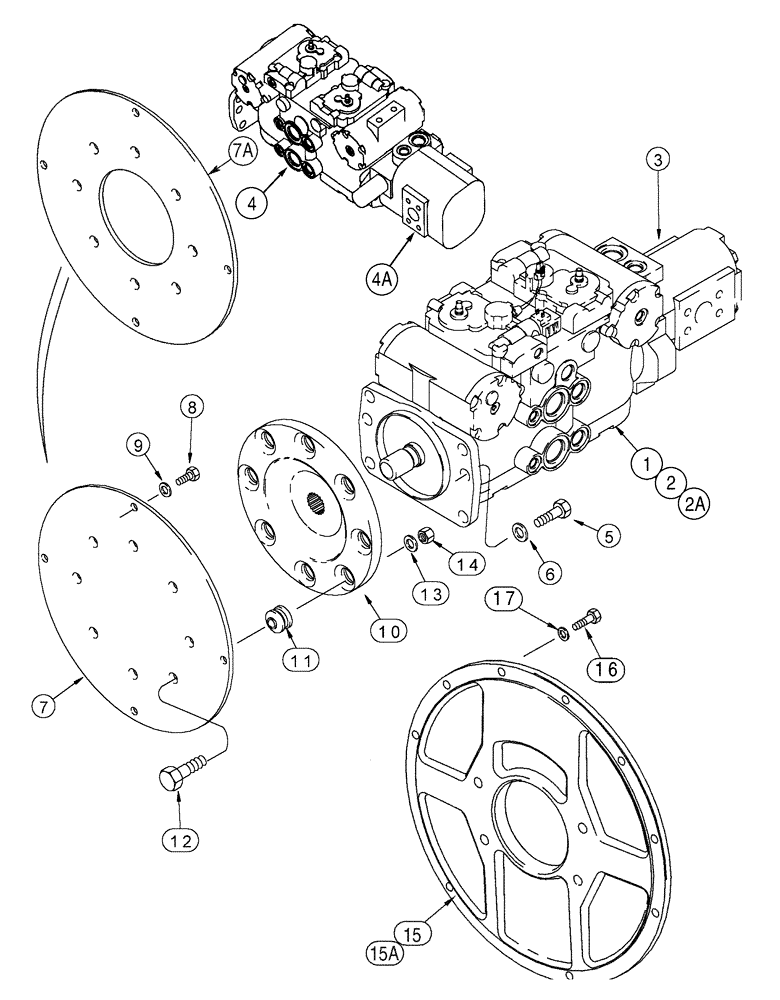

Запчасти Case IH 90XT (06-15) - PUMP, TANDEM MOUNTING (06) - POWER TRAIN

1

259624A1

PUMP, HYDRAULIC

Vendor Part Number M51-4525255, Includes: Ref. 3, Also Includes: 6-16 - 6-19, No Longer Available, Order 433903A1, Also Order 372446A1, See Figures 6-15, 6-18

1шт.

2

320270A2

PUMP

Vendor Part Number M51-4525260, Includes: 291137A2, 349475A1, Also Includes: 6-16 - 6-19, No Longer Available, Order 433903A1, Also Order 372446A1, See Figure 6-15, 6-18

1шт.

2a

357006A1

PUMP

Vendor Part Number M51-4525272, Includes: 291162A2, 357006A1, Also Includes: 6-16 - 6-19, No Longer Available, Order 433903A1, Also Order 372446A1, See Figure 6-15, 6-18

1шт.

2a

433903A1

PUMP

Vendor Part Number M51-4525013, Includes: 433906A1, 291162A2, Also Includes: 6-16 - 6-19

1шт.

2a

87297990

REMAN-HYD PUMP

Vendor Part Number M51-4525013, Includes: 433906A1, 291162A2, Also Includes: 6-16 - 6-19

1шт.

2a

87297991

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

291137A2

PUMP, HYDRAULIC

35 cc, See Figure 6-22, Used With 1, 2, No Longer Available, Order 291162A2, See Figure 6-15

1шт.

3

291162A2R

90XT, Reman for New P/N 291137A2

REMAN-HYD PUMP

1шт.

3

291162A2C

Return Number

CORE-HYDRAULIC PUMP

1шт.

4

349475A1

PUMP, HYDRAULIC

Vendor Part Number 4525263, Consists Of 6-16 - 6-19, No Longer Available, Order 433906A1, Also Order 372446A1

1шт.

4

357009A1R

REMAN-HYD PUMP

Reman for new PN 349475A1

1шт.

4

357009A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

357009A1

PUMP

Vendor Part Number 4525275, Consists Of: 6-16 - 6-19, No Longer Available, Order 433906A1

1шт.

4

357009A1R

REMAN-HYD PUMP

90XT

1шт.

4

357009A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

433906A1

PUMP

Vendor Part Number 4525016, Consists Of: 6-16 - 6-19

1шт.

4

433906A1R

REMAN-HYD PUMP

90XT, Replaces Reman P/N 357009A1R

1шт.

4

433906A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4a

291162A2

PUMP

40 cc, See Figure 6-22, Used With 357006A1, 433903A1

1шт.

4a

291162A2R

90XT

REMAN-HYD PUMP

1шт.

4a

291162A2C

Return Number

CORE-HYDRAULIC PUMP

1шт.

5

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

H438922

LARGE PLATE

PLATE, LARGE No Longer Available, Order 404801A1

1шт.

7a

404801A1

LARGE PLATE

PLATE, LARGE

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

1шт.

11

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

8шт.

12

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

14

232-4117

LOCK NUT,7/16"-14, GC

8шт.

15

275087A3

SUPPORT

Six Hole Pattern, No Longer Used, Order 275087A4

1шт.

15a

275087A4

SUPPORT

Nine Hole Pattern

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

6-9шт.

18

372446A1

KIT

Not Illustrated

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6-9шт.
