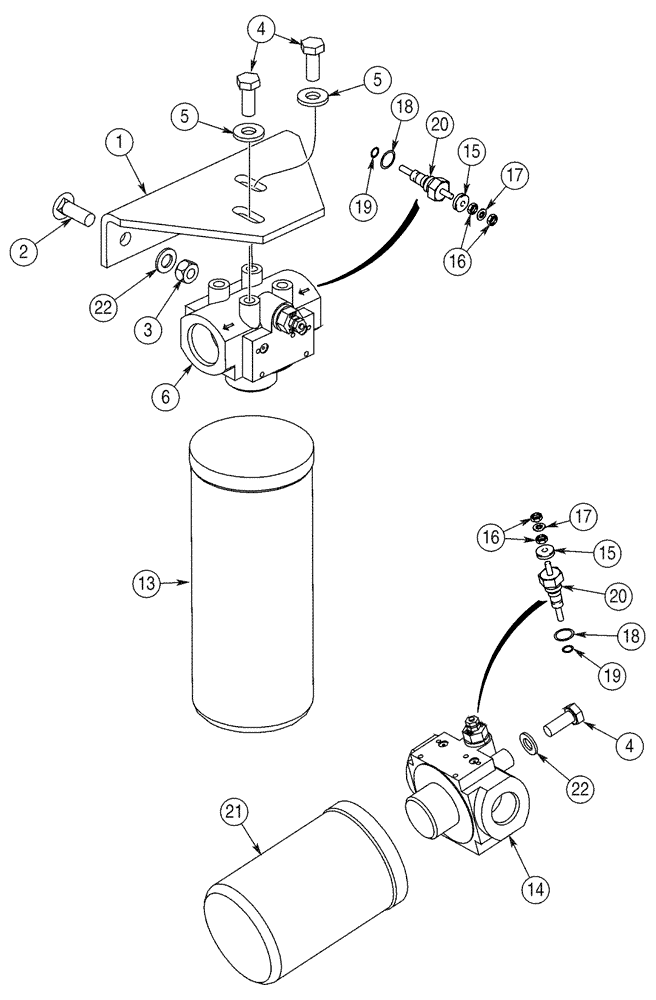

Запчасти Case IH 90XT (06-14) - FILTER ASSEMBLY MOUNTING, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (06) - POWER TRAIN

1

253706A1

ANGLE

1шт.

2

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

3

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

222756A2

FILTER ASSY

Return, Consists Of: 6 - 13

1шт.

6

222758A1

HEAD

1шт.

N13268

PRESSURE SWITCH

Consists Of: 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER Special, Red, White

1шт.

8

129-667

NUT,#10-32, LH

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

13

N9025

HYDRAULIC OIL FILTER

Replaces: N14232

1шт.

13

D126922

FILTER, ELEMENT

ELEMENT, FILTER Optional

1шт.

222757A1

FILTER ASSY

Charge, Consists Of: 14 - 21

1шт.

14

226664A1

HEAD

1шт.

N13268

PRESSURE SWITCH

Consists Of: 15 - 20

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER Special, Red, White

1шт.

16

129-667

NUT,#10-32, LH

2шт.

17

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

21

222759A1

HYDRAULIC OIL FILTER

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
