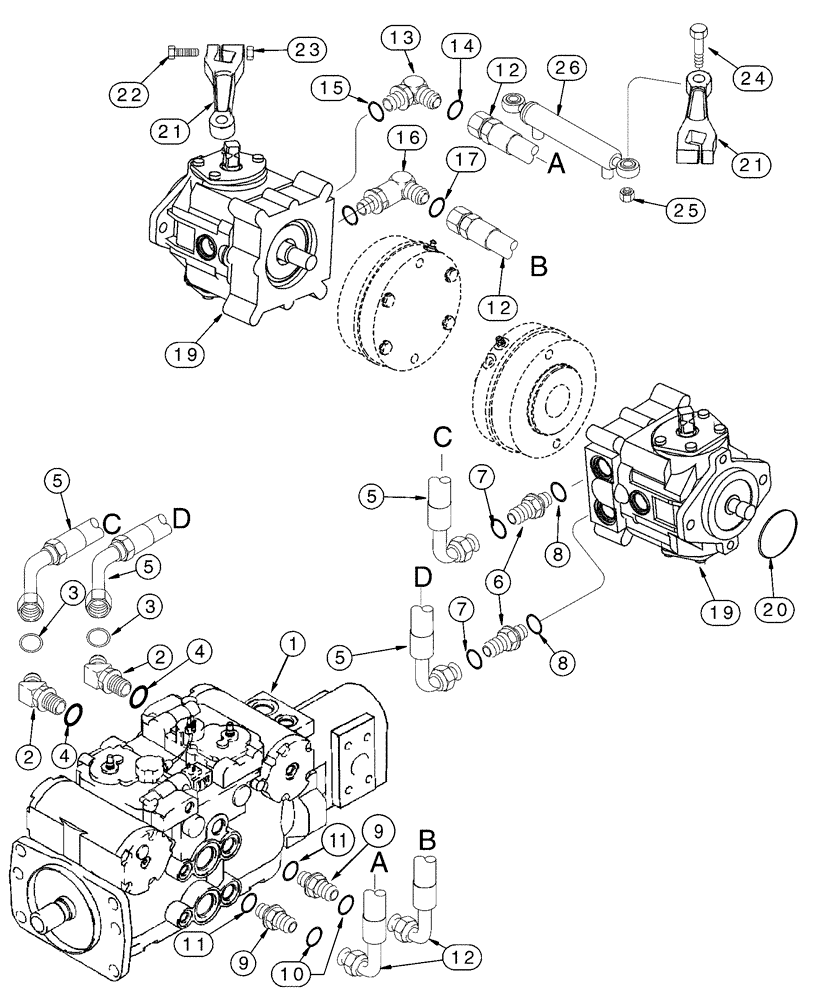

Запчасти Case IH 90XT (06-09) - HYDROSTATICS PUMP AND DRIVE MOTORS, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN JAF0274262- (06) - POWER TRAIN

1

433903A1

PUMP

See Figure 6-15

1шт.

2

201-318

ELBOW,45 Degree, 1 7/16"-12 x 1 5/16"-12. Adj, ORFS

1-7/16 fc x 1-5/16 or, Includes: Ref. 3, 4

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

257378A3

HYDRAULIC HOSE

407 mm (16 in), No Longer Available, Order 257378A4

2шт.

5

257378A4

HYDRAULIC HOSE,19.05mm ID x 420mm L

420 mm (16-1/2 in)

1шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 7, 8

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1-3/16 fc x 1-5/16 Or, Includes: Ref. 10, 11

2шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

283547A1

HOSE,19.05mm ID x 850mm L

2шт.

13

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 or, Includes: Ref. 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl 17, 18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

192899A3

MOTOR, HYDRAULIC

See Figure 6-24, 6-25

2шт.

19

192899A3R

REMAN-HYD MOTOR

90XT CASE SKID STEER LOADER

2шт.

19

192899A3C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

20

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

21

318532A1

LEVER

2шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

23

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

24

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

25

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

26

308242A1

CYLINDER ASSY.

32 ID x 38 mm strk, No Service Parts

2шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
