Запчасти Case IH 85XT (08-02A) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

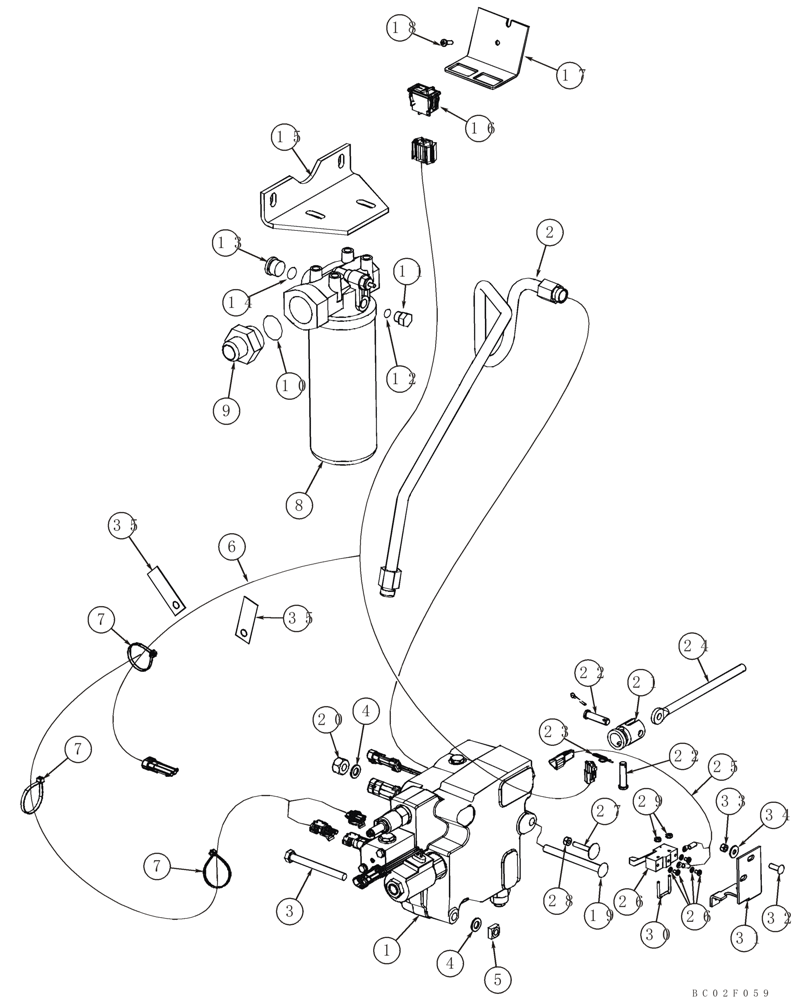

Схема запчастей Case IH 85XT - (08-02A) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS
25
29
bc02f059
31
6
27
23
3
19
28
34
5
16
33
8
7
26
7
7
14
20
24
35
13
22
18
32
2
10
30
15
11
35
21
17
22
26
12
4
9
1
4

Артикул

Название

Примечание

Количество

1

413370A3

VALVE

Self Leveling; Replaces 413370A2

1шт.

1

87431792

VALVE

Self Leveling; Replaces 413370A3

1шт.

2

418986A1

HYD TUBE

1шт.

3

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

5

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10 x 1.5

1шт.

6

419759A1

HARNESS

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

8

445674A1

FILTER ASSY

Incl. 8A -8I; Component Parts Not Illustrated Separately

1шт.

8a

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

N6755

PRESSURE SWITCH

Restriction; Incl. N6941

1шт.

N6941

KIT

Restriction Indicator Repair; Incl. 2 - 5

1шт.

8b

129-667

NUT,#10-32, LH

2шт.

8c

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

8e

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

8f

NSS

NOT SOLD SEPARAT

Indicator

1шт.

8g

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

N9025

HYDRAULIC OIL FILTER

Incl. 8, 9

1шт.

8h

NSS

NOT SOLD SEPARAT

Element

1шт.

8i

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

9

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. 12

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

86625138

PLUG,7/18" - 14

Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

445764A1

ANGLE

1шт.

16

411173A1

SWITCH

Rocker

1шт.

17

429082A1

ANGLE

Mounting

1шт.

18

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

19

811-10110

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 110mm, Cl 8.8

M10 x 110

1шт.

20

832-41410

NUT,M10 x 1.5, Cl 10

See Figure 09-43D

1шт.

21

430108A2

COLLAR

Replaces 430108A1

1шт.

22

427-5125

CLEVIS PIN,5/16" x 1 1/4"

Clevis

2шт.

23

417860A1

COTTER PIN

Cotter

1шт.

24

417364A1

LINK

1шт.

25

447951A1

HARNESS

Self Level Switch; Used with P137363

1шт.

26

413225A1

SWITCH

No Longer Available; Order 444932A1

1шт.

26

444932A1

SWITCH

No Longer Available; Order D137363

1шт.

26

D137363

SWITCH

1шт.

27

448853A1

CAPSCREW,Elevator, 1/4" - 20 x 38.1 mm, Gr 2, Full Thd

1/4 - 20

1шт.

28

425-104

NUT,1/4"-20, Cl 5

1шт.

29

193-1003

NUT,Keps, w/LW,#6-32

2шт.

30

H435814

U-BOLT

1шт.

31

419096A1

ANGLE

No Longer Available; Order 444935A1

1шт.

31

444935A2

ANGLE

Replaces 419096A1

1шт.

32

811-6020

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8

M6 x 20

2шт.

33

832-41406

NUT,M6 x 1, Cl 8

M6

2шт.

34

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

35

A37179

CLIP

2шт.

8d

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
