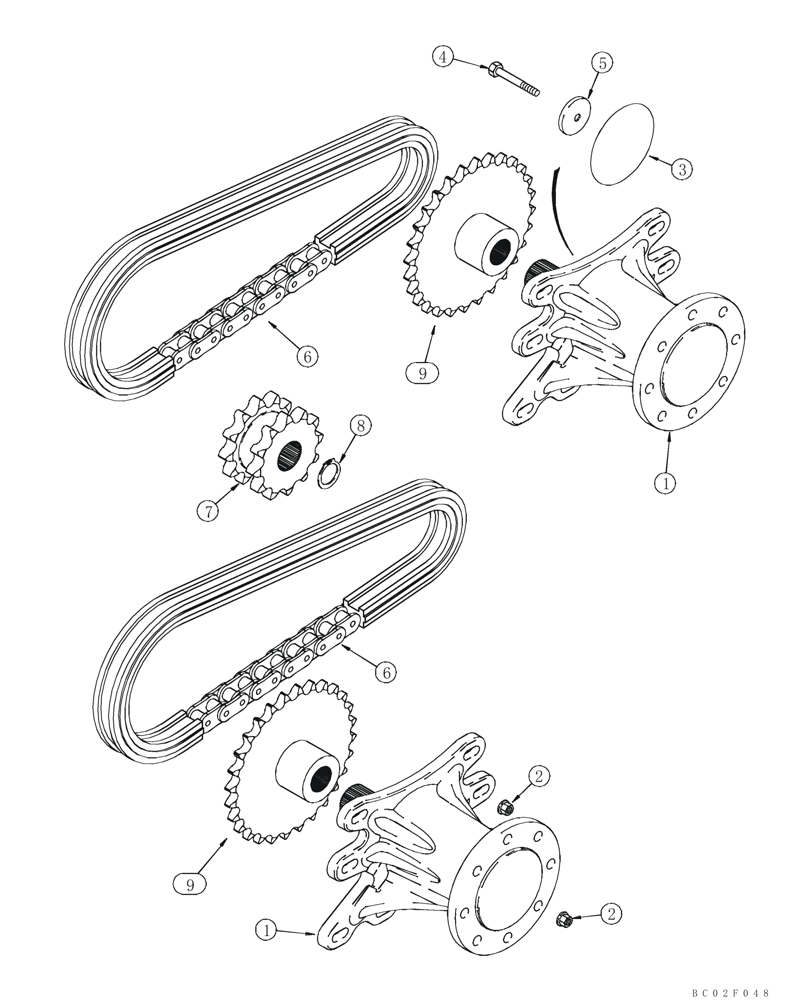

Запчасти Case IH 85XT (06-13) - DRIVE LINE (Jul 26 2010 1:44PM) (06) - POWER TRAIN

1

339431A2

AXLE

See Figure 06-14

4шт.

339431A2R

REMAN-AXLE

REMANUFACTURED AXLE - NA Only

1шт.

339431A2C

CORE-AXLE

Return Number, AXLE - NA Only

1шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32-64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml; Blue

1шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

233112A1

CHAIN (CE)

100/56P

4шт.

7

379115A1

SPROCKET ASSY.

11T

2шт.

8

100-11212

SNAP RING,#212, Ext

2шт.

9

353168A1

SPROCKET ASSY.

28T

4шт.
