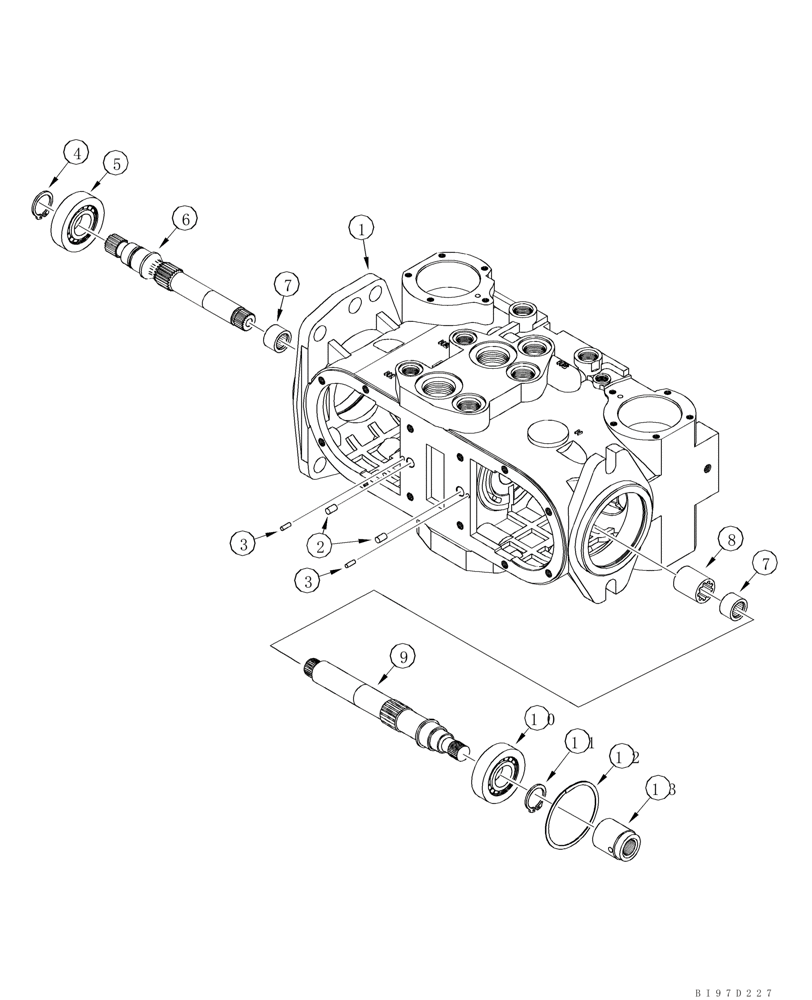

Запчасти Case IH 85XT (06-07) - PUMP, TANDEM - HOUSING (Aug 13 2010 12:23PM) (06) - POWER TRAIN

433902A1

PUMP

See Figure 06-06; Incl. 06-07 - 06-10

1шт.

87297988

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

87297989

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

1

373326A1

HOUSING

1шт.

2

F23124

AXLE PIN

Large

2шт.

3

233006A1

SPLIT PIN/SAFETY PIN

Small

2шт.

4

100-11137

SNAP RING,#137, Ext

1шт.

5

259484A1

BEARING, ROLLER

1шт.

6

233017A1

SHAFT

19T

1шт.

7

132391A1

BEARING, NEEDLE

2шт.

8

233019A1

COUPLING

22T

1шт.

9

259483A1

SHAFT

13T

1шт.

10

259485A1

BEARING, BALL

1шт.

11

100-11137

SNAP RING,#137, Ext

1шт.

12

259486A1

RING

1шт.

13

259494A1

COUPLING

13T

1шт.
