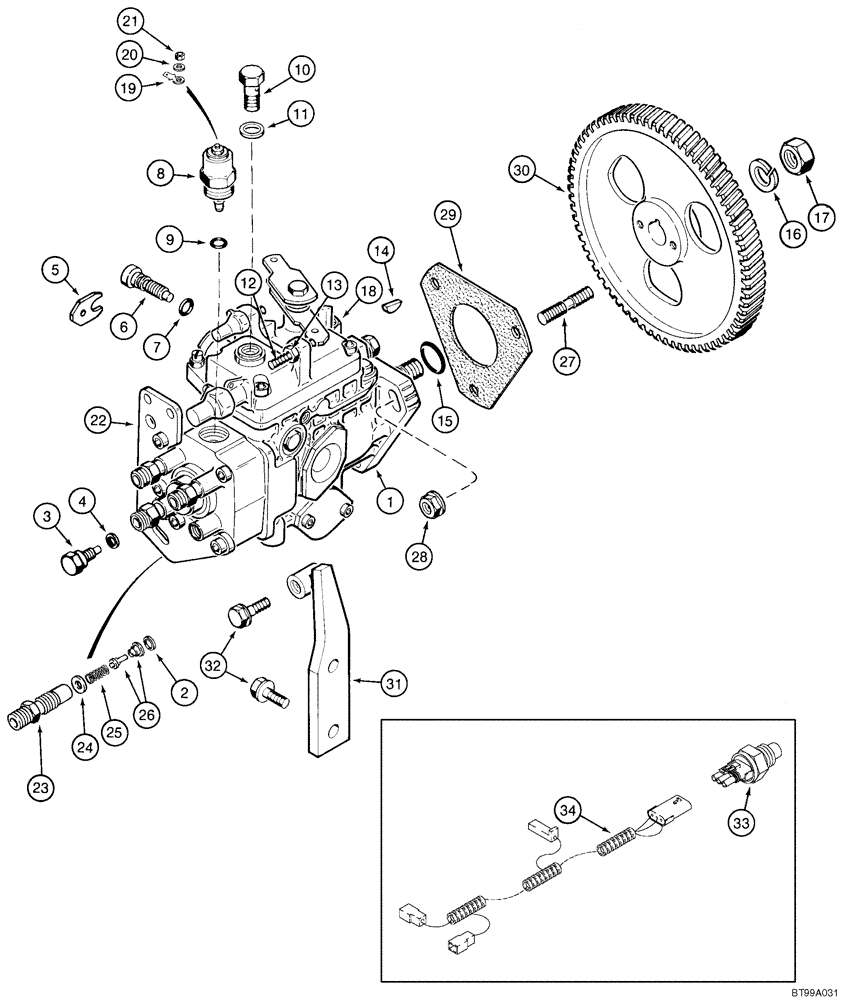

Запчасти Case IH 85XT (03-05) - FUEL INJECTION - PUMP AND DRIVE (Nov 3 2009 8:28AM) (03) - FUEL SYSTEM

REF

INSTRUCTION

4-390 EMISSIONS CERIFIED ENGINE

1шт.

JR935669

REMAN-INJECTION PUMP

Remanufactured; N.A. Only

1шт.

JC935669

CORE-INJECTION PUMP

1шт.

1

J935669

PUMP, FUEL INJECTION

PUMP, INJECTION Incl. 2 - 26

1шт.

1

J935671

PUMP

Incl. 2 - 26; Europe Only

1шт.

2

3079483R1

SCREW

4шт.

3

3079483R1

SCREW

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

1шт.

5

J904786

PLATE

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

8

A77753

SOLENOID

1шт.

9

3078363R1

O-RING

1шт.

10

J905465

BANJO BOLT

1шт.

11

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Replaces J935171

1шт.

12

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

1шт.

13

J904783

NUT

1шт.

14

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

15

J920393

SEAL

1шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

M14

1шт.

17

J903738

NUT

M14

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

20

J907481

WASHER

1шт.

21

J907480

NUT

1шт.

22

J905696

SUPPORT

1шт.

23

J910794

FITTING

4шт.

24

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

4шт.

25

J910796

SPRING

4шт.

26

J910795

BY-PASS VALVE

4шт.

27

J902501

STUD

M8 x 48

3шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

29

J931607

GASKET

Mounting

1шт.

30

87590645

GEAR

Drive Gear; Replaces J936021

1шт.

31

J905313

LEVER

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

33

87608380

SENSOR,1/2" - 14

Temperature Sensor; Replaces J915945

1шт.

34

J918364

HARNESS

1шт.
