Запчасти Case IH 85XT (03-01) - FUEL LINES (Apr 5 2011 12:28PM) (03) - FUEL SYSTEM

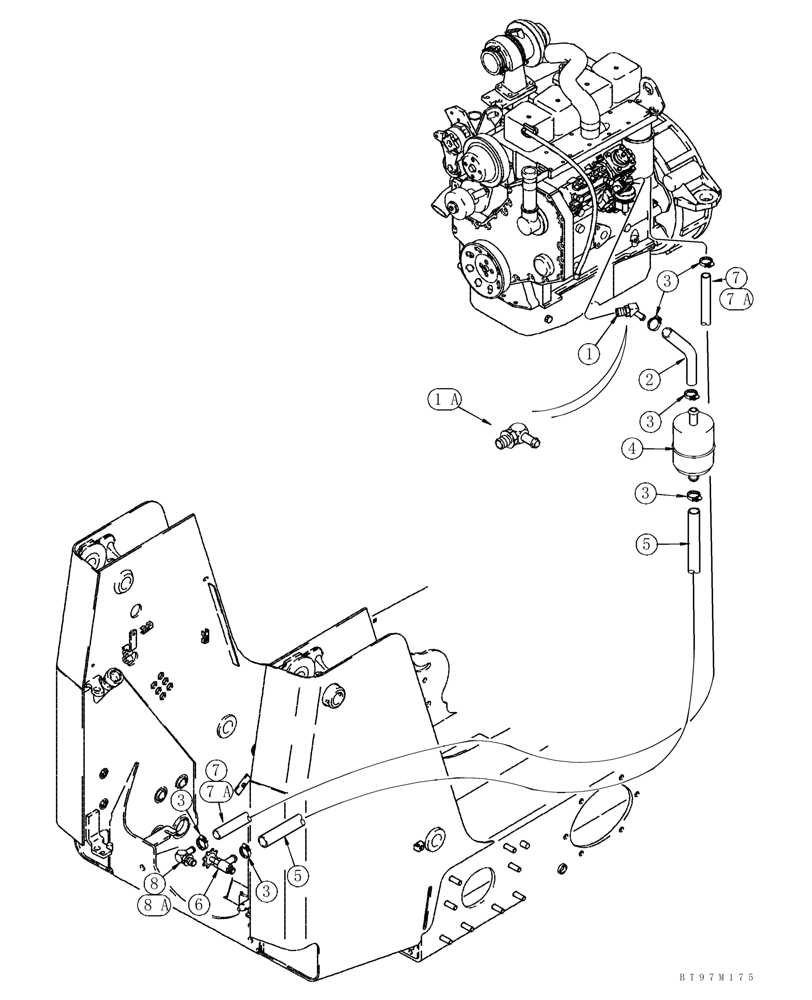

Схема запчастей Case IH 85XT - (03-01) - FUEL LINES (Apr 5 2011 12:28PM) (03) - FUEL SYSTEM
5
6
5
3
3
8
8a
2
3
7a
3
7
3
7
4
bt97m175
1a
1
7a

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

1a

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT

1шт.

2

D138967

FUEL HOSE

80 mm (3-1/4 in); Cut From A21561X

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

4

D139225

FILTER, FUEL

In-Line

1шт.

5

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in)

1шт.

6

H434805

VALVE

Shut-Off; For Additional Fuel Shut Off Valve For 75XT Models With High-Flow Hydraulics , See Figure 08-19, Ref 15, 16, 17

1шт.

7

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

1шт.

8

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

Выбрано товаров: 9
