Запчасти Case IH 85XT (02-14) - CAMSHAFT (02) - ENGINE

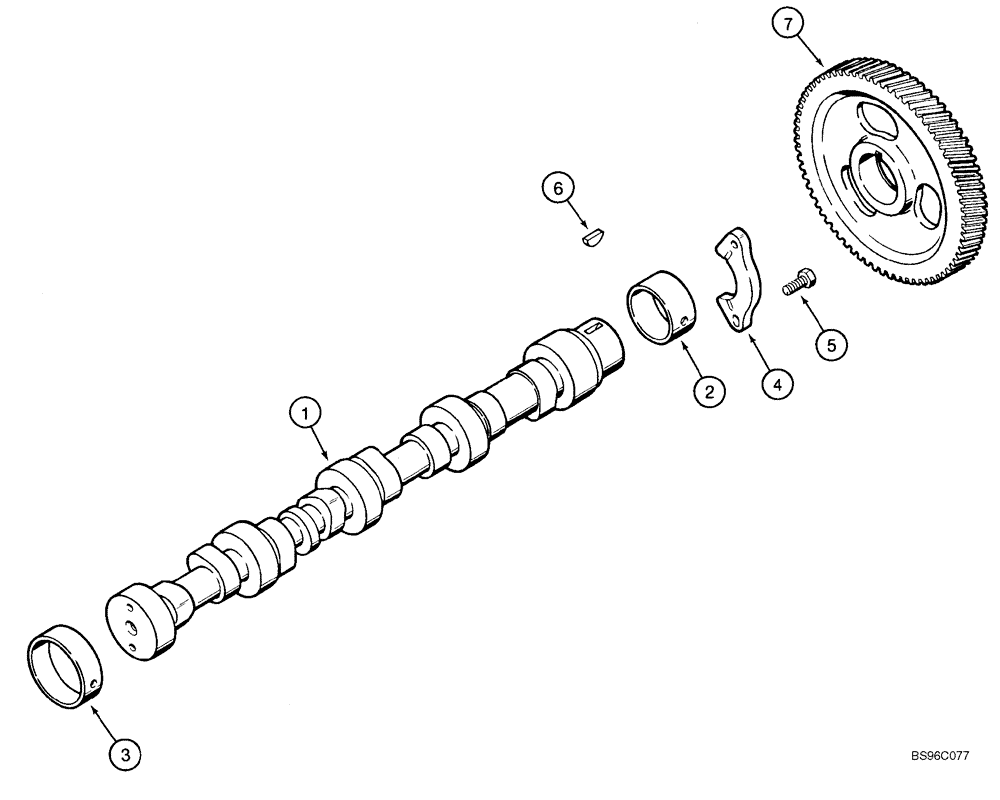

Схема запчастей Case IH 85XT - (02-14) - CAMSHAFT (02) - ENGINE
5
2
1
4
6
3
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

J929039

CAMSHAFT

1шт.

J929039R

REMAN-CAMSHAFT

75XT ASN JAF0318922 (NA) JAF0352169 (EU), 85XT ASN JAF0352234 (NA) JAF0352715 (EU), 90XT ASN JAF0320050 (NA) JAF0274262 (EU), 95XT ASN JAF0311357 (NA) JAF0274360 (EU), ALL SKID STEER LOADER

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

Front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

Intermediate And Rear; Service Repair Only

4шт.

4

J927155

SUPPORT

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

7

J929030

PINION

1шт.

Выбрано товаров: 10
