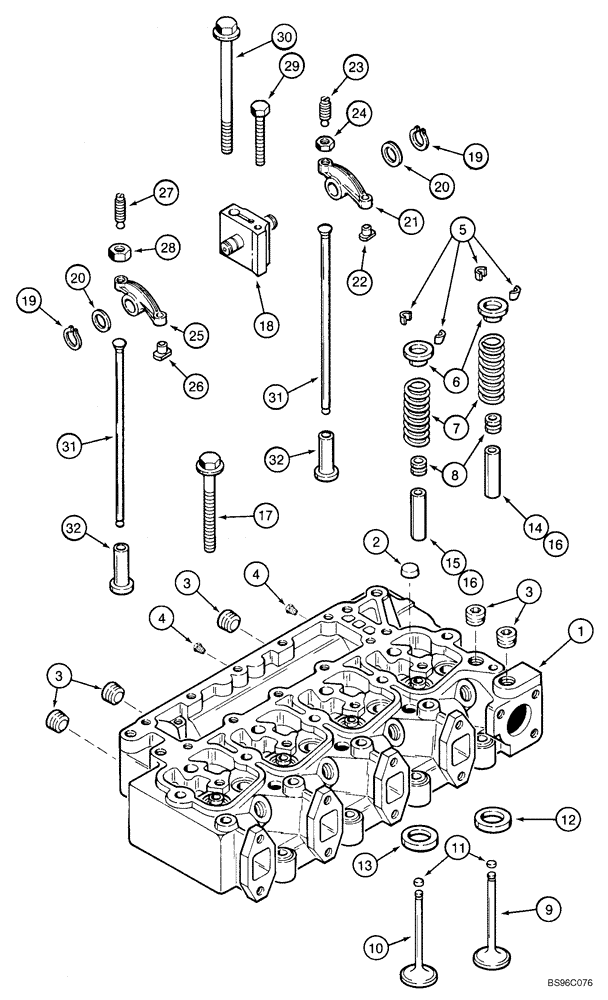

Запчасти Case IH 85XT (02-13) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

JR933494

REMAN-CYLINDER HEAD

Remanufactured; N.A. Only

1шт.

JC933494

CORE-CYLINDER HEAD

Return Number

1шт.

J933494

HEAD (CYLINDER)

Incl. 1 - 10

1шт.

1

J933419

HEAD (CYLINDER)

Incl. 2

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

J900250

SCREW

16шт.

6

J935038

RETAINER

8шт.

7

J932453

SPRING

8шт.

8

J921640

SEAL

8шт.

9

J920867

VALVE

Intake

4шт.

10

J920868

VALVE

Exhaust

4шт.

11

J910412

WEAR PAD

Intake And Exhaust; Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake; Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust; Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD; Intake; Service Repair Only; Ream To Fit

4шт.

15

J904409

GUIDE

14 mm OD; Exhaust; Service Repair Only; Ream To Fit

4шт.

16

J906206

GUIDE

11 mm OD; Intake And Exhaust; Service Repair Only; Ream To Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Incl. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

24

A77902

NUT

3/8 - 24 NF

1шт.

25

J910810

ROCKER

Incl. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.
