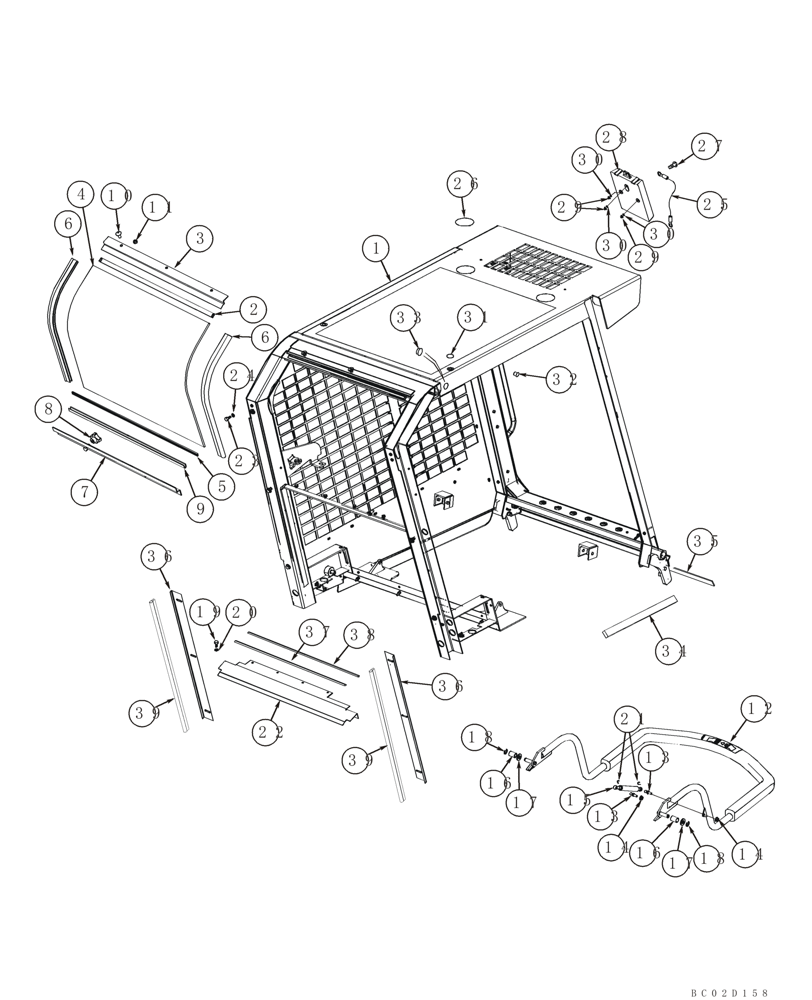

Запчасти Case IH 85XT (09-26) - CANOPY, ROPS - FRAME AND SEAT BAR (Apr 9 2010 1:58PM) (09) - CHASSIS

REF

INSTRUCTION

MODELS WITH FLOOR HEATER AND MODELS WITHOUT HEATER

1шт.

1

432310A1

SERVICE KIT

ROPS; Order From WholeGoods; Incl. Decals; Incl. 2 - 11

1шт.

2

321274A1

SEAL

1шт.

3

321268A1

CHANNEL

1шт.

4

321269A1

GLASS

Rear

1шт.

5

333988A1

SEAL

639 mm (25-5/32 in); Lower Rear Window

1шт.

6

321276A1

SEAL

Rear Window Edge

2шт.

7

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes

1шт.

8

362337A1

KNOB

2шт.

9

321275A1

SEAL

587 mm (23-1/8 in), Bottom Glass Seal

1шт.

10

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

12

419844A1

BAR

Seat

1шт.

13

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

14

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

15

189787A2

SHOCK ABSORBER

1шт.

16

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

18

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

19

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

21

254307A1

CLIP

2шт.

22

292190A2

COWL

Hood

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Manual, Operators

1шт.

26

293887A1

COVER

70 mm (2-3/4 in); Models Without Lift Hooks; See Figure 09-28

2шт.

27

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

28

R46464

CASE

1-2шт.

29

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

30

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

31

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm (1 in); Gray

2шт.

32

353-402

PLUG,Dome, .375" hole, Nylon

1-2шт.

33

353-411

PLUG,Dome, 1.000" hole, Nylon

1-3шт.

34

313149A1

SEAL

355 mm (14 in); North American Only; Screen Frame; Models With Heater; See Figure 09-36

2шт.

35

313150A1

SEAL

774 mm (30-1/2 in), Toe Guard; North American Only; Toe Guard; Models With Heater; See Figure 09-36

1шт.

36

280476A2

ANGLE

ROPS to Frame Seal Holder; European Models

2шт.

37

315083A1

SEALING STRIP

610 mm (40 inch); Europe Only; Window Frame

1шт.

38

275066A1

SEAL

Hood Extension Panel

1шт.

39

280491A1

SEAL

2шт.

353-400

PLUG,Dome, .250" hole, Nylon

Models with top window; See Figure 09-35

2шт.
