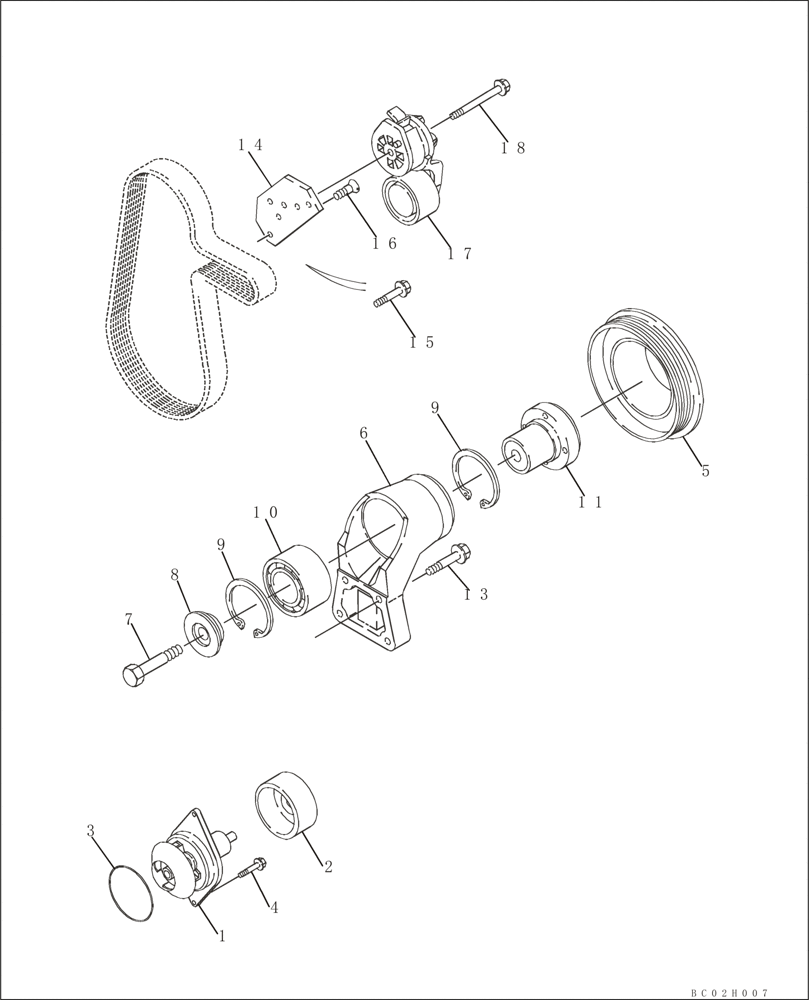

Запчасти Case IH 85XT (02-07) - WATER PUMP SYSTEM (JAN 12 2012 9:51AM) (02) - ENGINE

REF

INSTRUCTION

4-390 EMISSSIONS CERTIFIED ENGINE

1шт.

J286277

PUMP, WATER

Incl. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

75XT ASN JAF0318922, 85XT ASN JAF0352234, 90XT ASN JAF0320050, 95XT ASN JAF0311357

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

N.A. Only

1шт.

5

87739401

PULLEY,207.26mm OD

Europe Only; Replaces J914461

1шт.

6

J911922

SUPPORT ASSY.

Incl. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

14

J925207

SUPPORT

N.A. Only

1шт.

14

J925275

SUPPORT

Europe Only

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1-2шт.

17

J936203

BELT TENSIONER

1шт.

18

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

M10 x 70; 10.9; N.A. Only

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Europe Only

1шт.
