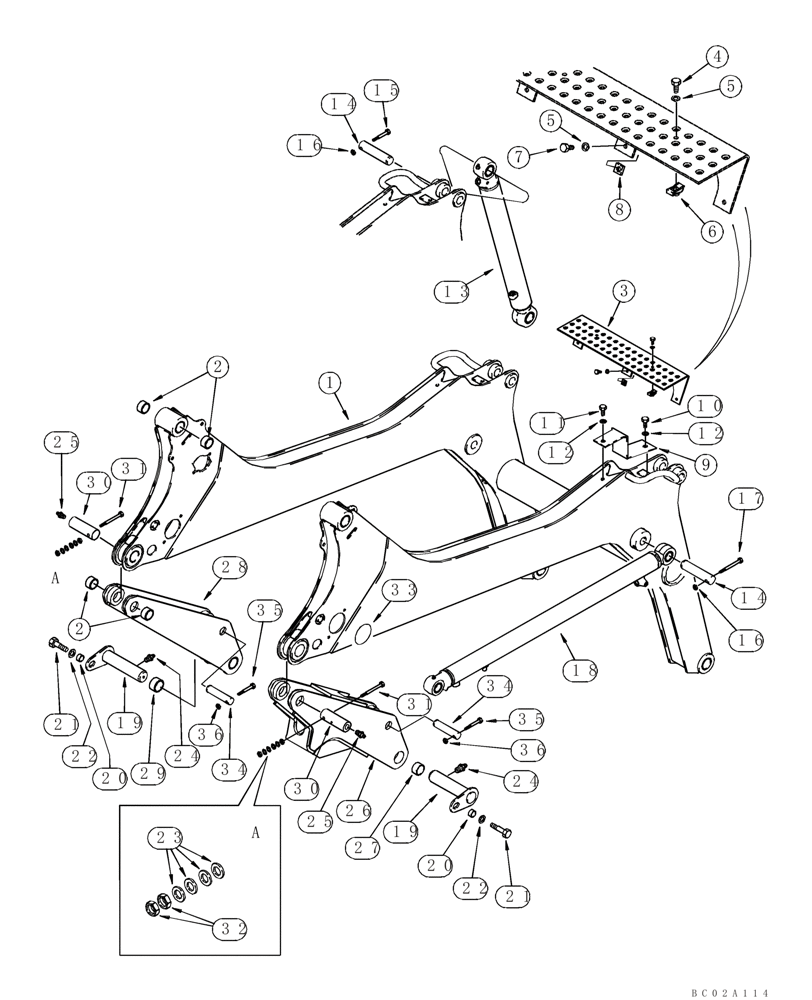

Запчасти Case IH 85XT (09-01) - FRAME - LOADER LIFT (JAN 25 2010 2:48PM) (09) - CHASSIS

232083A6

ARM, WITH LOADER; Incl. 1, 2; Used In Production Only; For Service Order 307160A2, REF 1

1шт.

1

307160A2

ARM

Frame; Incl. 2; Incl. Decals

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

8шт.

3

87620407

PLATE

476 mm (18-3/4 in) Wide; Step Upper; Replaces 87449498, 432328A1

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Replaces 895-11008

5шт.

6

833-40008

SPRING NUT,M8, U

2шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

Replaces 614-8016

3шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

9

198786A1

COVER

For Model With Gear High Flow Hydraulics; See Figure 08-18, Ref 30

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

70 ID x 525 mm strk; Bucket Tilt; See Figure 08-12

2шт.

13

258426A3R

85 XT, ASN JAF0352234, 95XT ASN JAF0311357

REMAN-HYD CYLINDER

2шт.

13

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

14

139089A1

PIN,35mm OD x 149mm L

4шт.

15

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

16

832-41410

NUT,M10 x 1.5, Cl 10

4шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

18

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

64 ID x 1049 mm strk; Loader Lift; See Figure 08-11

2шт.

19

254431A2

PIN

Ear 4.52 mm thick

2шт.

20

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

26

330787A2

LINK

Right Hand; Incl. 27

1шт.

27

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

28

330779A1

ROD, CONNECTING

Left Hand; Incl. 29

1шт.

29

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

30

179637A1

PIN,45mm OD x 134mm L

2шт.

31

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

33

313677A1

COVER

2шт.

34

199896A1

PIN,35mm OD x 124mm L

2шт.

35

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

36

832-41410

NUT,M10 x 1.5, Cl 10

2шт.
