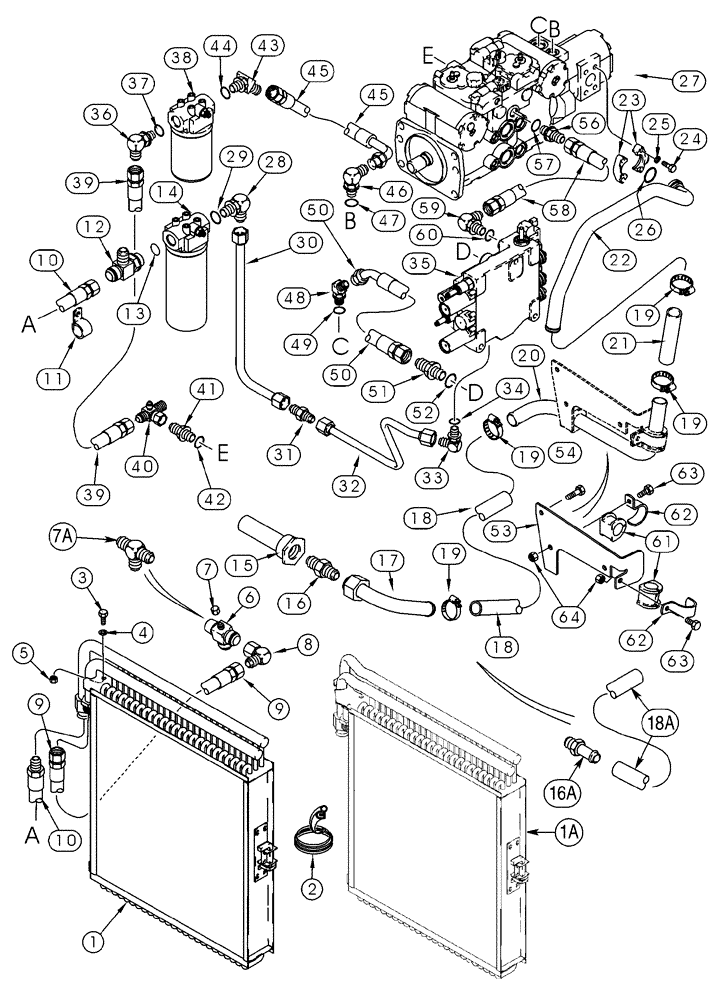

Запчасти Case IH 85XT (06-01) - HYDROSTATICS PUMP, SUPPLY AND RETURN, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (06) - POWER TRAIN

1

237994A2

COOLER, OIL

If Used; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"

1шт.

1a

301685A1

COOLER, OIL

If Used; Without Turbulators, Behr# BM20566 And Core Length Of 21.03"

1шт.

2

230745A1

RUBBER SEAL,512mm L

512 mm

8шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

257614A1

TEE,1-5/16" - 12 JIC x 1-5/16" - 12 JIC x 1" - 11-1/2 NPT

No Longer Used, Order 218-618, Ref. 7A

1шт.

7

218-754

CAP,37 Degree, 9/16"-18

No Longer Used, Order 218-618, Ref. 7A

1шт.

7a

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

1шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-5/16 fl x sw, Used With Ref. 9

1шт.

9

257732A1

HYDRAULIC HOSE

635 mm (25 in.), For Models With Gear High Flow Hydraulics, See Page(s) 8-109, Ref. 1

1шт.

Used with fitting P/N 218-5234

1шт.

10

242592A3

HOSE

1600 mm (63 in.)

1шт.

11

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1-3/8 ID

1шт.

12

254524A1

TEE

Includes: Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of tee P/N 254524A1

1шт.

14

222756A2

FILTER ASSY

Return, see Figure 06-08

1шт.

15

189310A1

STRAINER ASSY.

1шт.

16

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1-5/8 fl x 1-1/4 PT, No Longer Used, Order 217-157, Ref. 16A

1шт.

16a

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

1-1/4 Stem x PT

1шт.

17

194853A1

TUBE,31.8 mm OD

No Longer Used, Order 362866A1, Ref. 18A

1шт.

18

278772A1

HOSE ASSY.,31.8mm ID x 710mm L

710 mm (28 in.), No Longer Used, Order 362866A1, Ref. 18A

1шт.

18a

362866A1

HOSE ASSY.

930 mm (36-5/8 in.)

1шт.

19

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

20

256314A1

TUBE

1шт.

21

256406A1

HYDRAULIC HOSE

115 mm (4-1/2 in.)

1шт.

22

276587A1

TUBE,238, 225 mm Length

1шт.

23

A12301

CLAMP,Half

2шт.

24

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

25

492-11044

LOCK WASHER,7/16"

4шт.

26

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

27

REF

INSTRUCTION

PUMP Tandem, See Page(s) 6-10 thru 6-14

1шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

See Figure 08-34, Ref. 19, For Models With Gear High Flow Hydraulics, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5118

1шт.

30

275243A2

PIPE

For Models With Gear High Flow Hydraulics, See Page(s) 8-111, Ref. 18, Replaces: 275243A1

1шт.

31

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl

1шт.

32

275245A4

PIPE

Replaces: 275245A3

1шт.

33

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5123

1шт.

35

228188A5

VALVE

3-Spool, See Page(s) 8-67, 8-69, 8-75 - 8-81, Replaces: 228188A2, 228188A3, 228188A4

1шт.

36

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 37

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5119

1шт.

38

222757A1

FILTER ASSY

Charge, See Figure 06-08

1шт.

39

247153A2

HOSE ASSY.

460 mm (18-1/8 in.)

1шт.

40

296384A1

FITTING

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5060

1шт.

43

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj Or, Incl. Ref 44

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5149

1шт.

45

222920A2

HOSE ASSY.

520 mm (20-1/2 in.)

1шт.

46

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 47

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5106

1шт.

48

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj Or, Incl. Ref 49

1шт.

49

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5149

1шт.

50

276898A2

HOSE ASSY.

580 mm (22-7/8 in.)

1шт.

51

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: Ref. 52

1шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5062

1шт.

53

295628A1

SUPPORT

1шт.

54

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

56

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 57

1шт.

57

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5354

1шт.

58

220293A2

HOSE ASSY.

470 mm (18-1/2 in.)

1шт.

59

277908A1

TEE

Includes: Ref. 60

1шт.

61

D67298

INSULATOR

2шт.

62

302287A1

CLAMP

2шт.

63

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

64

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

55

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Not Illustrated

2шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of tee P/N 277908A1

1шт.
