(04-34) - ENGINE SHUTDOWN, AUTOMATIC, NORTH AMERICAN MODELS

Запчасти Case IH 85XT (04-34) - ENGINE SHUTDOWN, AUTOMATIC, NORTH AMERICAN MODELS (04) - ELECTRICAL SYSTEMS

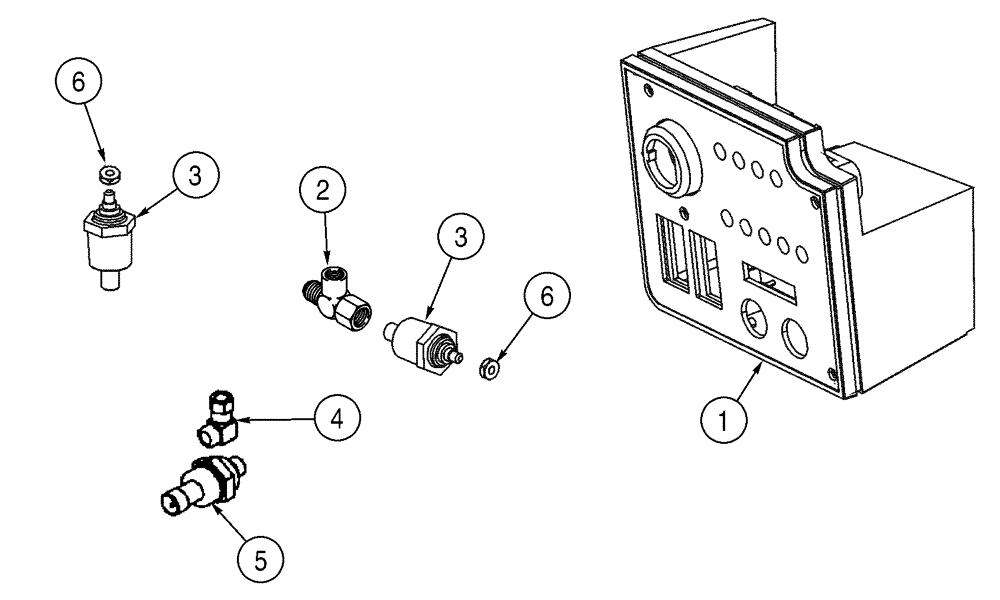

Схема запчастей Case IH 85XT - (04-34) - ENGINE SHUTDOWN, AUTOMATIC, NORTH AMERICAN MODELS (04) - ELECTRICAL SYSTEMS
5
1
6
6
4
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right-Hand Deluxe, See Figure 04-18, Ref. 3

1шт.

2

357327A1

TEE

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil Temperature

2шт.

4

357762A1

ELBOW

1шт.

5

426036A1

SENSOR

Engine Oil Pressure

1шт.

6

225-14210

NUT,#10-32

2шт.

Выбрано товаров: 6
