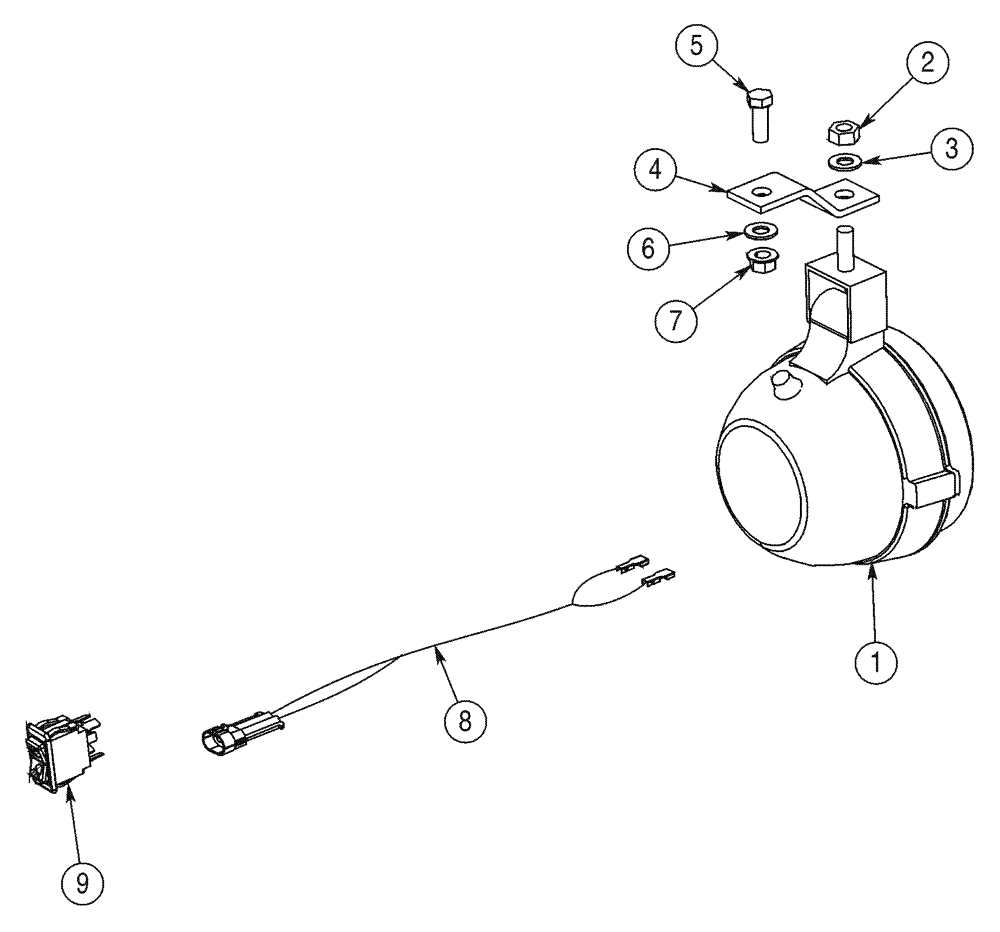

Запчасти Case IH 85XT (04-33) - MOUNTING LAMPS, ROAD, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

120139A1

LAMP,Halogen, 12V, 55W, Clear

Includes: Ref. 1 - 3

2шт.

1

181049A1

BULB

Halogen

1шт.

Part of work light P/N 120139A1

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

Part of work light P/N 120139A1

1шт.

4

116502A1

LUG

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

389173A1

HARNESS

Lamp

2шт.

9

230099A1

SWITCH

Lamp; Rocker

1шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Part of work light P/N 120139A1

1шт.
