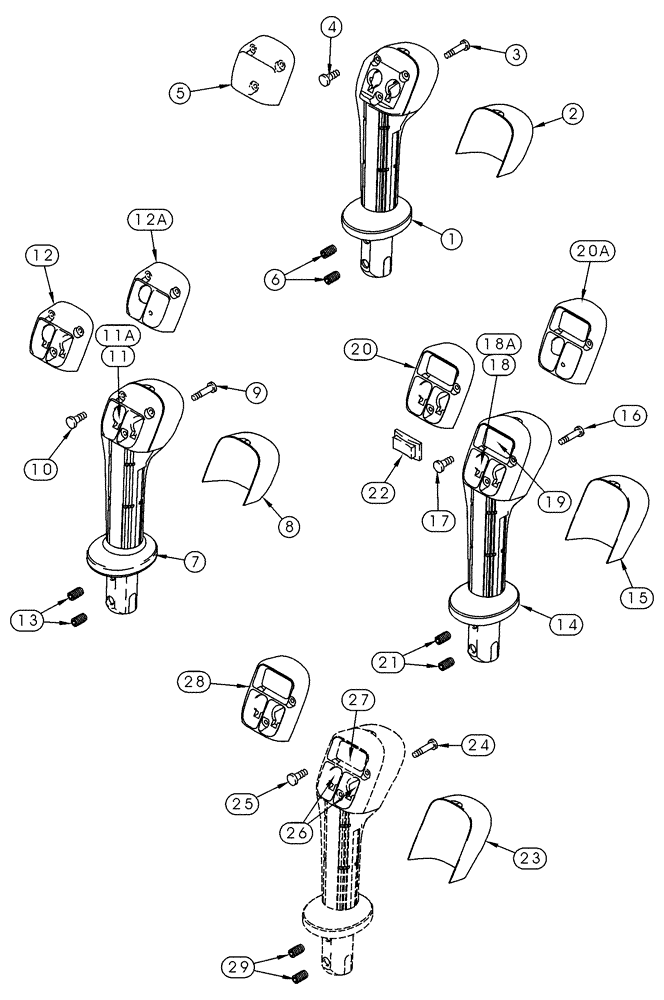

Запчасти Case IH 85XT (04-25) - CONTROLS, RIGHT HAND HANDLE, NO SWITCHES (04) - ELECTRICAL SYSTEMS

235763A1

HANDLE

Left-Hand, No Switches, Consists Of: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE Control

1шт.

2

291792A1

CAP

es

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

5

291794A1

PLASTIC PLATE

Blank

1шт.

6

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

235766A2

HANDLE

Right-Hand, Single Switch, Consists Of: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Handle, Control, Single Switch

1шт.

8

291792A1

CAP

Single Switch

1шт.

9

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Single Switch

1шт.

10

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Single Switch

3шт.

11

291801A1

SWITCH

Horn, No Longer Available, Order Ref. 11A, 12A, Single Switch

1шт.

11a

303891A1

SWITCH

Horn, Single Switch

1шт.

12

291795A1

PLASTIC PLATE

No Longer Available, Order Ref.12A, Single Switch

1шт.

12a

291795A2

PLASTIC PLATE

Single Switch

1шт.

13

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Single Switch

2шт.

233436A2

HANDLE

Right-Hand, Two-Switch, If Used, Consists Of: Ref. 14 - 21

1шт.

379500A1

HANDLE

Right-Hand, Two-Switch, If Used, Consists Of: Ref. 14 - 21

1шт.

14

NSS

NOT SOLD SEPARAT

HANDLE Control, Two-Wwitch

1шт.

15

291793A1

CAP

Two-Switch

1шт.

16

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Two-Switch

1шт.

17

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Two-Switch

3шт.

18

291801A1

SWITCH

Horn, Two-Switch, No Longer Available, Order Ref. 18A, 20A

1шт.

18a

303891A1

SWITCH

Horn, Two-Switch

1шт.

19

291802A1

SWITCH

Turn Signal Or Auxiliary Electric, Two-Switch

1шт.

20

291798A1

PLASTIC PLATE

Two-Switch, No Longer Available, Order Ref. 20A

1шт.

20a

291798A2

PLASTIC PLATE

Two-Switch

1шт.

21

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Two-Switch

2шт.

22

303893A1

BOOT

Rocker Switch, Two-Switch

1шт.

308598A1

HANDLE

Right-Hand, Three-Switch, W/3 Connectors, All 2 Pin

1шт.

379501A1

HANDLE

Right-Hand, Three-Switch, W/2 Connectors And 3rd W/3 Pin, Consists Of: Ref. 23 - 29

1шт.

23

291793A1

CAP

Three-Switch

1шт.

24

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Three-Switch

1шт.

25

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Three-Switch

3шт.

26

291801A1

SWITCH

Horn, Ride Control, Three-Switch

2шт.

27

291802A1

SWITCH

Turn Signal, Three-Switch

1шт.

28

291797A1

PLASTIC PLATE

Three-Switch

1шт.

29

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Three-Switch

2шт.
