(04-22) - HARNESS, FRONT AUXILIARY

Запчасти Case IH 85XT (04-22) - HARNESS, FRONT AUXILIARY (04) - ELECTRICAL SYSTEMS

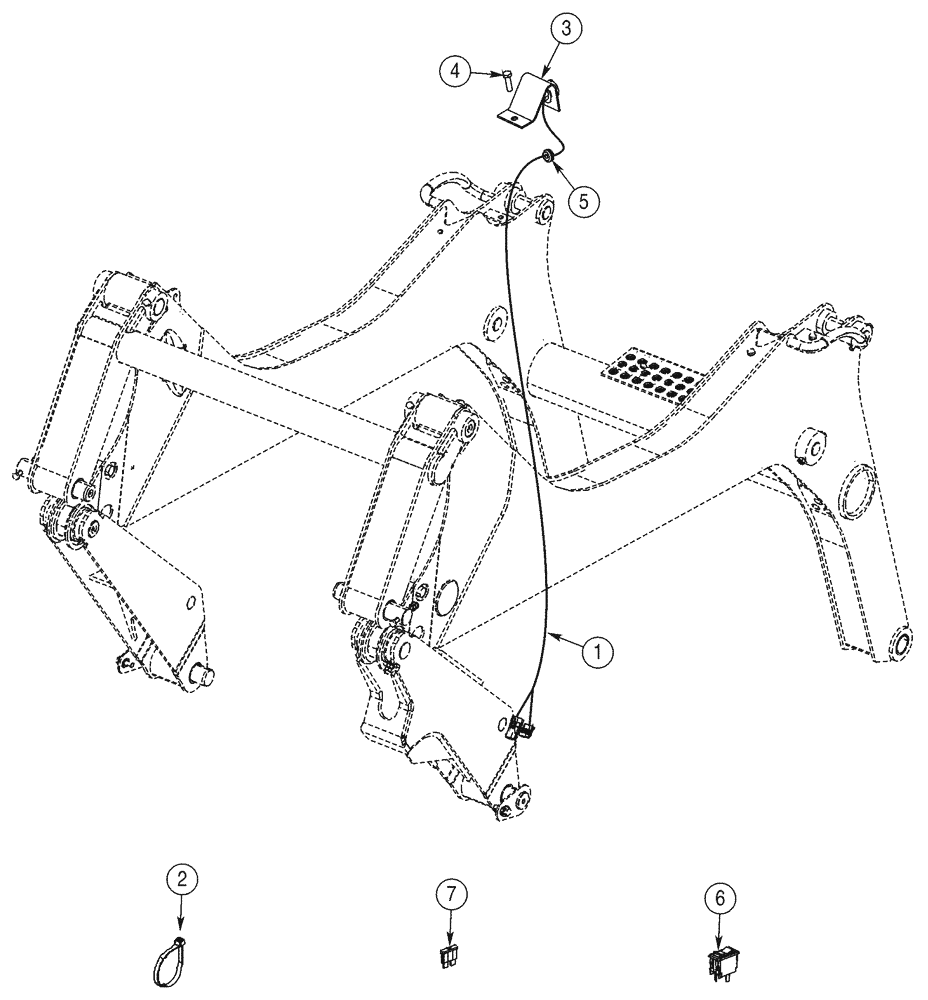

Схема запчастей Case IH 85XT - (04-22) - HARNESS, FRONT AUXILIARY (04) - ELECTRICAL SYSTEMS
7
3
2
4
6
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

426764A1

HARNESS

Front Auxiliary Electric, See Figure 04-22

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

4шт.

3

419711A1

BRACKET

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

5

248-2368

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

1шт.

6

223837A1

SWITCH

Auxiliary Control, See Figure 04-22

1шт.

7

A149800

FUSE,10 Amp

10 amp, See Figure 04-22

1шт.
