(04-20) - HARNESS SEAT BAR, NORTH AMERICAN MODELS ASN

Запчасти Case IH 85XT (04-20) - HARNESS SEAT BAR, NORTH AMERICAN MODELS ASN (04) - ELECTRICAL SYSTEMS

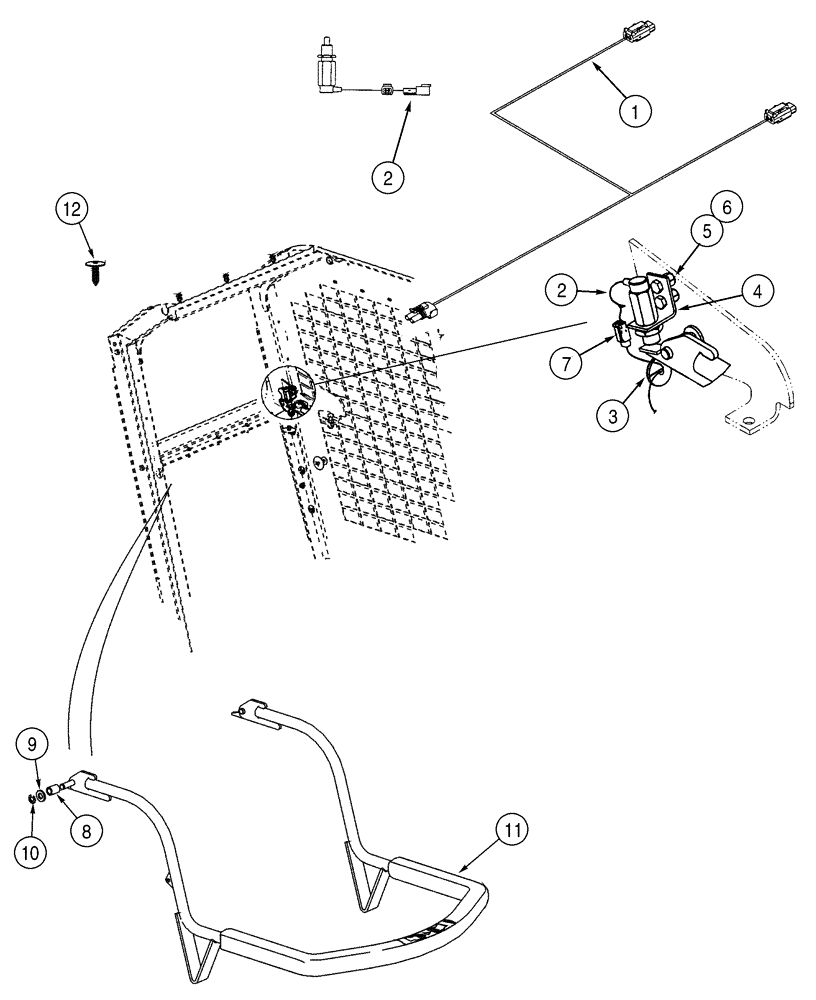

Схема запчастей Case IH 85XT - (04-20) - HARNESS SEAT BAR, NORTH AMERICAN MODELS ASN (04) - ELECTRICAL SYSTEMS
5
2
8
3
9
12
11
2
4
1
6
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

321390A1

HARNESS

Seat Bar, Interlock

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock

2шт.

333743A2

CONNECTION,ELECTRIC

Seat Bar, Kit, Consists Of: Ref. 2- 13

1шт.

2

313329A1

SWITCH

Seat Bar, Interlock, Kit

1шт.

3

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock, Kit; No Longer Used, Order 87530614

1шт.

3

87530614

GROMMET

1шт.

4

334243A1

SUPPORT

Kit

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Kit

2шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

Kit

2шт.

7

337646A1

HARNESS

Kit

1шт.

8

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

See Figures 09-33 - 09-36, Kit

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

See Figures 09-33 - 09-36, Kit

2шт.

10

D143415

SNAP RING,0.50” ID, Klipring

1/2, See Figures 09-33 - 09-36, Kit

2шт.

11

419844A1

BAR

See Figures 09-34, 09-36, Kit

1шт.

12

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

See Page(s) 9-105, Kit

8шт.
