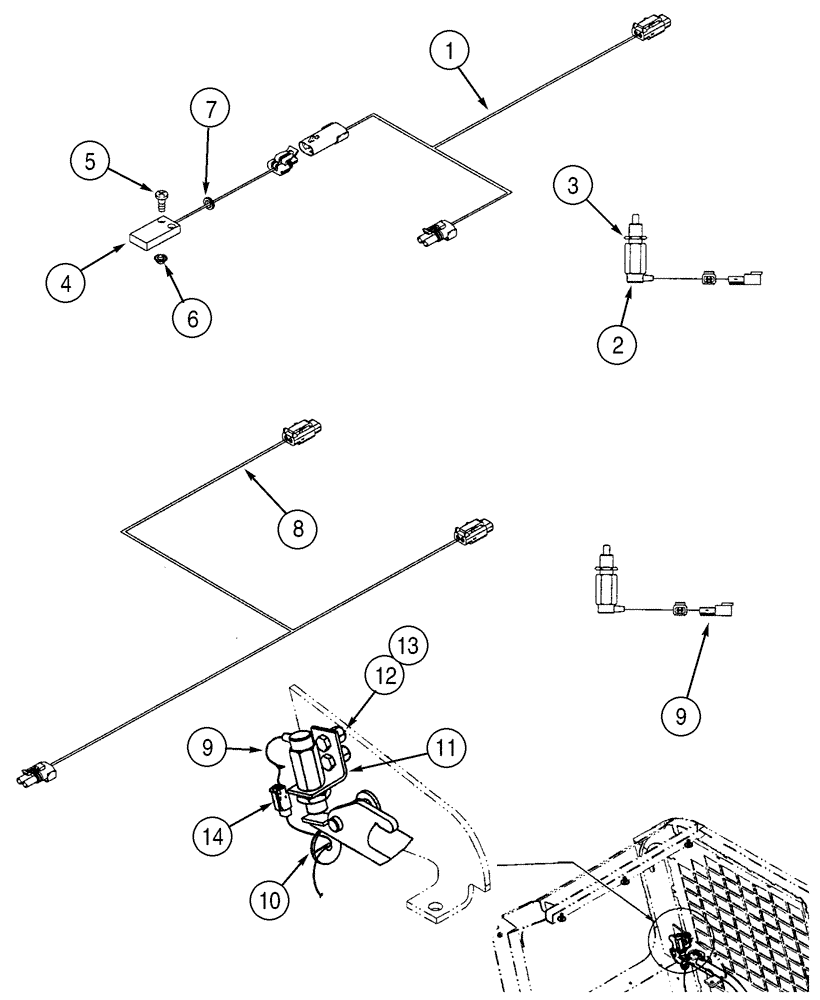

Запчасти Case IH 85XT (04-19) - HARNESS - SEAT BAR, NORTH AMERICA ONLY, BSN (04) - ELECTRICAL SYSTEMS

1

301405A1

CONNECTOR, ELEC

CONNECTOR Seat Harness To Sensor Switch

1шт.

2

280925A1

SWITCH

Sensor, Interlock

1шт.

3

832-10416

NUT,M16 x 2, Cl 8

1шт.

4

198310A1

SWITCH

Seat Ba

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

6

193-1003

NUT,Keps, w/LW,#6-32

2шт.

7

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

No Longer Used, Order 87530614

1шт.

7

87530614

GROMMET

1шт.

8

321390A1

HARNESS

Seat Bar, Interlock, N.A. Only, - JAF0273028, Europe Only, - JAF0274114

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock, N.A. Only, - JAF0273028, Europe Only, - JAF0274114

2шт.

333743A2

CONNECTION,ELECTRIC

Seat Bar, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Replaces: 333743A1, Consists Of: Ref. 9- 19

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

1шт.

Part of electric connection P/N 333743A2

1шт.

10

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock, If Equipped, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

1шт.

Part of electric connection P/N 333743A2

1шт.

11

334243A1

SUPPORT

If Equipped, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

1шт.

Part of electric connection P/N 333743A2

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If Equipped, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

2шт.

Part of electric connection P/N 333743A2

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

If Equipped, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

2шт.

Part of electric connection P/N 333743A2

1шт.

14

337646A1

HARNESS

If Equipped, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit

1шт.

Part of electric connection P/N 333743A2

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

See Page(s) 9-89, 9-95, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Not Illustrated

2шт.

Part of electric connection P/N 333743A2

1шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

See Page(s) 9-89, 9-95, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Not Illustrated

2шт.

Part of electric connection P/N 333743A2

1шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2, See Page(s) 9-89, 9-95, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Not Illustrated

2шт.

Part of electric connection P/N 333743A2

1шт.

18

318038A1

BAR ASSY.

See Page(s) 9-89, 9-95, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Not Illustrated

1шт.

Part of electric connection P/N 333743A2

1шт.

19

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

See Page(s) 9-105, N.A. Only, -JAF0352233, Europe Only, -JAF0352714, Kit, Not Illustrated

8шт.

Part of electric connection P/N 333743A2

1шт.
