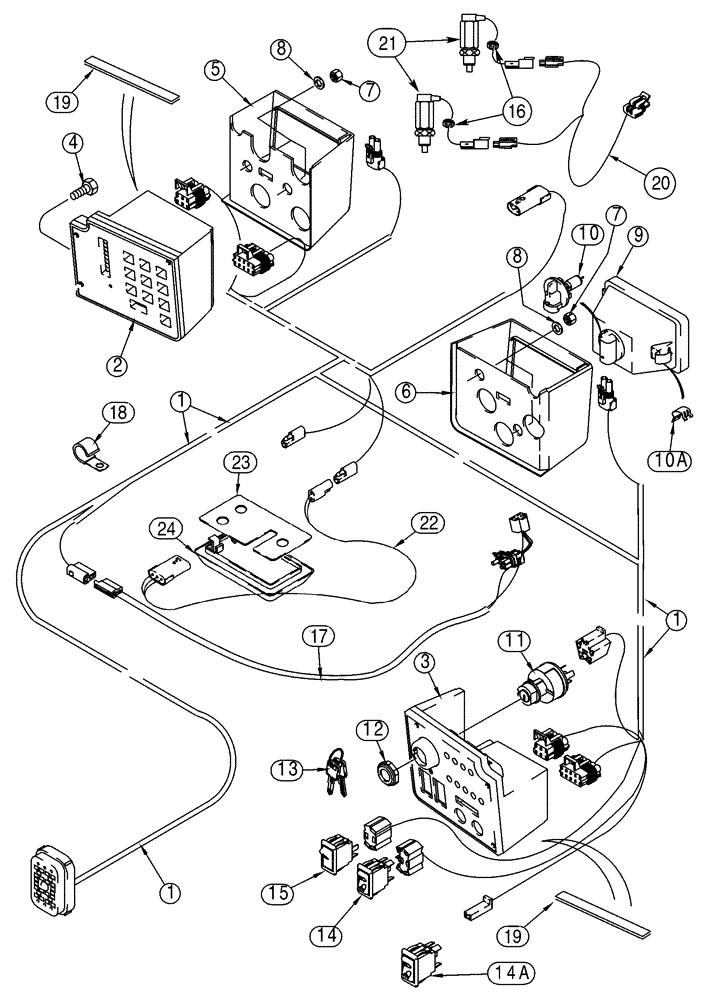

Запчасти Case IH 85XT (04-18) - HARNESS CAB, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
227762A5
HARNESS
Cab
1шт.
256340A1
CONNECTOR, ELEC
CONNECTOR 2-Prong Headlight Connector = (1) Of P/N 256340A1 & (2) Of Terminal P/N 258613A1
1шт.
258613A1
LOCK
2шт.
2
189491A9
PANEL, INSTRUMENTS
PANEL, INSTRUMENT Left-Hand
1шт.
3
189492A3
PANEL, INSTRUMENTS
PANEL, INSTRUMENT Right-Hand
1шт.
3
189493A1
PANEL, INSTRUMENTS
PANEL, INSTRUMENT Deluxe, Right-Hand, Models With Automatic Engine Shutdown, See Figure 04-34
1шт.
4
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
7шт.
5
199701A1
SUPPORT
Left-Hand
1шт.
6
199702A1
SUPPORT
Right-Hand
1шт.
7
832-41406
NUT,M6 x 1, Cl 8
4шт.
8
895-15006
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
4шт.
9
222004A2
HEADLIGHT,Halogen, 12V, 50W, Clear
Includes: Ref. 10 and 10A
2шт.
10
259702A1
BULB
1шт.
Part of headlight P/N 222004A2
1шт.
10a
259701A1
CLIP,ELECTRICAL
1шт.
Part of headlight P/N 222004A2
1шт.
282775A1
IGNITION SWITCH
Consists Of: Ref. 11, 12 and 13
1шт.
11
NSS
NOT SOLD SEPARAT
SWITCH Ignition
1шт.
Part of ignition switch P/N 282775A1
1шт.
12
A77314
NUT
1шт.
Part of ignition switch P/N 282775A1
1шт.
Part of ignition switch P/N 282775A1
1шт.
14
223836A1
LIGHT SWITCH
Lamp
1шт.
14a
230099A1
SWITCH
Lamp, Europe Only
1шт.
15
223838A1
CONTROL
Cold Start
1шт.
16
248-1237
GROMMET,1/4" ID x 1" Groove Dia, Diag Cut
No Longer Used, Order 87530614
3шт.
16
87530614
GROMMET
3шт.
17
NSS
NOT SOLD SEPARAT
HARNESS Wiper Motor, See Page(s) 4-55B
1шт.
18
515-22270
CLAMP,1-1/16", Insul, 5/16" Bolt
1-1/16 ID
1шт.
19
295026A1
SEAL
305 mm (12 in.), Models With Heater, Models With Air Conditioning
2шт.
20
321390A1
HARNESS
Interlock, Switch
1шт.
21
313329A1
SWITCH
Seat Bar, Interlock
2шт.
22
324882A1
HARNESS
Lamp, Models With Deluxe Heater
1шт.
23
322783A1
HOLDER
Models With Deluxe Heater
1шт.
24
325271A1
COURTESY LIGHT
DOME LIGHT Models With Deluxe Heater
1шт.
Выбрано товаров: 36
