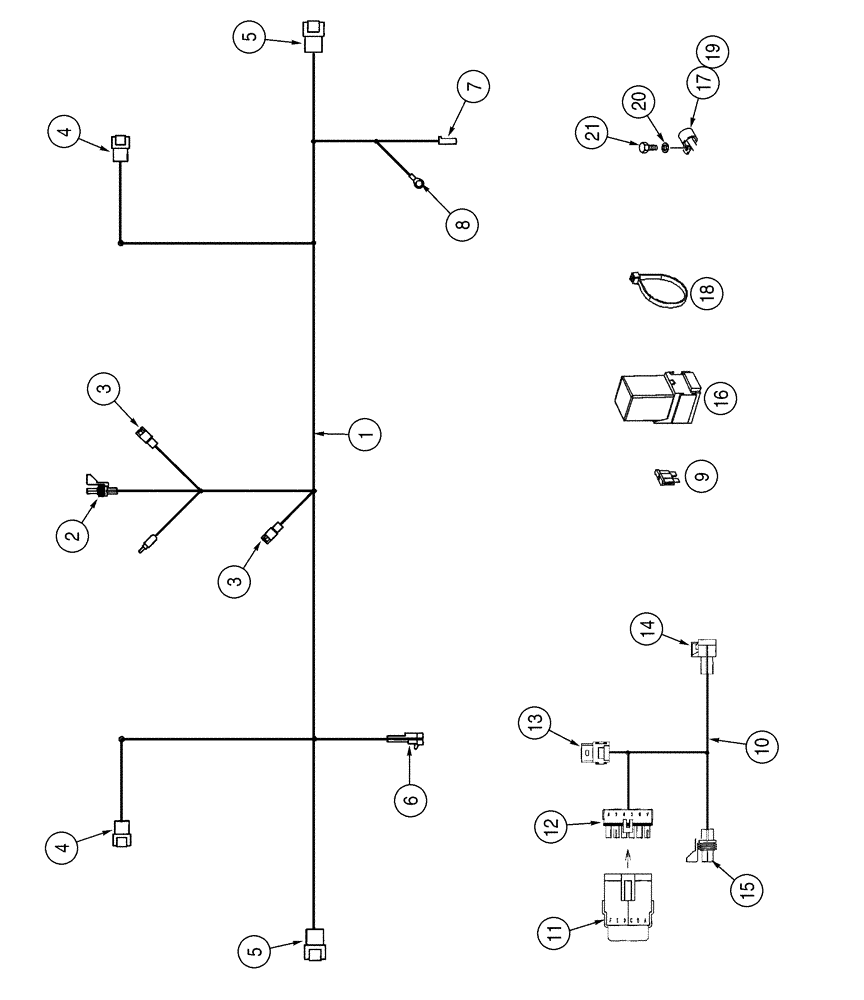

Запчасти Case IH 85XT (04-14) - HARNESS TURN SIGNAL, FLASHER AND LICENSE PLATE LAMP (04) - ELECTRICAL SYSTEMS

1

326496A3

HARNESS

Turn Signal

1шт.

2

256344A1

CONNECTOR, ELEC

CONNECTOR Chassis Options

1шт.

3

739070C1

CONNECTOR, ELEC

CONNECTOR

2шт.

4

225326C1

ELEC CONNECTOR,Male, 4 Pin

4-Cavity, Turn Signal, Rear, See Page(s) 4-73

2шт.

5

277905A1

ELEC CONNECTOR,Male, 4 Pin

Turn Signal, Front, See Page(s) 4-71

2шт.

6

245482C1

ELEC CONNECTOR,2 Pin

License Plate Light, See Page(s) 4-67

1шт.

7

631801C1

CONNECTION

Horn

1шт.

8

200329

TERMINAL

CONNECTOR Horn, 1/4

1шт.

9

A149800

FUSE,10 Amp

10 amp

1шт.

10

377811A1

HARNESS

Flasher, Includes: Ref. 11 - 15

1шт.

11

131737A1

DIODE

1шт.

Part of harness P/N 377811A1

1шт.

12

245488C1

ELEC CONNECTOR,6 Pin

1шт.

Part of harness P/N 377811A1

1шт.

13

245731C1

CONNECTOR, ELEC

CONNECTOR

1шт.

Part of harness P/N 377811A1

1шт.

14

256351A1

CONNECTOR, ELEC

CONNECTOR

1шт.

Part of harness P/N 377811A1

1шт.

15

256350A1

CONNECTOR, ELEC

CONNECTOR

1шт.

Part of harness P/N 377811A1

1шт.

16

379112A1

FLASHER UNIT

Turn Signal

1шт.

17

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
