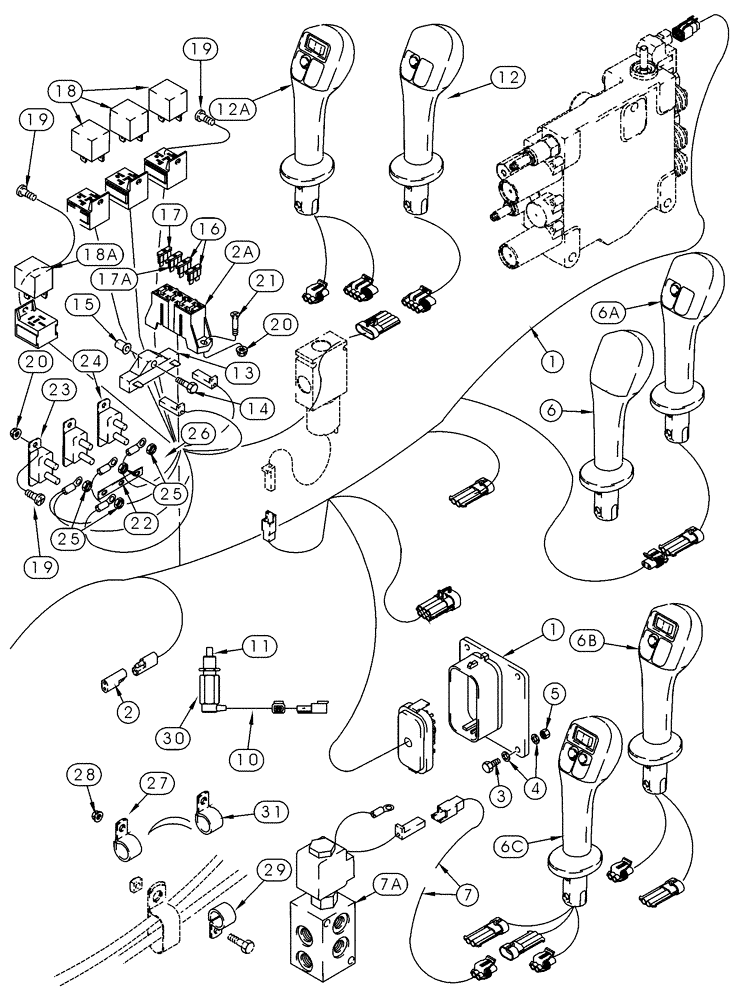

Запчасти Case IH 85XT (04-08) - HARNESS CHASSIS NORTH AMERICA JAF0236484 -, FRONT (04) - ELECTRICAL SYSTEMS

1

372227A1

HARNESS

Chassis, Replaces: 294874A3, Also Order 372248A1, Ref. 1A, If Used, Includes: Ref. Ref 2 and 2A

1шт.

1

353559A1

HARNESS

Chassis, N.A. Oonly, See Figures 04-07, 04-10, 04-11, Used On Models With Engine No. 326964A1, If Used

1шт.

1

372229A1

HARNESS

Chassis, With Two-Way Weather Pack Connector, See Figures 04-07, 04-10, 04-11, If Used

1шт.

1a

372248A1

HARNESS

Used With 372227A1, Not Illustrated

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

Part of harness P/N 372227A1

1шт.

2a

245435C1

FUSE HOLDER

1шт.

Part of harness P/N 372227A1

1шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

832-41306

NUT,M6 x 1, Cl 10

2шт.

6

235766A2

HANDLE

Right-Hand, Horn, See Figure 04-25

1шт.

6a

233436A2

HANDLE

Right-Hand, Horn, Turn Signal, See Figure 04-25

1шт.

6b

308598A1

HANDLE

Right-Hand, Horn, Turn Signal, Ride Control, See Figure 04-25

1шт.

7

310838A1

HARNESS

Ride Control

1шт.

7a

308023A1

VALVE

Ride Control, See Figure 08-09

1шт.

9

242306A1

SWITCH

Operator Presence, See Page(s) 9-75, 9-87, Not Illustrated

1шт.

10

301405A1

CONNECTOR, ELEC

CONNECTOR Seat Harness To Sensor Switch

1шт.

11

280925A1

SWITCH

Interlock, Also Order Ref. 30

1шт.

Used with nut P/N 832-10416

1шт.

12

235765A2

HANDLE

Left-Hand, Brake, See Figure 04-26

1шт.

12a

235909A3

HANDLE

Left-Hand, Brake, High Flow, See Figure 04-26

1шт.

13

107558C1

RESISTOR

25 ohm

1шт.

14

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

15

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

16

A149800

FUSE,10 Amp

10 amp

2шт.

17

A149802

FUSE

20 amp

1шт.

17a

A149803

FUSE,25 Amp

25 amp

1шт.

18

D128310

RELAY

30 amp

1шт.

18a

314451A1

RELAY

40 amp, 12V, If Equipped

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

20

825-5145

NUT,M5, Flg Ser

7шт.

21

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

245861C1

BAR

1шт.

23

303886A1

BREAKER

40 amp

2шт.

24

303884A1

BREAKER

15 amp

1шт.

25

225-14210

NUT,#10-32

7шт.

26

247333A1

CAP

6шт.

27

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

If equipped

2шт.

28

825-5146

SERRATED NUT,M6, Flg Ser

If equipped

2шт.

29

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

30

832-10416

NUT,M16 x 2, Cl 8

Used with 280925A1, Ref. 11

1шт.

31

A37179

CLIP

If Equipped

2шт.
