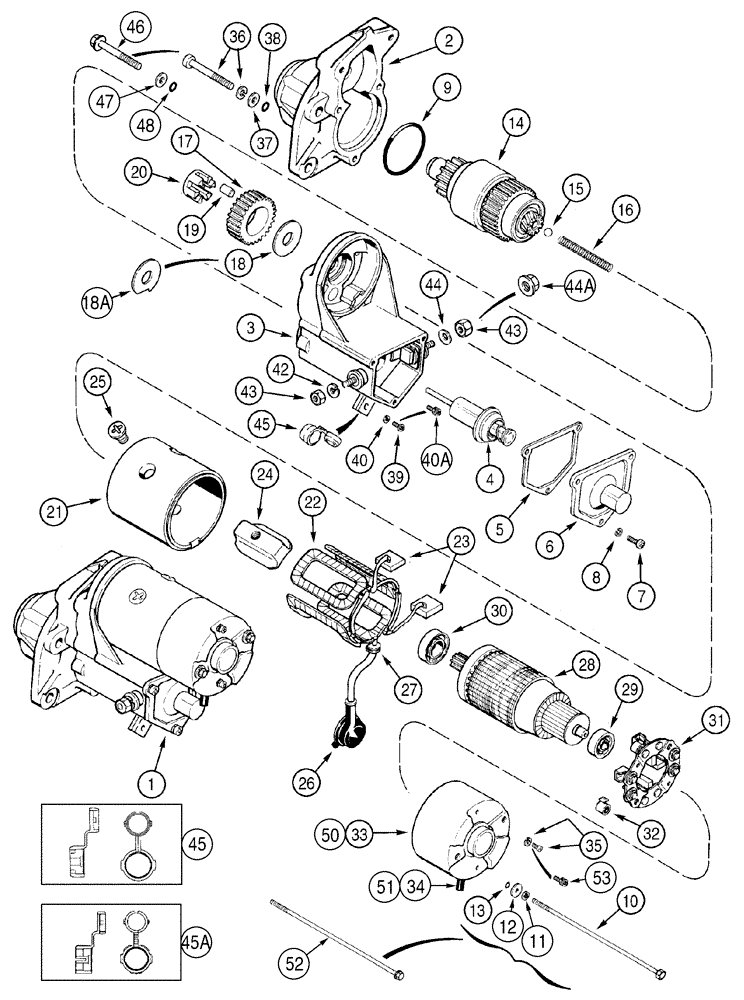

Запчасти Case IH 85XT (04-01) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

Consists Of: Ref. 2 - 53

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

1шт.

3

104588A1

SOLENOID

Consists Of: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

Part of switch assy. P/N 104588A1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of switch assy. P/N 104588A1

1шт.

6

NSS

NOT SOLD SEPARAT

COVER SHEET

1шт.

Part of switch assy. P/N 104588A1

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW

3шт.

Part of switch assy. P/N 104588A1

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER

3шт.

Part of switch assy. P/N 104588A1

1шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47243

BOLT

Used With A47237, Ref. 33, If Used, Consists Of: Ref. 10 - 13

2шт.

10

A47128

BOLT

1шт.

Part of bolt P/N A47243

1шт.

Used with frame P/N A47237

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

Part of bolt P/N A47243

1шт.

Used with frame P/N A47237

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

Part of bolt P/N A47243

1шт.

Used with frame P/N A47237

1шт.

13

A47127

O-RING

1шт.

Part of bolt P/N A47243

1шт.

Used with frame P/N A47237

1шт.

14

104587A1

CLUTCH

1шт.

15

211-1311

BALL,11/32" Dia

200, CRS, If used

1шт.

15

211-1011

BALL,11/32" Dia

3/4; 24, CRS, If Used

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

1шт.

18

A47234

WASHER

If Used

1шт.

18a

141360A1

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

Consists Of: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

Part of housing P/N A47240

1шт.

22

NSS

NOT SOLD SEPARAT

COIL ASSY.

1шт.

Part of housing P/N A47240

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSH

2шт.

Part of housing P/N A47240

1шт.

24

NSS

NOT SOLD SEPARAT

SHOE

4шт.

Part of housing P/N A47240

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW

4шт.

Part of housing P/N A47240

1шт.

26

NSS

NOT SOLD SEPARAT

BOOT

1шт.

Part of housing P/N A47240

1шт.

27

A47241

PLATE

1шт.

28

A47242

ARMATURE

Includes: Ref. 29 and 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Replaces A47248

1шт.

Part of armature P/N A47242

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

Part of armature P/N A47242

1шт.

31

A47239

HOLDER

Includes: Ref. 32

1шт.

32

A47249

SPRING

1шт.

Part of holder P/N A47239

1шт.

33

A47237

FRAME

Used With Ref. 10 - 13

1шт.

Used with bolt P/N A47243

1шт.

Used with screw P/N A47244

1шт.

Used with cover P/N A47238

1шт.

34

A47238

COVER

Ventilation, Used With Ref. 33

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

Used With Ref. 33, If Used

2шт.

36

A47129

CAPTIVE WASHER SCREW

If Used

1шт.

37

195-2015

WASHER

1/4 x 1-3/4 x 1/16, If Used

1шт.

38

A47130

O-RING

If Used

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

M5 x 8, If Used

1шт.

40

892-11005

LOCK WASHER,M5

If Used

1шт.

40a

401126A1

SCREW,M5 x 8mm, W/ LW

If Used

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

1-2шт.

44

A10454

WAVE WASHER

If Used

1шт.

44a

332468A1

NUT

M10

1шт.

45

104589A1

BUSHING

If Used

1шт.

45a

141354A1

RING

If Used

1шт.

A47230

BOLT

Consists Of: Ref. 46 - 48

3шт.

46

332475A1

BOLT

If Used

1шт.

Part of bolt P/N A47230

1шт.

47

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), If used

1шт.

Part of bolt P/N A47230

1шт.

48

332476A1

O-RING

If Used

1шт.

Part of bolt P/N A47230

1шт.

50

401106A1

FRAME

Used With Ref. 52, If Used

1шт.

51

141355A1

COVER

Used With, If Used

1шт.

52

332467A1

BOLT

M6 x 181, Replaces: Ref. 10 - 13, If Used

1шт.

Used with frame P/N 401106A1

1шт.

53

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

If Used

1шт.
