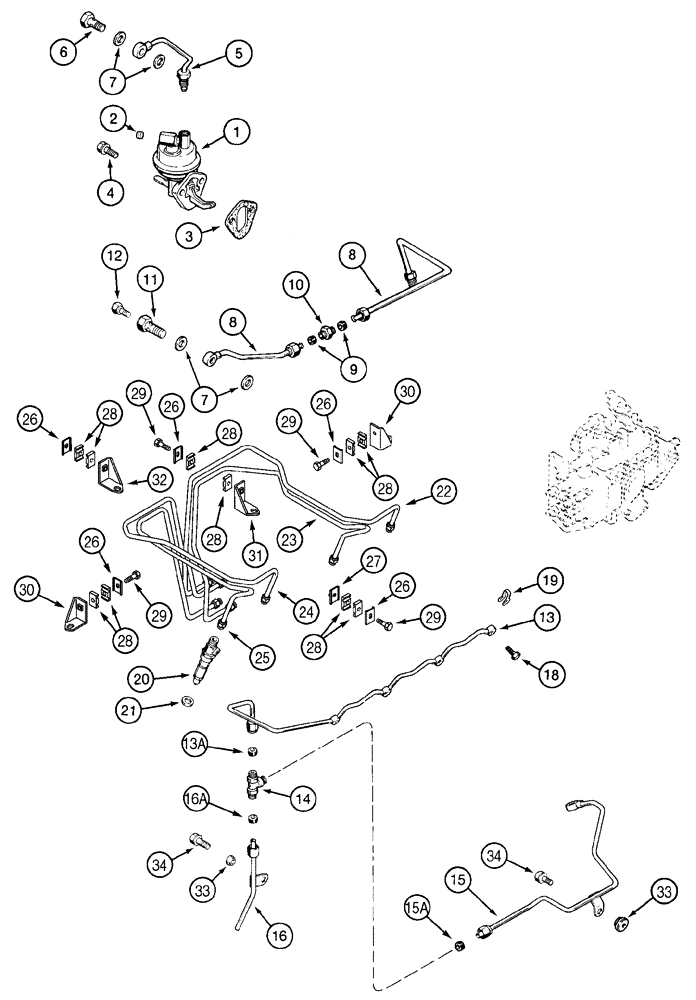

Запчасти Case IH 85XT (03-08) - FUEL INJECTION SYSTEM NORTH AMERICA/EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J928143

PUMP

1шт.

2

221-841

PLUG

1/4 PT

1шт.

3

J931059

GASKET

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

1шт.

6

J903035

BANJO BOLT

M12 x 24

1шт.

7

J935171

SEALING WASHER

12 x 19 x 1.5 mm

4шт.

8

J918640

FUEL TUBE

Consists Of: Ref. 9 and 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

Part of pipe assy. P/N J918640

1шт.

10

222-4

FITTING,9/16"-24, Flex Tube

5/16 OD

1шт.

Part of pipe assy. P/N J918640

1шт.

J905860

BANJO BOLT

Consists Of: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT

1шт.

Part of screw P/N J905860

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of screw P/N J905860

1шт.

13

J909695

FUEL TUBE

Includes: Ref. 13A

1шт.

13a

222-101

SLEEVE,3/16" Tube

1шт.

Part of line P/N J909695

1шт.

14

222-121

TEE,3/16", Flex Tubing

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

Includes: Ref. 15A

1шт.

15a

222-101

SLEEVE,3/16" Tube

1шт.

Part of tube J905699

1шт.

16

J905692

FUEL TUBE

Includes: Ref. 16A

1шт.

16a

222-101

SLEEVE,3/16" Tube

1шт.

Part of tube P/N J905692

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

19

J903380

SEAL

4шт.

20

J930573

INJECTOR ASSY.

4шт.

21

J906659

SEAL

7 mm

4шт.

22

J935691

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

23

J935693

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

24

J935696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

25

J935698

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4

1шт.

26

CURJ904711

CLAMP

8шт.

27

J907546

BRACE

4шт.

28

J917746

CLAMP

16шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

8шт.

30

J935746

BRACE

2шт.

31

J935748

BRACE

1шт.

32

J935700

BRACE

1шт.

33

J928759

SEALING WASHER

4шт.

34

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.
