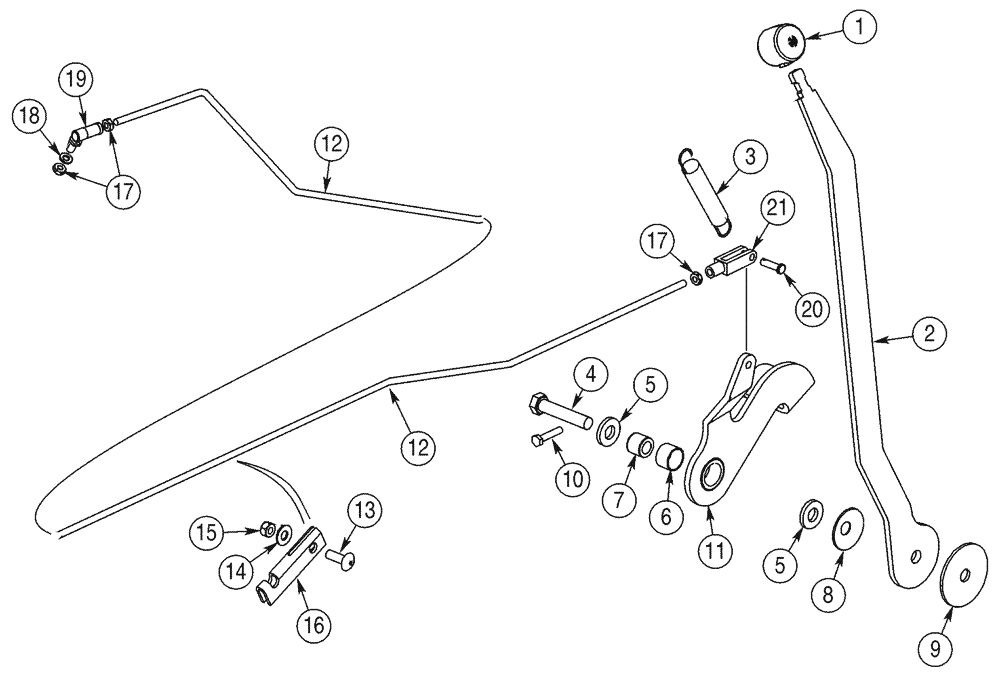

Запчасти Case IH 85XT (03-04) - CONTROLS THROTTLE NORTH AMERICA JAF0352234 - (03) - FUEL SYSTEM

NSS

NOT SOLD SEPARAT

CONTROL ASSY Throttle, Includes: Ref. 1 - 11

1шт.

1

A177436

KNOB

1шт.

Part of throttle control assy.

1шт.

2

186904A1

CONTROL LEVER

Hand-Operated

1шт.

Part of throttle control assy.

1шт.

3

D124939

SPRING

1шт.

Part of throttle control assy.

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

Part of throttle control assy.

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

Part of throttle control assy.

1шт.

6

186905A1

BUSHING

1шт.

Part of throttle control assy.

1шт.

7

187035A2

SLEEVE

1шт.

Part of throttle control assy.

1шт.

8

R14771

WASHER

1шт.

Part of throttle control assy.

1шт.

9

1342374C1

DISC

1шт.

Part of throttle control assy.

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

Part of throttle control assy.

1шт.

11

186908A2

LEVER

Foot-Operated

1шт.

Part of throttle control assy.

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

430262A1

ROD

1шт.

13

811-8025

BOLT,Sht Sq Nk, M8 x 1.25 x 25mm, Cl 8.8

M8 x 25

1шт.

15

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

16

344944A1

CRADLE

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

18

492-11025

LOCK WASHER,1/4"

1шт.

19

H169920

BALL JOINT

1/4 NF

1шт.

20

D23693

AXLE PIN

1/4 x 1

1шт.

21

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
