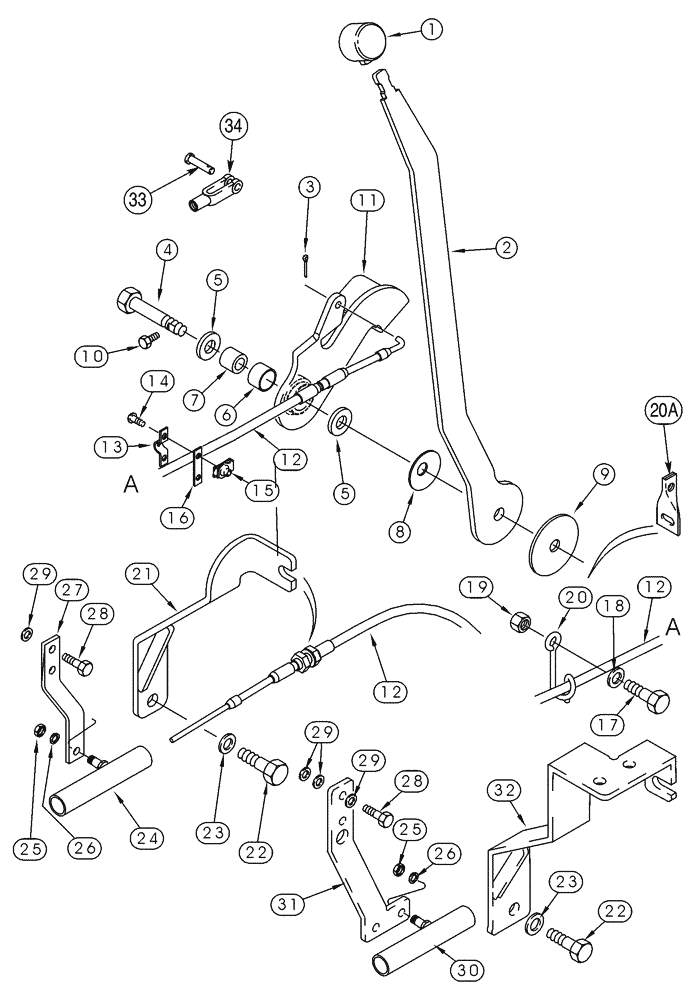

Запчасти Case IH 85XT (03-03) - CONTROLS THROTTLE NORTH AMERICA JAF0236484 - JAF0352233 (03) - FUEL SYSTEM

NSS

NOT SOLD SEPARAT

CONTROL ASSY Throttle, Includes: Ref. 1 - 11

1шт.

1

A177436

KNOB

1шт.

Part of throttle control assy.

1шт.

2

186904A1

CONTROL LEVER

Hand-Operated

1шт.

Part of throttle control assy.

1шт.

3

432-48

COTTER PIN,1/16" x 1/2"

If used

1шт.

Part of throttle control assy.

1шт.

3a

D124939

SPRING

Used With Ref. 12A, If Used, Not Illustrated

1шт.

Part of throttle control assy.

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

Part of throttle control assy.

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

Part of throttle control assy.

1шт.

6

186905A1

BUSHING

1шт.

Part of throttle control assy.

1шт.

7

187035A2

SLEEVE

1шт.

Part of throttle control assy.

1шт.

8

R14771

WASHER

1шт.

Part of throttle control assy.

1шт.

9

1342374C1

DISC

1шт.

Part of throttle control assy.

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

Part of throttle control assy.

1шт.

11

186908A2

LEVER

Foot-Operated

1шт.

Part of throttle control assy.

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

296281A1

CABLE,1828.8mm L

If Used

1шт.

12a

344811A1

THREADED ROD

If Used, Not Illustrated

1шт.

Used with spring P/N D124939

1шт.

13

304818A1

COLLAR CLAMP

If Used

1шт.

14

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

15

833-40304

SPRING NUT,M4, U

M4

2шт.

16

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

Used with Ref. 20

1шт.

19

832-41308

NUT,M8 x 1.25, Cl 10

Used with Ref. 20A

1шт.

20

236217A1

CRADLE

If Used

1шт.

Used with nut P/N 825-5148

1шт.

20a

344944A1

CRADLE

If Used

1шт.

Used with nut P/N 832-41308

1шт.

21

303241A1

SUPPORT

Used With Ref. 24, 27 and 29, If Used

1шт.

Used with ball joint P/N 278183A1

1шт.

Used with accelerator lever P/N 284932A2

1шт.

Used with washer P/N 895-11006

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Used with Ref. 32

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, Used With Ref. 32

2шт.

24

278183A1

BALL JOINT

Used With Ref. 21, 27 and 29, If Used

1шт.

Used with support P/N 303241A1

1шт.

Used with accelerator lever P/N 284932A2

1шт.

Used with washer P/N 895-11006

1шт.

25

425-154

JAM NUT,Jam, 1/4"-28, G5

1-3шт.

26

492-11025

LOCK WASHER,1/4"

1шт.

27

284932A2

LEVER

Accelerator, Used With Ref. 21, 24 and 29

1шт.

Used with support P/N 303241A1

1шт.

Used with ball joint P/N 278183A1

1шт.

Used with washer P/N 895-11006

1шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Used with Ref. 31

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Used with Ref. 21, 24 and 27

6шт.

Used with support P/N 303241A1

1шт.

Used with ball joint P/N 278183A1

1шт.

Used with accelerator lever P/N 284932A2

1шт.

30

1974525C1

BALL JOINT

Used With Ref. 31 and 32, If Used

1шт.

Used with support P/N 321881A1

1шт.

30a

H169920

BALL JOINT

1/4 NF, If Used, Not Illustrated

1шт.

31

346996A1

LEVER

No Longer Available, Replaces 321878A1

1шт.

Used with capscrew P/N 614-6016

1шт.

Used with ball joint P/N 1974525C1

1шт.

Used with support P/N 321881A1

1шт.

32

321881A1

SUPPORT

Used With Ref. 30 and 31, If Used

1шт.

Used with screw P/N 627-12025 and washer P/N 896-15012

1шт.

Used with ball joint P/N 1974525C1

1шт.

33

D23693

AXLE PIN

1/4 x 1

1шт.

34

213-124

ADJUSTABLE CLEVIS,1/4"-28

If Used

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1-2шт.
