(85XT) - CASE SKID STEER LOADER (9/97-12/05)
/
(02) - ENGINE
/

(02-27) - GASKET KIT (VALVE GRIND) NORTH AMERICA / EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 85XT (02-27) - GASKET KIT (VALVE GRIND) NORTH AMERICA / EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

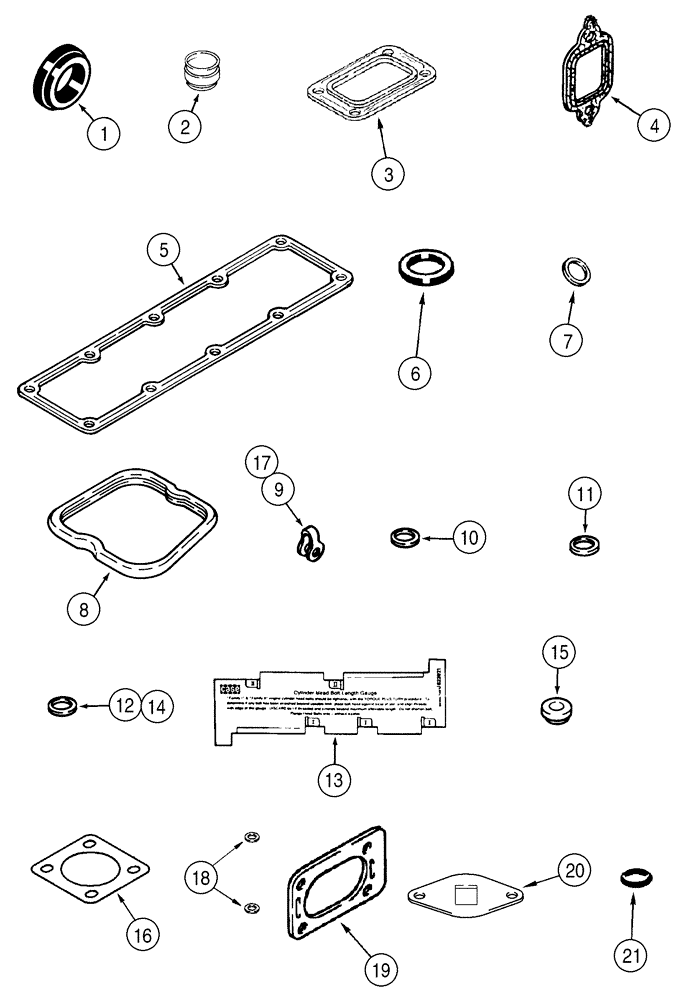

Схема запчастей Case IH 85XT - (02-27) - GASKET KIT (VALVE GRIND) NORTH AMERICA / EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
16
21
10
1
3
18
17
12
14
13
2
11
5
19
8
4
15
9
20
7
6

№

Артикул

Название

Примечание

Количество

A77975

GASKET KIT

Consists Of: Ref. 1 - 21

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

1

J923331

GASKET

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

2

J921640

SEAL

8шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

3

J919369

GASKET,0.5mm Thk

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

4

J927154

GASKET,0.38mm Thk

Exhaust

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

5

J931605

BOLT

Intake

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

6

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

7

J900808

SEAL

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

8

J930906

GASKET

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

9

J903380

SEAL

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

10

J906659

SEAL

7 mm

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

13

J823921

GAUGE

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

14

J930324

SEAL

0.5 mm

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

16

J912220

GASKET,0.4mm Thk

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

17

J903380

SEAL

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

19

J914856

GASKET,1.02mm Thk

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

20

J285747

GASKET

1шт.

Used on models with engine No. 326957A1 and 326964A1.

1шт.

Выбрано товаров: 42
