Запчасти Case IH 85XT (02-26) - GASKET KIT (VALVE GRIND) NORTH AMERICA JAF0236484 -, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

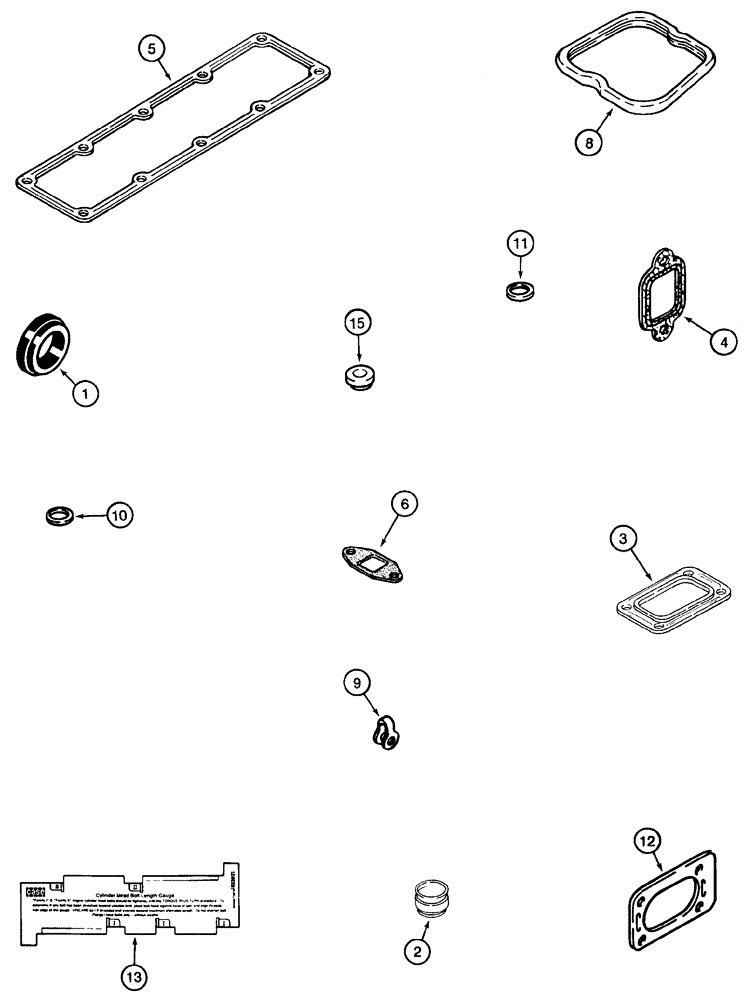

Схема запчастей Case IH 85XT - (02-26) - GASKET KIT (VALVE GRIND) NORTH AMERICA JAF0236484 -, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
8
3
13
4
10
9
6
5
1
12
15
2

Артикул

Название

Примечание

Количество

A77914

SEAL PACKAGE

Consists Of: Ref. 1 - 15

1шт.

1

J923331

GASKET

See Figure 02-27

1шт.

2

J901097

SEAL

See Figure 02-25

8шт.

3

J919369

GASKET,0.5mm Thk

Not Used

1шт.

4

J905443

MANIFOLD GASKET

See Figure 02-12

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-12

1шт.

6

J931350

GASKET

Not Used

1шт.

8

J930906

GASKET

See Figure 02-27

4шт.

9

J903380

SEAL

See Figure 03-06

4шт.

10

J906659

SEAL

7 mm, See Figure 03-13

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-13

4шт.

12

J914856

GASKET,1.02mm Thk

Not used

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-27, Replaces: J928406

1шт.

Выбрано товаров: 14
