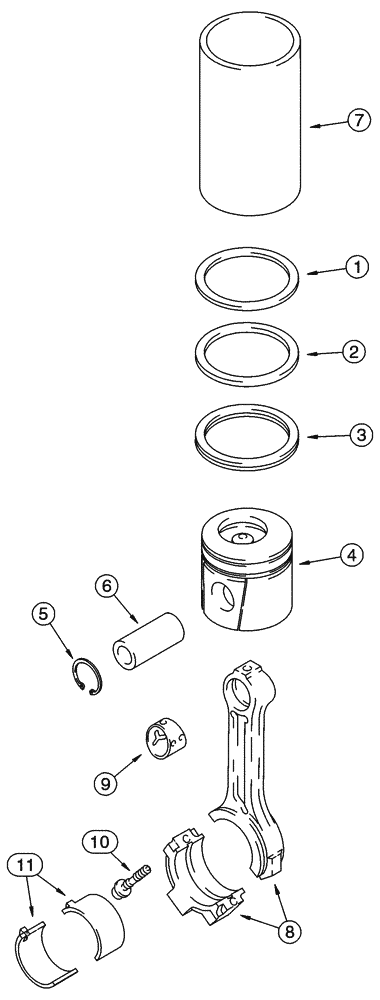

Запчасти Case IH 85XT (02-24A) - PISTONS CONNECTING RODS NORTH AMERICA, JAF0236484-, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J804980

PISTON & RINGS KIT

Standard, Consists Of: J804930 and Ref. 1 - 5

4шт.

J804930

PISTON RING SET

Standard, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

Replaces: J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces: J919053

1шт.

J804981

PISTON & RINGS KIT

Oversize, 0.5 mm, Consists Of: J804931 and Ref. 1 - 5

4шт.

J804931

PISTON RING SET

Oversize, 0.5 mm, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

Replaces: J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces: J919053

1шт.

J804982

PISTON & RINGS KIT

Oversize, 1.0 mm, Consists Of: J804932 and Ref. 1 - 5

1шт.

J804932

PISTON RING SET

Oversize, 1.0 mm, Consists Of: Ref. 1 - 3

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

Replaces: J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces: J919053

1шт.

7

J904166

SLEEVE

Use With J804980

1шт.

J942581

ROD, CONNECTING

Consists Of: Ref. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

4шт.

84145405R

REMAN-CONNECTING ROD

85XT, Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD

1шт.

9

J941476

BUSHING

Replaces J901085

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

Undersize, 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize, 0.50 mm

4шт.

11

A77468

BEARING SET

Undersize, 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize, 1.0 mm

4шт.
