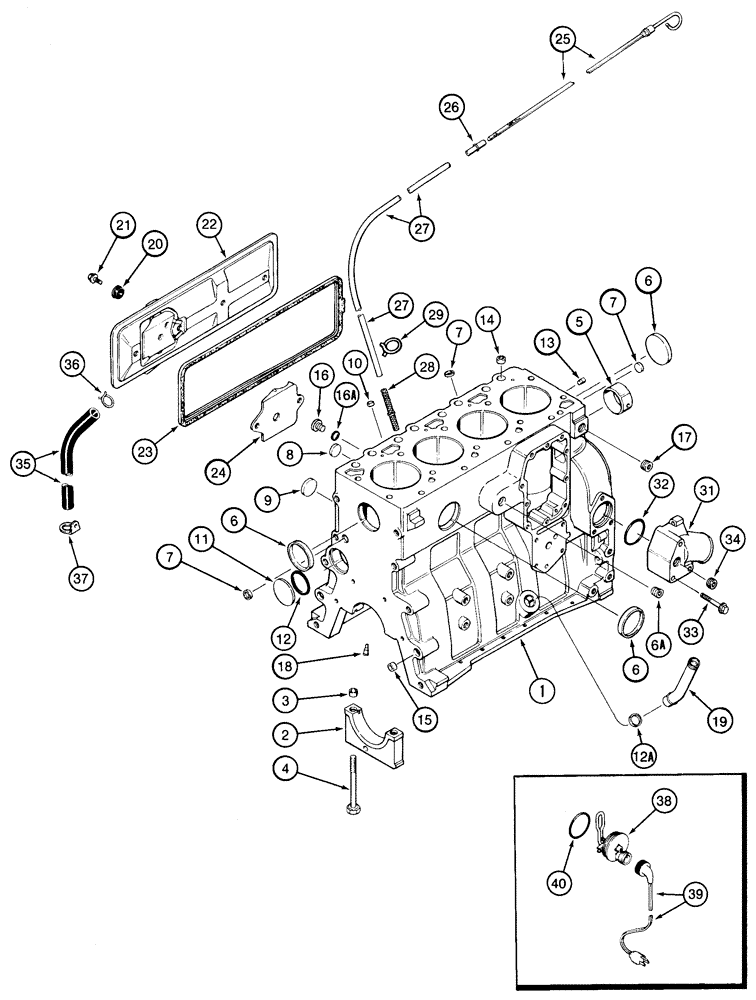

Запчасти Case IH 85XT (02-20) - CYLINDER BLOCK NORTH AMERICA, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
235611A1
ENGINE ASSEMBLY
ENGINE ASSY Engine Assy Complete Engine Less : Starter , Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order : 302562A1
1шт.
302562A1R
REMAN-BASIC ENGINE
Reman for New PN 235611A1
1шт.
302562A1C
CORE-BASIC ENGINE
Return Part Number
1шт.
302562A1
BASIC ENGINE
Engine Assy Basic Service Engine Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel & Housing, Oil Fill & Dipstick, Fuel Injection Pump, Injectors & Lines, Front Pulley, Belt Tensioner, Turbocharger & Aftercooler
1шт.
J933649
SHORT ENGINE
Block Assy With : Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of : 1 - 8
1шт.
JR933649
REMAN-SHORT ENGINE
Reman for New PN J933649
1шт.
JC933649
CORE-SHORT ENGINE
Return Part Number
1шт.
1
87444172
BLOCK ASSY.
Block Assy Stripped Consists Of : 2 - 8 Order J933220
1шт.
2
J900967
BEARING CAP
Cap
5шт.
Part of block assy. P/N J932012
1шт.
3
J900068
BEARING WASHER
Ring 18 mm OD
10шт.
Part of block assy. P/N J932012
1шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
Part of block assy. P/N J932012
1шт.
5
REF
INSTRUCTION
BUSHING, See Page (s) : 2-57
1шт.
Part of block assy. P/N J932012
1шт.
6
A77782
PLUG
Plug , Expansion 58 mm
1шт.
Part of block assy. P/N J932012
1шт.
6a
A77505
PLUG
Plug 3/4 PT
1шт.
Part of block assy. P/N J932012
1шт.
7
J900956
PLUG
Plug 18 mm OD
3шт.
Part of block assy. P/N J932012
1шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
Part of block assy. P/N J932012
1шт.
J933220
PACKAGE,SERVICE
Kit , Block Includes : 9 - 18
1шт.
9
J900958
PLUG
Plug 32 mm OD
2шт.
Part of service package P/N J933220
1шт.
10
J900955
PLUG
Plug 10 mm OD
1шт.
Part of service package P/N J933220
1шт.
11
172599
PLUG,Exp, 2 3/8"
Plug 60 mm OD, Includes : 12
1шт.
Part of service package P/N J933220
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
O-Ring 57 mm ID
1шт.
Part of service package P/N J933220
1шт.
Part of plug P/N 172599
1шт.
12a
J920706
PLUG
Plug , Expansion 22 mm
1шт.
Part of service package P/N J933220
1шт.
Part of service package P/N J933220
1шт.
14
J902343
DOWEL
Ring 16 mm OD
2шт.
Part of service package P/N J933220
1шт.
15
J900068
BEARING WASHER
Ring 18 mm OD
2шт.
Part of service package P/N J933220
1шт.
16
J678923
PLUG,M10 x 1
Plug , Hex Socket 10 mm, Includes : 16A
3шт.
Part of service package P/N J933220
1шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
Part of service package P/N J933220
1шт.
Part of plug P/N J678923
1шт.
17
A77429
PLUG
Plug 1/2 PT
1шт.
Part of service package P/N J933220
1шт.
17a
J678921
PLUG
Plug , Hex Socket 14 mm Not Used In This Application Includes : 17B
1шт.
Part of service package P/N J933220
1шт.
17b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not used in this application
1шт.
Part of service package P/N J933220
1шт.
Part of plug P/N J678921
1шт.
17c
J932296
PLUG
Plug Not Used In This Application Includes : 17D
1шт.
Part of service package P/N J933220
1шт.
17d
J330478
O-RING,0.07" Thk x 0.676" ID
O-Ring Not Used In This Application
1шт.
Part of service package P/N J933220
1шт.
Part of plug P/N J932296
1шт.
17e
844-8016
BOLT,Hex, M8 x 16mm, Cl 8.8
Not Used In This Application
1шт.
Part of service package P/N J933220
1шт.
18
J930139
NOZZLE CAP
Nozzle
4шт.
Part of service package P/N J933220
1шт.
19
J903744
PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L
Tube Not Used In This Application
1шт.
20
J900267
SEAL
Seal
4шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J925680
COVER
Cover
1шт.
23
J283767
GASKET,7.4mm Thk
Gasket , Cover
1шт.
24
J907586
BAFFLE
Baffle
1шт.
25
J933333
DIPSTICK
Dipstick
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
End
1шт.
27
J905801
TUBE
Tube
1шт.
28
A77645
TUBE
Tube
1шт.
29
214-1308
HOSE CLAMP,#8, 1/2", Spring
2шт.
31
J903102
CONNECTION
Connector
1шт.
32
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
O-Ring 50 mm ID
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
Plug 1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
Clamp
1шт.
37
J928989
CLIP
Clip
1шт.
196803A1
KIT
Kit , Coolant Heater 120V Consists Of : 38 - 40 ENGINE BLOCK HEATER 31275 120V
1шт.
38
NSS
NOT SOLD SEPARAT
ELEMENT ENGINE BLOCK HEATER 31275 120V
1шт.
Part of kit P/N 196803A1
1шт.
39
196466A1
ELECTRIC CABLE
Cable 1829 mm (72 in.) ENGINE BLOCK HEATER 31275 120V
1шт.
Part of kit P/N 196803A1
1шт.
40
J910517
O-RING
O-Ring ENGINE BLOCK HEATER 31275 120V
1шт.
Part of kit P/N 196803A1
1шт.
41
J916662
UNIT HEATER
Element 240V Not Illustrated ENGINE BLOCK HEATER 31275
1шт.
42
112837A1
PLUG
Wire Not Illustrated ENGINE BLOCK HEATER 31275 240V
1шт.
43
331-83
Lubricant 1/2 oz. Not Illustrated ENGINE BLOCK HEATER 31275 240V
1шт.
44
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP Strap 15 in. Not Illustrated ENGINE BLOCK HEATER 31275 240V
1шт.
A77893
PACKAGE, REPAIR
Kit , Repair No Longer Available, Order : J804980 Engine Block Not Illustrated Consists Of : 45 - 52
1шт.
45
J804980
PISTON & RINGS KIT
Kit , Piston See Page (s) 2-125 REPAIR
4шт.
Part of repair package P/N A77893
1шт.
46
J919053
PISTON PIN
See page(s): 2-125, Repair Kit
4шт.
Part of repair package P/N A77893
1шт.
47
BEARING SET,69mm ID x 73.53mm OD x 31mm W
Bearing , Con. Rod See Page (s) 2-129 REPAIR KIT
4шт.
Part of repair package P/N A77893
1шт.
48
J804940
BEARING SET
Bearing , Crankshaft See Page (s) 2-103 REPAIR KIT
4шт.
Part of repair package P/N A77893
1шт.
49
A77860
GASKET KIT
Package , Gaskets See Page (s) 2-153 REPAIR KIT
1шт.
Part of repair package P/N A77893
1шт.
50
A77914
SEAL PACKAGE
Package , Gaskets See Page (s) 2-135 REPAIR KIT
1шт.
Part of repair package P/N A77893
1шт.
51
J283333
CYLINDER HEAD GASKET,2.32mm Thk
Gasket , Cyl. Head See Page (s) 2-39 REPAIR KIT
1шт.
Part of repair package P/N A77893
1шт.
52
A77673
GASKET KIT
Package , Gaskets See Page(s) 2-35, REPAIR KIT
1шт.
Part of repair package P/N A77893
1шт.
Выбрано товаров: 109
