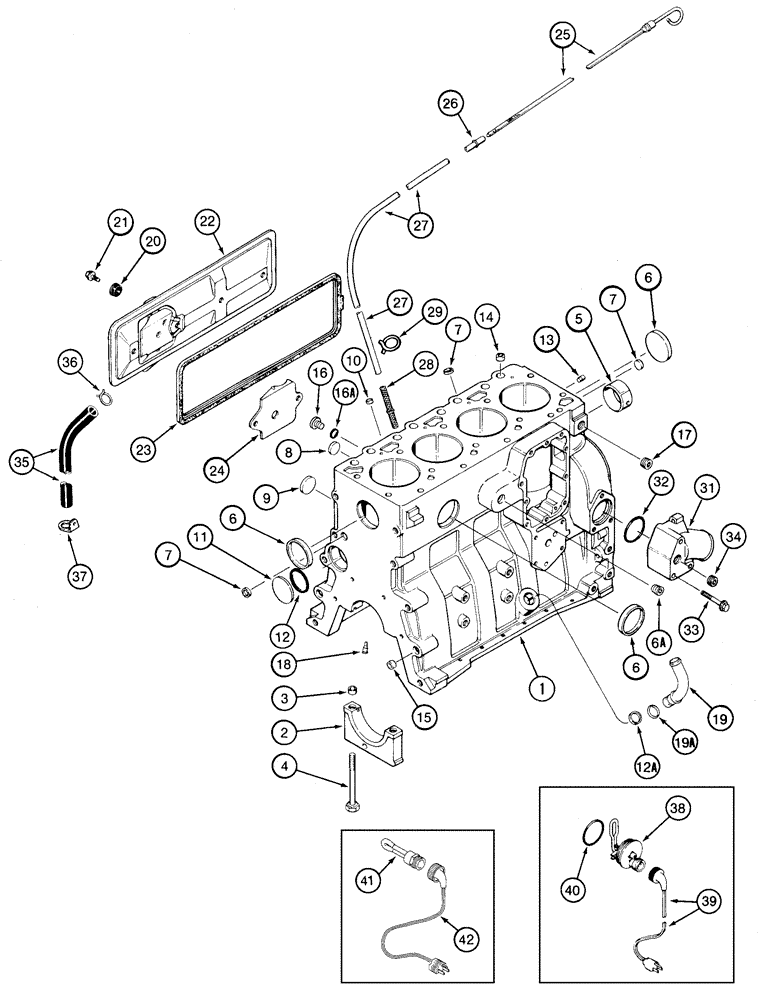

Запчасти Case IH 85XT (02-19) - CYLINDER BLOCK NORTH AMERICA/EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

326957A1

ENGINE ASSEMBLY

ENGINE ASSY Engine Assy Europe Only Complete Engine Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe Order : 377987A1

1шт.

326964A1

ENGINE ASSEMBLY

ENGINE ASSY Engine Assy N.A. Only Complete Engine Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order : 377987A1

1шт.

377987A1

BASIC ENGINE,4 Cylinders

Engine Basic Service Engine Less : Starter, Alternator, Fan and Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

377987A1R

REMAN-BASIC ENGINE,4 Cylinders

With Three Bolt Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

377987A1C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

1

J933649

SHORT ENGINE

Block Assy Short With : Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Order : J933220

1шт.

1

87444172

BLOCK ASSY.

Block Assy Stripped Includes : 2 - 8 Order : J933220

1шт.

2

J936791

BEARING CAP

Cap

5шт.

Part of block assy. P/N J932012

1шт.

3

J900068

BEARING WASHER

Ring 18 mm OD

10шт.

Part of block assy. P/N J932012

1шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

Part of block assy. P/N J932012

1шт.

5

REF

INSTRUCTION

BUSHING, See Page (s) : 2-55, 2-57

1шт.

Part of block assy. P/N J932012

1шт.

6

A77782

PLUG

Plug , Expansion 58 mm

1шт.

Part of block assy. P/N J932012

1шт.

6a

A77505

PLUG

Plug 3/4 PT

1шт.

Part of block assy. P/N J932012

1шт.

7

J900956

PLUG

Plug 18 mm OD

3шт.

Part of block assy. P/N J932012

1шт.

8

41-1616

PLUG,Cup, 1", Stainless

3шт.

Part of block assy. P/N J932012

1шт.

J933220

PACKAGE,SERVICE

Kit , Block Consists Of : 9 - 18

1шт.

9

J900958

PLUG

Plug 32 mm OD

2шт.

Part of service package P/N J933220

1шт.

10

J900955

PLUG

Plug 10 mm OD

3шт.

Part of service package P/N J933220

1шт.

11

172599

PLUG,Exp, 2 3/8"

Plug 60 mm OD, Includes: Ref. 12

1шт.

Part of service package P/N J933220

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-Ring 57 mm ID

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N 172599

1шт.

12a

J920706

PLUG

Plug , Expansion 22 mm

5шт.

Part of service package P/N J933220

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

Pin16 mm

2шт.

Part of service package P/N J933220

1шт.

14

J902343

DOWEL

Ring 16 mm OD

2шт.

Part of service package P/N J933220

1шт.

15

J900068

BEARING WASHER

Ring 18 mm OD

2шт.

Part of service package P/N J933220

1шт.

16

J678923

PLUG,M10 x 1

Plug , Hex Socket 10 mm Includes: 16A

2шт.

Part of service package P/N J933220

1шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J678923

1шт.

17

A77429

PLUG

Plug 1/2 PT

1шт.

Part of service package P/N J933220

1шт.

17a

J678921

PLUG

Plug , Hex Socket 14 mm, Includes : 17B Not Illustrated

1шт.

Part of service package P/N J933220

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not Illustrated

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J678921

1шт.

17c

J932296

PLUG

Plug Includes : 17D Not Illustrated

1шт.

Part of service package P/N J933220

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-Ring Not Illustrated

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J932296

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Illustrated

1шт.

Part of service package P/N J933220

1шт.

18

J937214

NOZZLE CAP

Nozzle

4шт.

Part of service package P/N J933220

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

Tube Not Used In This Application

1шт.

19a

NSS

NOT SOLD SEPARAT

O-RING, Not Used In This Application

1шт.

20

J900267

SEAL

Seal

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

J936186

COVER

Cover

1шт.

23

J283767

GASKET,7.4mm Thk

Gasket , Cover

1шт.

24

J907586

BAFFLE

Baffle

1шт.

25

J933333

DIPSTICK

Dipstick

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

End

1шт.

27

J905801

TUBE

Tube

1шт.

28

A77645

TUBE

Tube

1шт.

29

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J934877

HYD CONNECTOR

Connector

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

Plug 1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

Clamp

1шт.

37

J928989

CLIP

Clip

1шт.

37a

J905401

PLUG

Plug , Expansion 35 mm Oil Filler Not Illustrated

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

39

196466A1

ELECTRIC CABLE

Cable 1829 mm (72 in.) ENGINE BLOCK HEATER 120 VOLT

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING Not Used In This Application ENGINE BLOCK HEATER 120 VOLT

1шт.

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl 38 - 40; Install Ref 38 In Place Of Ref 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6 Plug

1шт.

39

J905114

ELECTRIC CABLE

Cable, 240V - 750W

1шт.

40

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl 41, 42; Install Ref 41 In Place Of Ref 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6A Plug

1шт.

42

196466A1

ELECTRIC CABLE

Cable, 240V - 750W

1шт.

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl. 41 , 42; Install Ref. 41 In Place Of Ref. 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT ENGINE BLOCK HEATER 240 VOLT

1шт.

42

J905114

ELECTRIC CABLE

Cable 1829 mm (72 in.) ENGINE BLOCK HEATER 240 VOLT

1шт.
