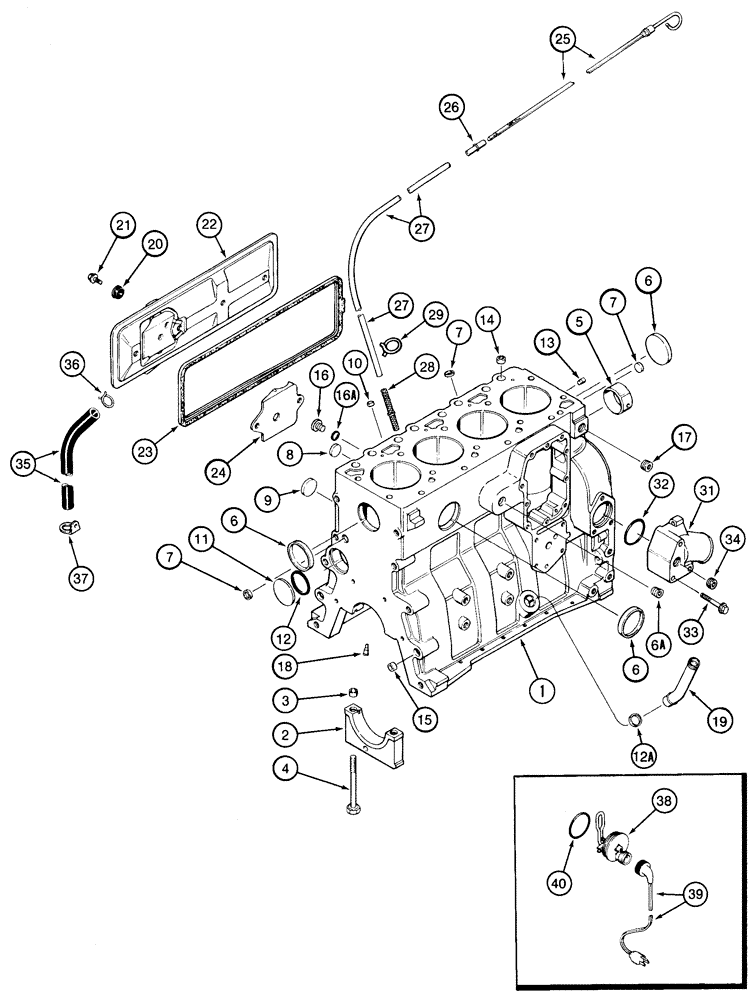

Запчасти Case IH 85XT (02-18) - CYLINDER BLOCK NORTH AMERICA - JAF0236483, 4-390 ENGINE (02) - ENGINE

186891A2

ENGINE ASSEMBLY

ENGINE ASSY Complete, 4-390, Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 1989091C2

1шт.

1989091C2

BASIC ENGINE

Service, 4-390, Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

377987A1R

REMAN-BASIC ENGINE,4 Cylinders

With Three Bolt Hole Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

377987A1C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

1

J933238

SKELETON ENGINE

Short, 4-390, With: Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Order J933220

1шт.

1

JR933238

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

1

87444172

BLOCK ASSY.

Stripped, 4-390 Engine, Order J933220, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

CAP, Replaces: J900967

5шт.

Part of block assy. P/N J932012

1шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

Part of block assy. P/N J932012

1шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

Part of block assy. P/N J932012

1шт.

5

REF

INSTRUCTION

BUSHING, See Page(s) 2-57

1шт.

Part of block assy. P/N J932012

1шт.

6

A77782

PLUG

58 mm

1шт.

Part of block assy. P/N J932012

1шт.

6a

A77505

PLUG

3/4 PT

1шт.

Part of block assy. P/N J932012

1шт.

7

J900956

PLUG

18 mm OD

3шт.

Part of block assy. P/N J932012

1шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

Part of block assy. P/N J932012

1шт.

J933220

PACKAGE,SERVICE

Replaces: J933224, Consists Of: Ref. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

Part of service package P/N J933220

1шт.

10

J900955

PLUG

10 mm OD

1шт.

Part of service package P/N J933220

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD Includes: Ref. 12

1шт.

Part of service package P/N J933220

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N 172599

1шт.

12a

J920706

PLUG

22 mm

1шт.

Part of service package P/N J933220

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

Part of service package P/N J933220

1шт.

14

J902343

DOWEL

16 mm OD

2шт.

Part of service package P/N J933220

1шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

Part of service package P/N J933220

1шт.

16

J678923

PLUG,M10 x 1

10 mm, Replaces 233426A1, 4-390 Engine, Includes: Ref. 16A

2шт.

Part of service package P/N J933220

1шт.

16a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J678923

1шт.

17

A77429

PLUG

1/2 PT

1шт.

Part of service package P/N J933220

1шт.

17a

J678921

PLUG

14 mm, Includes: Ref. 17B, Not Used In This Application

1шт.

Part of service package P/N J933220

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J678921

1шт.

17c

J932296

PLUG

Includes: Ref. 17D, Not Used In This Application

1шт.

Part of service package P/N J933220

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application

1шт.

Part of service package P/N J933220

1шт.

Part of plug P/N J932296

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application

1шт.

Part of service package P/N J933220

1шт.

18

J930139

NOZZLE CAP

4шт.

Part of service package P/N J933220

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

Not Used In This Application

1шт.

20

J900267

SEAL

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

Replaces J928831, 4-390 Engine

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

J903102

CONNECTION

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

A77429

PLUG

1/2 PT

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

196803A1

KIT

120V, Engine Block Heater, Consists Of: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT Engine Block Heater, 120 volt

1шт.

Part of kit P/N 196803A1

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in.), Engine Block Heater, 120 volt

1шт.

Part of kit P/N 196803A1

1шт.

40

J910517

O-RING

240 volt, Engine Block Heater

1шт.

Part of kit P/N 196803A1

1шт.

41

J916662

UNIT HEATER

240V, Engine Block Heater, Not Illustrated

1шт.

42

112837A1

PLUG

Engine Block Heater, Not Illustrated

1шт.

43

331-83

1/2 oz., Engine Block Heater, Not Illustrated

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in., Engine Block Heater, Not Illustrated

1шт.
