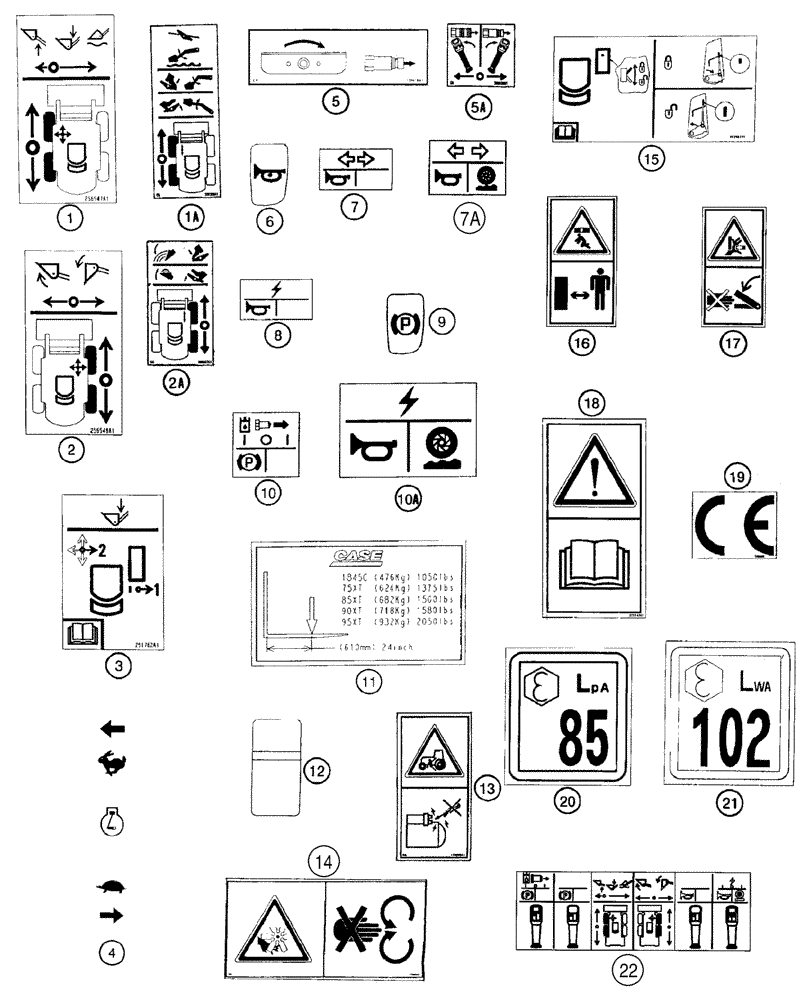

Запчасти Case IH 85XT (09-63) - DECALS (09) - CHASSIS

1

256547A1

DECAL

Joystick Control, Left-Hand

1шт.

1a

308326A1

DECAL

Left-Hand, Models With Foot Controls

1шт.

2

256548A1

DECAL

Joystick Control, Right-Hand

1шт.

2a

308327A1

DECAL

Right-Hand, Models With Foot Controls

1шт.

3

251762A1

DECAL

Loader Bypass

1шт.

4

251752A1

DECAL

Throttle

1шт.

5

139618A1

DECAL

Auxiliary Hydraulics

1шт.

5a

308328A1

DECAL

Auxiliary Hydraulics, Models With Foot Controls

1шт.

6

251754A1

DECAL

Horn, If Used

1шт.

7

251755A1

DECAL

Horn and Turn Signal, If Used

1шт.

7a

384898A1

DECAL

Horn, Turn Signal, Ride Control, If Used

1шт.

8

251756A1

DECAL

Horn and Electric

1шт.

9

251757A1

DECAL

Parking Brake, If Used

1шт.

10

276206A1

DECAL

Brake, High Flow, If Used

1шт.

10a

311052A1

DECAL

Horn, Electric, Ride Control

1шт.

11

248702A2

DECAL

Load Rating

1шт.

11a

127550A1

ADHESIVE STRIP

150 x 35 mm, Used With

2шт.

12

284152A1

DECAL

Red, Yellow, Green, Coupler Engagement Indicator

2шт.

13

175509A1

WARNING DECAL

Starting In Gear

1шт.

14

175504A1

DECAL

Keep Clear

1шт.

15

283557A1

DECAL

Hydraulic Coupler Lock

1шт.

16

294947A1

DECAL

Stay Clear

1шт.

17

278215A1

DECAL

Pinch Point

1шт.

18

256147A1

DECAL

Read The Operator's Manual

1шт.

19

176262A1

DECAL

60 mm, CE Symbol, Europe Only, If Used

1шт.

20

259801A1

DECAL

Europe Only

1шт.

21

316504A1

DECAL

102 dBA, Europe Only

1шт.

22

426966A1

DECAL

Control Switch Identification, If Used

1шт.
