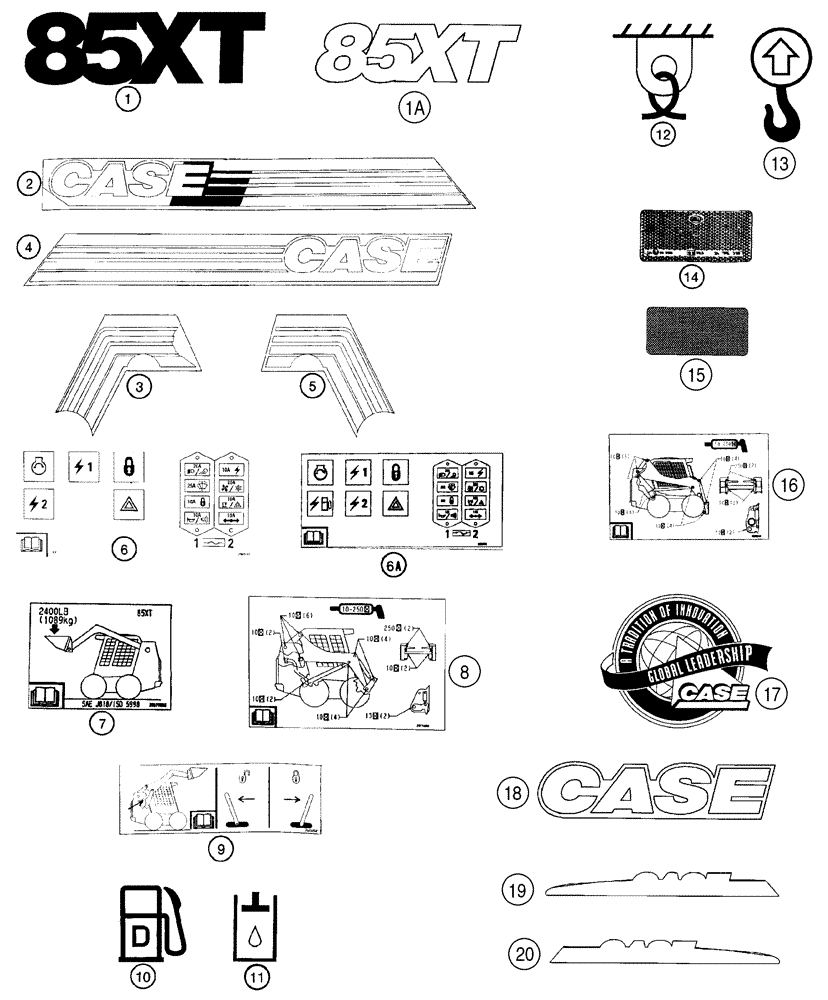

Запчасти Case IH 85XT (09-62) - DECALS (09) - CHASSIS

1

245048A1

DECAL

6 x 20-1/4 in., If Used

2шт.

1a

419901A1

DECAL

3-5/8 x 12-9/32 in., If Used

2шт.

2

292922A1

DECAL

Upper Left-Hand, If Used

1шт.

3

292923A1

DECAL

Stripes, Lower Left-Hand, If Used

1шт.

4

292920A1

DECAL

Upper Right-Hand, If Used

1шт.

5

292921A1

DECAL

Stripes, Lower Right-Hand, If Used

1шт.

6

256751A1

DECAL

Fuse and Relay, Europe Only

1шт.

6a

315955A1

DECAL

Fuse and Relay, North America Only

1шт.

7

256755A3

DECAL

Operating Capacity

1шт.

8

257744A1

DECAL

Lubrication, No Longer Used, Order 331704A1, Ref. 16

1шт.

9

256365A2

DECAL

Lock/Unlock

1шт.

10

139879A1

DECAL

Diesel Fuel

1шт.

11

251753A1

DECAL

Hydraulic Fluid

1шт.

12

139728A1

DECAL

Tie Down

4шт.

13

139729A1

DECAL

Lift Hook

1-3шт.

14

121573A1

REFLECTOR,94mm L X 44mm W

Plastic, Red, Set of 2, If Equipped

1шт.

15

294752A1

REFLECTOR,94mm L X 44mm W

Reflector, Red, If Equipped

2шт.

16

331704A1

DECAL

Lubrication

1шт.

17

279386A1

DECAL

Heritage

1шт.

18

417653A1

DECAL

5-3/8 x 25 in., If Used

2шт.

18

87389373

DECAL

Case, 5-3/8 x 25 in; Replaces 417653A1

2шт.

19

417665A1

DECAL

Case, With Stripes, Left-Hand, If Used

1шт.

20

417667A1

DECAL

Case, With Stripes, Right-Hand, If Used

1шт.
