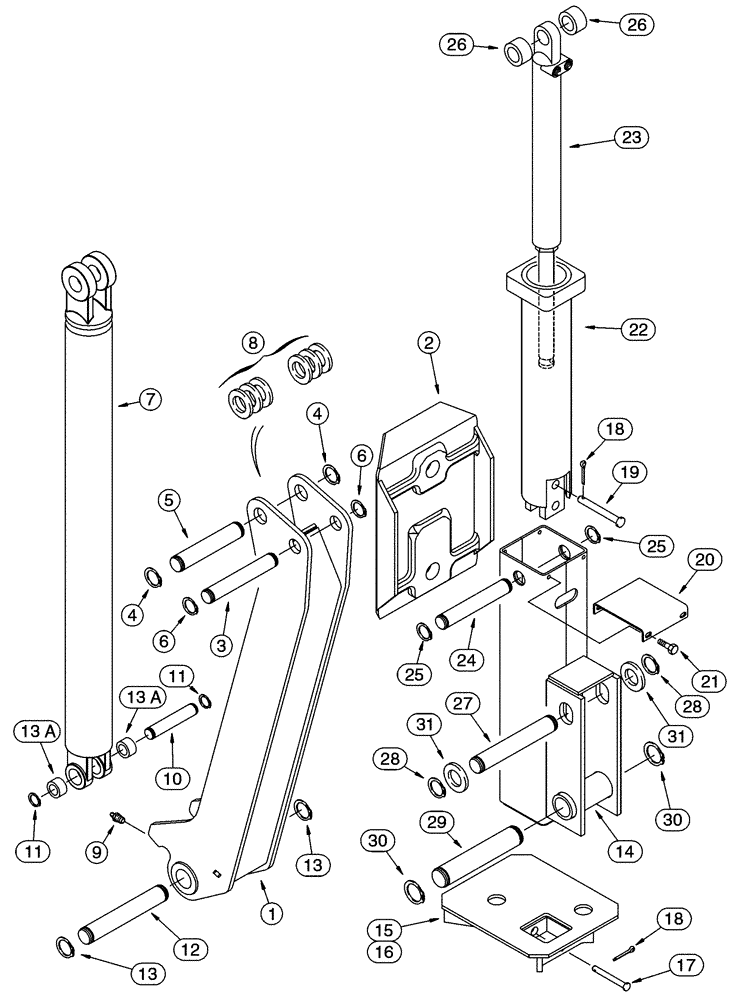

Запчасти Case IH 85XT (09-58) - BACKHOE STABILIZERS NORTH AMERICA, D125, FOLD DOWN STABILIZERS (09) - CHASSIS

1

H674650

STABILIZER

2шт.

2

H434430

LARGE PLATE

PLATE, LARGE

2шт.

3

H434379

PIN,28.63mm OD x 151mm L

2шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

H434380

PIN

2шт.

6

100-16112

SNAP RING,#112, Ext

4шт.

7

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

Stabilizer, 76 ID x 406 mm strk, See Figure 08-56

2шт.

8

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32

12шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

H434381

PIN,31.8mm OD x 31.8mm L

2шт.

11

103-16125

SNAP RING,#125, Ext

4шт.

12

H434382

PIN,38.15mm OD x 204mm L

2шт.

13

D25279

SNAP RING,M35, Int

4шт.

13a

103502A1

SPECIAL NUT

Vertical Stabilizers

4шт.

14

H674844

STABILIZER

vertical stabilizers

2шт.

15

H514570

PAD

Right-Hand, vertical stabilizers

1шт.

16

H514562

PAD

Left-Hand, vertical stabilizers

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

vertical stabilizers

2шт.

18

432-816

COTTER PIN,1/8" x 1"

Vertical stabilizers

4шт.

19

H51870

PIN

vertical stabilizers

2шт.

20

H438853

COVER

vertical stabilizers

2шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

Vertical stabilizers

8шт.

22

H514554

STABILIZER

vertical stabilizers

2шт.

23

H514117

CYLINDER BLOCK

Stabilizer, 51 ID x 305 mm strk, See Figure 08-57, vertical stabilizers

2шт.

24

H50831

PIVOT PIN,28.57mm OD x 139.7mm L

vertical stabilizers

2шт.

25

103-11112

SNAP RING,#112, Ext

Vertical stabilizers

4шт.

26

H52068

SPACER

vertical stabilizers

4шт.

27

H434381

PIN,31.8mm OD x 31.8mm L

Upper, vertical stabilizers

2шт.

28

103-16125

SNAP RING,#125, Ext

Vertical stabilizers

4шт.

29

H434382

PIN,38.15mm OD x 204mm L

Lower, vertical stabilizers

2шт.

30

D25279

SNAP RING,M35, Int

vertical stabilizers

4шт.

31

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32, vertical stabilizers

8шт.
