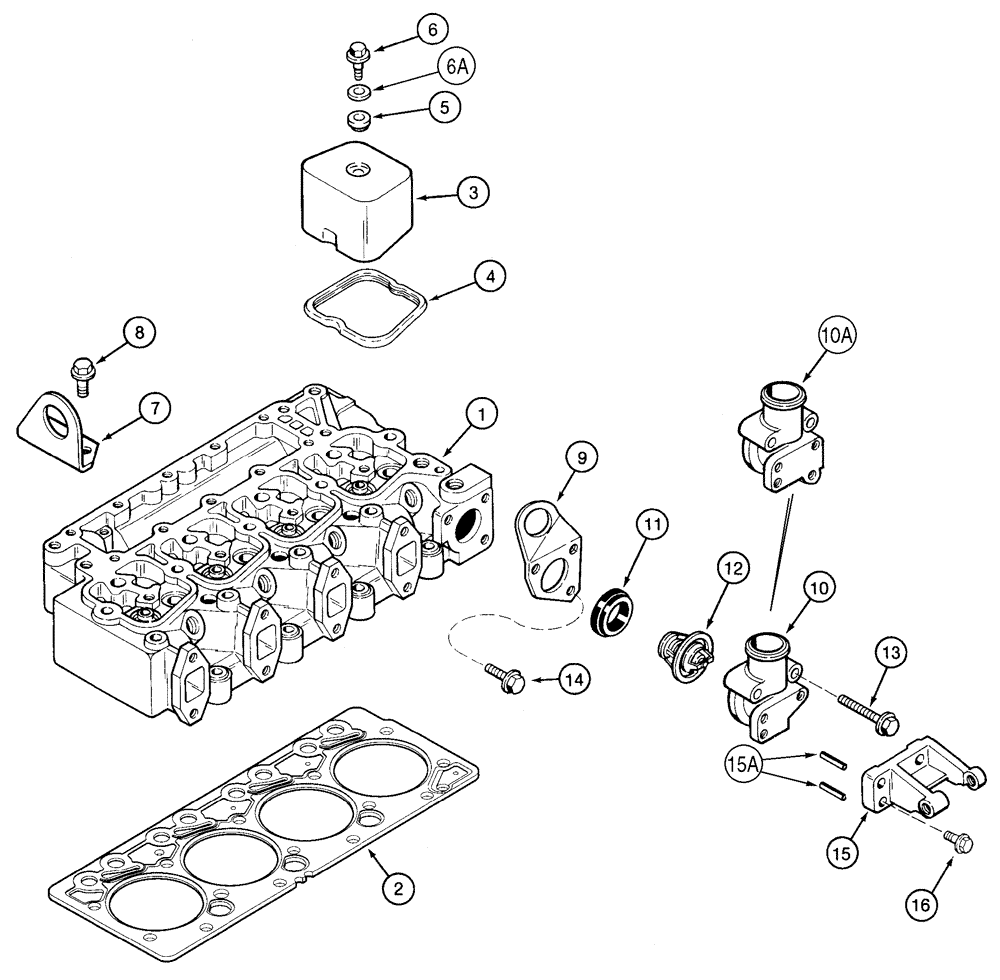

Запчасти Case IH 85XT (02-15) - CYLINDER HEAD COVER NORTH AMERICA *- JAF0236483, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD ASSY., See Page(s) 2-43, 2-47, 2-51

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Gasket , Cyl. Head

1шт.

2

J283336

GASKET

Gasket , Cyl. Head 0 , 25 mm, Notch : 1

1шт.

2

J283338

GASKET

Gasket , Cyl. Head 0 , 50 mm, Notch : 2

1шт.

3

J928404

COVER

Cover

4шт.

4

J930906

GASKET

Seal

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Isolator

4шт.

6

J907049

BOLT,Hex

Botl , Flange M8 x 21

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), If used

4шт.

7

J908118

BRACKET

Bracket

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

J903757

BRACKET

Bracket THERMOSTAT AND HOUSING

1шт.

10

J914409

HOUSING

Housing THERMOSTAT AND HOUSING

1шт.

A77736

THERMOSTAT

Kit Thermostat Consists Of : 11, 12 AND HOUSING

1шт.

11

J923331

GASKET

Gasket , Housing THERMOSTAT AND

1шт.

Part of thermostat package P/N A77736

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat AND HOUSING

1шт.

Part of thermostat package P/N A77736

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

Bolt M8 x 70 mm THERMOSTAT AND HOUSING

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

Support THERMOSTAT AND HOUSING

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

Pin , Roll If Used, THERMOSTAT AND HOUSING

2шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
