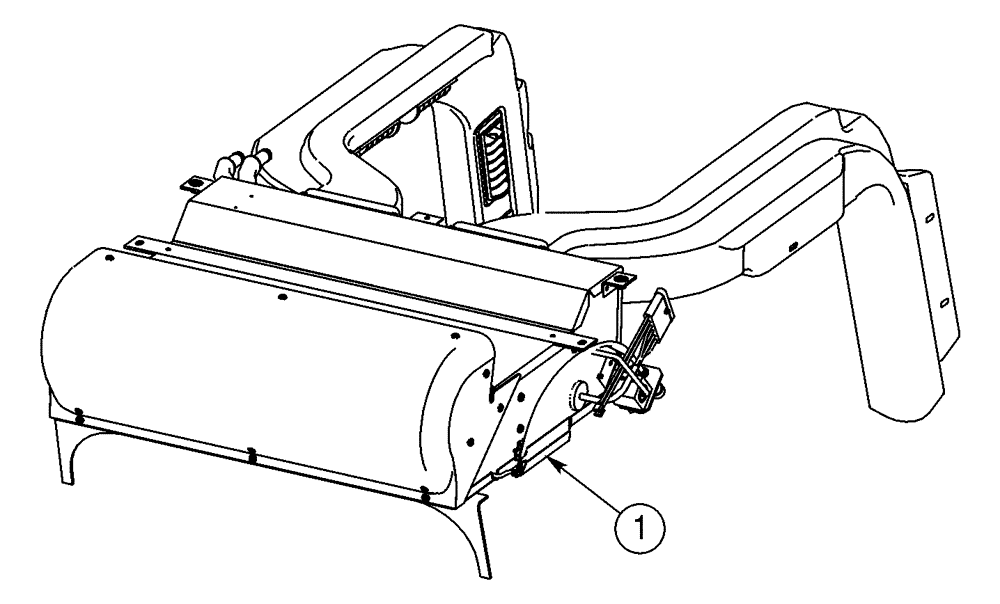

Запчасти Case IH 85XT (09-51) - AIR CONDITIONING SYSTEM (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
291147A2
North American Models -JAF0319222, European Models -JAF0352674, Includes: Ref. 2 - 53, Component Parts Not Illustrated
1шт.
2
178454A2
BLOWER ASSY.
Blower, 12V, North American Models -JAF0319222, European Models -JAF0352674
1шт.
178454A2R
REMAN-BLOWER
85XT
1шт.
178454A2C
CORE-BLOWER
Return Number
1шт.
4
359504A1
RESISTOR
North American Models -JAF0319222, European Models -JAF0352674
1шт.
5
307155A1
WASHER
Resistor Mounting, North American Models -JAF0319222, European Models -JAF0352674
1шт.
7
315068A1
BALL KNOB
Blower, North American Models -JAF0319222, European Models -JAF0352674
1шт.
8
317721A1
BALL KNOB
Control, North American Models -JAF0319222, European Models -JAF0352674
1шт.
9
284621A1
HOUSING
Air Intake, North American Models -JAF0319222, European Models -JAF0352674
1шт.
10
309568A1
DIFFUSER
Rectangular, North American Models -JAF0319222, European Models -JAF0352674
8шт.
11
309569A1
DIFFUSER
Round, North American Models -JAF0319222, European Models -JAF0352674
2шт.
12
317687A1
PAN ASSY.
Drain, North American Models -JAF0319222, European Models -JAF0352674
1шт.
13
317726A1
FILTER
North American Models -JAF0319222, European Models -JAF0352674
1шт.
14
298690A1
COIL
Condenser, North American Models -JAF0319222, European Models -JAF0352674
1шт.
15
317718A1
HARNESS
Wire, North American Models -JAF0319222, European Models -JAF0352674
1шт.
16
317720A1
CONTROL
Thermostat, North American Models -JAF0319222, European Models -JAF0352674
1шт.
17
317723A1
KNOB
Thermostat, North American Models -JAF0319222, European Models -JAF0352674
1шт.
18
317724A1
EVAPORATOR
and Heater, North American Models -JAF0319222, European Models -JAF0352674
1шт.
19
VALVE
Replaces 317725A1; North American Models -JAF0319222, European models -JAF0352674
1шт.
20
109239C2
CHECK VALVE
Drain Hose, North American Models -JAF0319222, European Models -JAF0352674
1шт.
21
122579A1
SWITCH, A/C LOW PRES
Low, North American Models -JAF0319222, European Models -JAF0352674
1шт.
22
1964672C1
LIGHT
ASSY., 14V, North American Models -JAF0319222, European Models -JAF0352674, Includes: 223-155, 225091C1
1шт.
223-155
ELEC CONNECTOR,Female, 1 Pin
North American Models -JAF0319222, European Models -JAF0352674
2шт.
Part of light assy. P/N 1964672C1
1шт.
225091C1
TERMINAL CONNECTOR,Female, 0.8 mm2
North American Models -JAF0319222, European Models -JAF0352674
1шт.
Part of light assy. P/N 1964672C1
1шт.
23
1990758C2
RECEIVER-DRYER
Reservoir, North American Models -JAF0319222, European Models -JAF0352674
1шт.
24
284273A2
SWITCH, A/C HIGH PRE
High Pressure, North American Models -JAF0319222, European Models -JAF0352674
1шт.
25
298855A1
A/C HOSE
Evaporator To Bulkhead, #10 - 12, North American Models -JAF0319222, European Models -JAF0352674
1шт.
26
298856A1
A/C HOSE
Bulkhead To Evaporator, #6, North American Models -JAF0319222, European Models -JAF0352674
1шт.
27
298857A1
A/C HOSE
Receiver-Drier To Bulkhead, #6, North American Models -JAF0319222, European Models -JAF0352674
1шт.
28
298858A1
A/C HOSE
Compressor To Condenser, #8, North American Models -JAF0319222, European Models -JAF0352674
1шт.
296298A1
Hose, Used In Production, For Service Order 298867A1, Ref. 29, 298868A1, Ref. 30, North American Models -JAF0319222, European Models -JAF0352674, Includes: 298867A1, Ref. 29, 298868A1, Ref. 30
1шт.
29
298867A1
A/C HOSE
Condenser To Receiver-Drier, North American Models -JAF0319222, European Models -JAF0352674
1шт.
Part of P/N 296298A1
1шт.
30
298868A1
A/C HOSE
Bulkhead To Compressor, North American Models -JAF0319222, European Models -JAF0352674
1шт.
Part of P/N 296298A1
1шт.
31
NSS
NOT SOLD SEPARAT
HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
32
NSS
NOT SOLD SEPARAT
HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
33
NSS
NOT SOLD SEPARAT
HOSE Supply, Bulkhead To Evaporator, 2311 mm (91 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
34
NSS
NOT SOLD SEPARAT
HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in.), Cut From 97252C1, North American Models -JAF0319222, European Models -JAF0352674
1шт.
35
NSS
NOT SOLD SEPARAT
HOSE Return, Bulkhead To Evaporator, 2311 mm (91 in.), Cut From 97252C1, North American Models -JAF0319222, European Models -JAF0352674
1шт.
36
299022A1
CLAMP
Receiver-Drier, North American Models -JAF0319222, European Models -JAF0352674
1шт.
37
299028A1
FITTING
Bulkhead, #6, North American Models -JAF0319222, European Models -JAF0352674
1шт.
38
299030A1
FITTING
Bulkhead, #10, North American Models -JAF0319222, European Models -JAF0352674
1шт.
39
398757A1
THUMB SCREW,#12 x 1.11", W/ Nylon Wshr
Filter Mounting, #12, North American Models -JAF0319222, European Models -JAF0352674
1шт.
40
398758A1
SPECIAL WASHER
Filter Mounting, North American Models -JAF0319222, European Models -JAF0352674
1шт.
41
284910A1
DUCT
Right-Hand, North American Models -JAF0319222, European Models -JAF0352674
1шт.
42
284911A1
DUCT
Left-Hand, North American Models -JAF0319222, European Models -JAF0352674
1шт.
43
299020A1
VALVE
Water Heater, North American Models -JAF0319222, European Models -JAF0352674
1шт.
44
299039A1
ELEC SUPPORT PLATE
Right-Hand, Wire Harness, North American Models -JAF0319222, European Models -JAF0352674
1шт.
45
299045A1
CABLE
Water Control Valve, North American Models -JAF0319222, European Models -JAF0352674
1шт.
46
299049A1
CONNECTION
Heater Hose, North American Models -JAF0319222, European Models -JAF0352674
1шт.
47
324986A1
SEAL
Evaporator Box to ROPS, 1200 mm (47-1/4 in.), North American Models -JAF0319222, European Models -JAF0352674
1шт.
48
299078A1
HARNESS
Wire, North American Models -JAF0319222, European Models -JAF0352674
1шт.
49
221-89
REDUCER,Hex, 1/2" x 3/8" NPT
North American Models -JAF0319222, European Models -JAF0352674
2шт.
50
393618A1
DECAL
Air Conditioning, See Figure 09-64, Ref. 2, North American Models -JAF0319222, European Models -JAF0352674
1шт.
51
393619A1
DECAL
Water Control Valve, See Figure 09-64, Ref. 3, North American Models -JAF0319222, European Models -JAF0352674
1шт.
52
393622A1
DECAL
Air Conditioning and Fan, See Figure 09-64, Ref. 4, North American Models -JAF0319222, European Models -JAF0352674
1шт.
53
299031A1
DECAL
see Figure 09-64, Ref. 5, North American Models -JAF0319222, European Models -JAF0352674
1шт.
1
373010A1
KIT, Not Serviced As An Assembly, Order Components, North American Models JAF0319223-, European Models JAF0352675-, Includes: Ref. 2 - 28, 36 - 46, 48 - 55, Component Parts Not Illustrated
1шт.
2
178454A2
BLOWER ASSY.
Blower, 12V, North American Models JAF0319223-, European Models JAF0352675-
1шт.
5
307155A1
WASHER
Resistor Mounting, North American Models JAF0319223-, European Models JAF0352675-
1шт.
7
315068A1
BALL KNOB
Blower, North American Models JAF0319223-, European Models JAF0352675-
1шт.
8
317721A1
BALL KNOB
Control, North American Models JAF0319223-, European Models JAF0352675-
1шт.
9
284621A1
HOUSING
Air Intake, North American Models JAF0319223-, European Models JAF0352675-
1шт.
10
363890A1
VENT
Rectangular, North American Models JAF0319223-, European Models JAF0352675-
8шт.
11
309569A1
DIFFUSER
Round, North American Models JAF0319223-, European Models JAF0352675-
2шт.
12
317687A1
PAN ASSY.
Drain, North American Models JAF0319223-, European Models JAF0352675-
1шт.
13
317726A1
FILTER
North American Models JAF0319223-, European Models JAF0352675-
1шт.
14
298690A1
COIL
Condenser, North American Models JAF0319223-, European Models JAF0352675-
1шт.
15
317718A1
HARNESS
Wire, North American Models JAF0319223-, European Models JAF0352675-
1шт.
16
317720A1
CONTROL
Thermostat, North American Models JAF0319223-, European Models JAF0352675-
1шт.
17
317723A1
KNOB
Thermostat, North American Models JAF0319223-, European Models JAF0352675-
1шт.
18
317724A1
EVAPORATOR
and Heater, North American Models JAF0319223-, European Models JAF0352675-
1шт.
19
317725A1
VALVE POPPET
North American Models JAF0319223-, European Models JAF0352675-
1шт.
20
109239C2
CHECK VALVE
Drain Hose, North American Models JAF0319223-, European Models JAF0352675-
1шт.
21
122579A1
SWITCH, A/C LOW PRES
Low, North American Models JAF0319223-, European Models JAF0352675-
1шт.
22
1964672C1
LIGHT
ASSY., 14V, North American models JAF0319223-, European Models JAF0352675-, Includes: 223-155, 225091C1
1шт.
223-155
ELEC CONNECTOR,Female, 1 Pin
North American Models JAF0319223-, European Models JAF0352675-
2шт.
Part of light assy. P/N 1964672C1
1шт.
225091C1
TERMINAL CONNECTOR,Female, 0.8 mm2
North American Models JAF0319223-, European Models JAF0352675-
1шт.
Part of light assy. P/N 1964672C1
1шт.
23
1990758C2
RECEIVER-DRYER
Reservoir, North American Models JAF0319223-, European Models JAF0352675-
1шт.
24
284273A2
SWITCH, A/C HIGH PRE
High Pressure, North American Models JAF0319223-, European Models JAF0352675-
1шт.
25
298855A1
A/C HOSE
Evaporator To Bulkhead, #10 - 12, North American Models JAF0319223-, European Models JAF0352675-
1шт.
26
298856A1
A/C HOSE
Bulkhead To Evaporator, #6, North American Models JAF0319223-, European Models JAF0352675-
1шт.
27
298857A1
A/C HOSE
Receiver-Drier To Bulkhead, #6, North American Models JAF0319223-, European Models JAF0352675-
1шт.
28
298858A1
A/C HOSE
Compressor To Condenser, #8, North American Models JAF0319223-, European Models JAF0352675-
1шт.
296298A1
Hose, Used In Production, For Service Order 298867A1, Ref. 29, 298868A1, Ref. 30, North American Models JAF0319223-, European Models JAF0352675-, Includes: 298867A1, Ref. 29, 298868A1, Ref. 30
1шт.
29
298867A1
A/C HOSE
Condenser To Receiver-Drier, North American Models JAF0319223-, European Models JAF0352675-
1шт.
Part of P/N 296298A1
1шт.
30
298868A1
A/C HOSE
Bulkhead To Compressor, North American Models JAF0319223-, European Models JAF0352675-
1шт.
Part of P/N 296298A1
1шт.
31
NSS
NOT SOLD SEPARAT
HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
32
NSS
NOT SOLD SEPARAT
HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
33
NSS
NOT SOLD SEPARAT
HOSE Supply, Bulkhead To Evaporator, 2311 mm (91 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
34
NSS
NOT SOLD SEPARAT
HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in.), Cut From 97252C1, North American Models JAF0319223-, European Models JAF0352675-
1шт.
35
NSS
NOT SOLD SEPARAT
HOSE Return, Bulkhead To Evaporator, 2311 mm (91 in.), Cut From 97252C1, North American Models JAF0319223-, European Models JAF0352675-
1шт.
36
299022A1
CLAMP
Receiver-Drier, North American Models JAF0319223-, European Models JAF0352675-
1шт.
37
299028A1
FITTING
Bulkhead, #6, North American Models JAF0319223-, European Models JAF0352675-
1шт.
38
299030A1
FITTING
Bulkhead, #10, North American Models JAF0319223-, European Models JAF0352675-
1шт.
39
398757A1
THUMB SCREW,#12 x 1.11", W/ Nylon Wshr
Filter Mounting, #12, North American Models JAF0319223-, European Models JAF0352675-
1шт.
40
398758A1
SPECIAL WASHER
Filter Mounting, North American Models JAF0319223-, European Models JAF0352675-
1шт.
41
284910A1
DUCT
Right-Hand, North American Models JAF0319223-, European Models JAF0352675-
1шт.
42
284911A1
DUCT
Left-Hand, North American Models JAF0319223-, European Models JAF0352675-
1шт.
43
299020A1
VALVE
Water Heater, North American Models JAF0319223-, European Models JAF0352675-
1шт.
44
299039A1
ELEC SUPPORT PLATE
Right-Hand, Wire Harness, North American Models JAF0319223-, European Models JAF0352675-
1шт.
45
299045A1
CABLE
Water Control Valve, North American Models JAF0319223-, European Models JAF0352675-
1шт.
46
299049A1
CONNECTION
Heater Hose, North American Models JAF0319223-, European Models JAF0352675-
1шт.
47
324986A1
SEAL
Evaporator Box to ROPS, 1200 mm (47-1/4 in.), North American Models JAF0319223-, European Models JAF0352675-
1шт.
48
299078A1
HARNESS
Wire, North American Models JAF0319223-, European Models JAF0352675-
1шт.
49
221-89
REDUCER,Hex, 1/2" x 3/8" NPT
North American Models JAF0319223-, European Models JAF0352675-
2шт.
50
393618A1
DECAL
Air Conditioning, See Figure 09-64, Ref. 2, North American Models JAF0319223-, European Models JAF0352675-
1шт.
51
393619A1
DECAL
Water Control Valve, See Figure 09-64, Ref. 3, North American Models JAF0319223-, European Models JAF0352675-
1шт.
52
393622A1
DECAL
Air Conditioning and Fan, See Figure 09-64, Ref. 4, North American Models JAF0319223-, European Models JAF0352675-
1шт.
53
299031A1
DECAL
See Figure 09-64, Ref. 5, North American Models JAF0319223-, European Models JAF0352675-
1шт.
54
373318A1
BRACKET
Top Rear Window, North American Models JAF0319223-, European Models JAF0352675-
1шт.
55
373380A1
BRACKET
Inner, Top Rear Window, North American Models JAF0319223-, European Models JAF0352675-
1шт.
Выбрано товаров: 124
