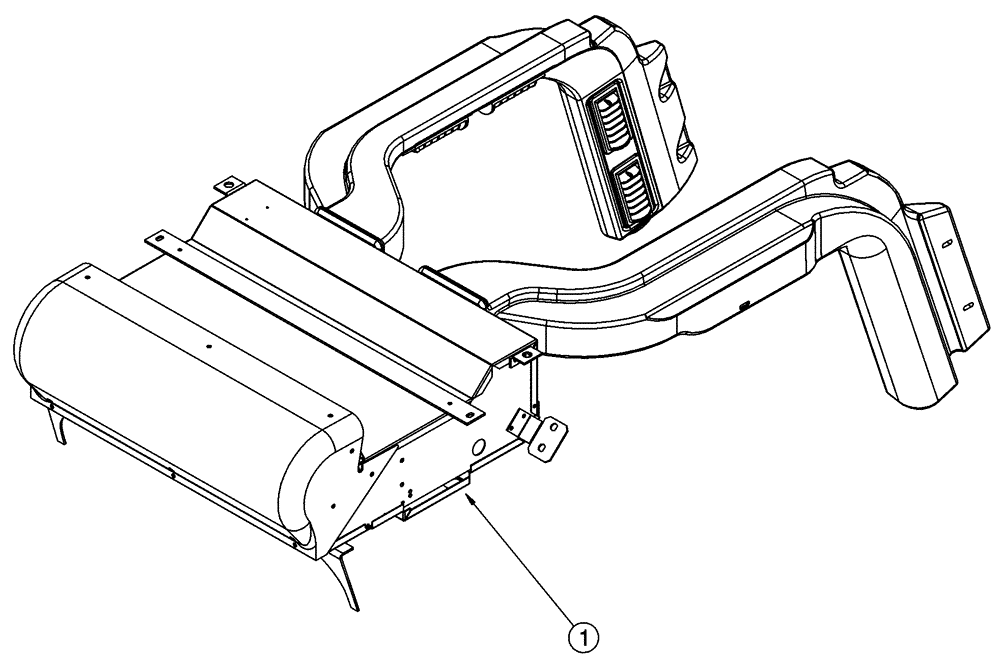

Запчасти Case IH 85XT (09-50) - HEATING SYSTEM HEATER, DELUXE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
304412A1
SET OF PARTS
Deluxe, North American Models -JAF0319222, European Models -JAF0352674, Includes: Ref. 2 - 28, Component Parts Not Illustrated
1шт.
2
178454A2
BLOWER ASSY.
12V, North American Models -JAF0319222, European Models -JAF0352674
1шт.
178454A2R
REMAN-BLOWER
85XT
1шт.
178454A2C
CORE-BLOWER
Return Number
1шт.
4
359504A1
RESISTOR
Replaces: 307153A1, North American Models -JAF0319222, European Models -JAF0352674
1шт.
5
307155A1
WASHER
Resistor Mounting, North American Models -JAF0319222, European Models -JAF0352674
1шт.
7
315068A1
BALL KNOB
Blower, North American Models -JAF0319222, European Models -JAF0352674
1шт.
8
317721A1
BALL KNOB
Control, North American Models -JAF0319222, European Models -JAF0352674
1шт.
9
284621A1
HOUSING
Air Intake, North American Models -JAF0319222, European Models -JAF0352674
1шт.
10
309568A1
DIFFUSER
Rectangular, North American Models -JAF0319222, European Models -JAF0352674
8шт.
11
309569A1
DIFFUSER
Round, North American Models -JAF0319222, European Models -JAF0352674
2шт.
12
317687A1
PAN ASSY.
Drain, North American Models -JAF0319222, European Models -JAF0352674
1шт.
13
317726A1
FILTER
North American Models -JAF0319222, European Models -JAF0352674
1шт.
14
317857A1
CONDENSER
Heater, North American Models -JAF0319222, European Models -JAF0352674
1шт.
15
317859A1
HARNESS
Heater, North American Models -JAF0319222, European Models -JAF0352674
1шт.
14
NSS
NOT SOLD SEPARAT
HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
16
NSS
NOT SOLD SEPARAT
HOSE Supply, Bulkhead To Heater Core, 2311 mm (91 in.), Cut From R54970, North American Models -JAF0319222, European Models -JAF0352674
1шт.
17
NSS
NOT SOLD SEPARAT
HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in.), Cut From 97252C1, North American Models -JAF0319222, European Models -JAF0352674
1шт.
18
NSS
NOT SOLD SEPARAT
HOSE Return, Bulkhead To Heater Core, 2311 mm (91 in.), Cut From 97252C1, North American Models -JAF0319222, European Models -JAF0352674
1шт.
19
398757A1
THUMB SCREW,#12 x 1.11", W/ Nylon Wshr
Filter Mounting, #12, North American Models -JAF0319222, European Models -JAF0352674
1шт.
20
398758A1
SPECIAL WASHER
Filter Mounting, North American Models -JAF0319222, European Models -JAF0352674
1шт.
21
284910A1
DUCT
Right-Hand, North American Models -JAF0319222, European Models -JAF0352674
1шт.
22
284911A1
DUCT
Left-Hand, North American Models -JAF0319222, European Models -JAF0352674
1шт.
23
299020A1
VALVE
Water Heater, North American Models -JAF0319222, European Models -JAF0352674
1шт.
24
299039A1
ELEC SUPPORT PLATE
Right-Hand, Wire Harness, North American Models -JAF0319222, European Models -JAF0352674
1шт.
25
299045A1
CABLE
Water Control Valve, North American Models -JAF0319222, European Models -JAF0352674
1шт.
26
299049A1
CONNECTION
Heater Hose, North American Models -JAF0319222, European Models -JAF0352674
1шт.
27
324986A1
SEAL
Evaporator Box to ROPS, 1200 mm (47-1/4 in.), North American Models -JAF0319222, European Models -JAF0352674
1шт.
28
403512A1
HARNESS
Cab, North American Models -JAF0319222, European Models -JAF0352674
1шт.
29
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
1/2 x 3/8, North American Models -JAF0319222, European Models -JAF0352674
2шт.
30
393618A1
DECAL
Air Conditioning, See Figure 09-64, Ref. 2, North American Models -JAF0319222, European Models -JAF0352674
1шт.
31
393619A1
DECAL
Water Control Valve, See Figure 09-64, Ref. 3, North American Models -JAF0319222, European Models -JAF0352674
1шт.
1
373011A1
HEATER
KIT Deluxe, Not Serviced As An Assembly, Order Components, North American Models JAF0319223-, European Models JAF0352675-, Includes: Ref. 2 - 31, Component Parts Not Illustrated
1шт.
2
178454A2
BLOWER ASSY.
Blower, 12V, North American Models JAF0319223-, European Models JAF0352675-
1шт.
5
307155A1
WASHER
Resistor Mounting, North American Models JAF0319223-, European Models JAF0352675-
1шт.
7
315068A1
BALL KNOB
Blower, North American Models JAF0319223-, European Models JAF0352675-
1шт.
8
317721A1
BALL KNOB
Control, North American Models JAF0319223-, European Models JAF0352675-
1шт.
9
284621A1
HOUSING
Air Intake, North American Models JAF0319223-, European Models JAF0352675-
1шт.
10
363890A1
VENT
Rectangular, North American Models JAF0319223-, European Models JAF0352675-
8шт.
11
309569A1
DIFFUSER
Round, North American Models JAF0319223-, European Models JAF0352675-
2шт.
12
317687A1
PAN ASSY.
Drain, North American Models JAF0319223-, European Models JAF0352675-
1шт.
13
317726A1
FILTER
North American Models JAF0319223-, European Models JAF0352675-
1шт.
14
317857A1
CONDENSER
Heater, North American Models JAF0319223-, European Models JAF0352675-
1шт.
15
317859A1
HARNESS
Heater, North American Models JAF0319223-, European Models JAF0352675-
1шт.
14
NSS
NOT SOLD SEPARAT
HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
16
NSS
NOT SOLD SEPARAT
HOSE Supply, Bulkhead To Heater Core, 2311 mm (91 in.), Cut From R54970, North American Models JAF0319223-, European Models JAF0352675-
1шт.
17
NSS
NOT SOLD SEPARAT
HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in.), Cut From 97252C1, North American Models JAF0319223-, European Models JAF0352675-
1шт.
18
NSS
NOT SOLD SEPARAT
HOSE Return, Bulkhead To Heater Core, 2311 mm (91 in.), Cut From 97252C1, North American Models JAF0319223-, European Models JAF0352675-
1шт.
19
398757A1
THUMB SCREW,#12 x 1.11", W/ Nylon Wshr
Filter Mounting, #12, North American Models JAF0319223-, European Models JAF0352675-
1шт.
20
398758A1
SPECIAL WASHER
Filter Mounting, North American Models JAF0319223-, European Models JAF0352675-
1шт.
21
284910A1
DUCT
Right-Hand, North American Models JAF0319223-, European Models JAF0352675-
1шт.
22
284911A1
DUCT
Left-Hand., North American Models JAF0319223-, European Models JAF0352675-
1шт.
23
299020A1
VALVE
Water Heater, North American Models JAF0319223-, European Models JAF0352675-
1шт.
24
299039A1
ELEC SUPPORT PLATE
Right-Hand, Wire Harness, North American Models JAF0319223-, European Models JAF0352675-
1шт.
25
299045A1
CABLE
Water Control Valve, North American Models JAF0319223-, European Models JAF0352675-
1шт.
26
299049A1
CONNECTION
Heater Hose, North American Models JAF0319223-, European Models JAF0352675-
1шт.
27
403512A1
HARNESS
Cab, North American Models JAF0319223-, European Models JAF0352675-
1шт.
28
373318A1
BRACKET
Rear Window, North American Models JAF0319223-, European Models JAF0352675-
1шт.
29
373380A1
BRACKET
Rear Window, North American Models JAF0319223-, European Models JAF0352675-
1шт.
30
393618A1
DECAL
Air Conditioning, See Figure 09-64, Ref. 2, North American Models JAF0319223-, European Models JAF0352675-
1шт.
31
393619A1
DECAL
Water Control Valve, See Figure 09-64, Ref. 3, North American Models JAF0319223-, European Models JAF0352675-
1шт.
32
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
1/2 x 3/8, North American Models JAF0319223-, European Models JAF0352675-
2шт.
33
324986A1
SEAL
Evaporator Box to ROPS, 1200 mm (47-1/4 in.), North American Models JAF0319223-, European Models JAF0352675-
1шт.
