Запчасти Case IH 85XT (09-49) - HEATING SYSTEM HEATER, FLOOR (09) - CHASSIS

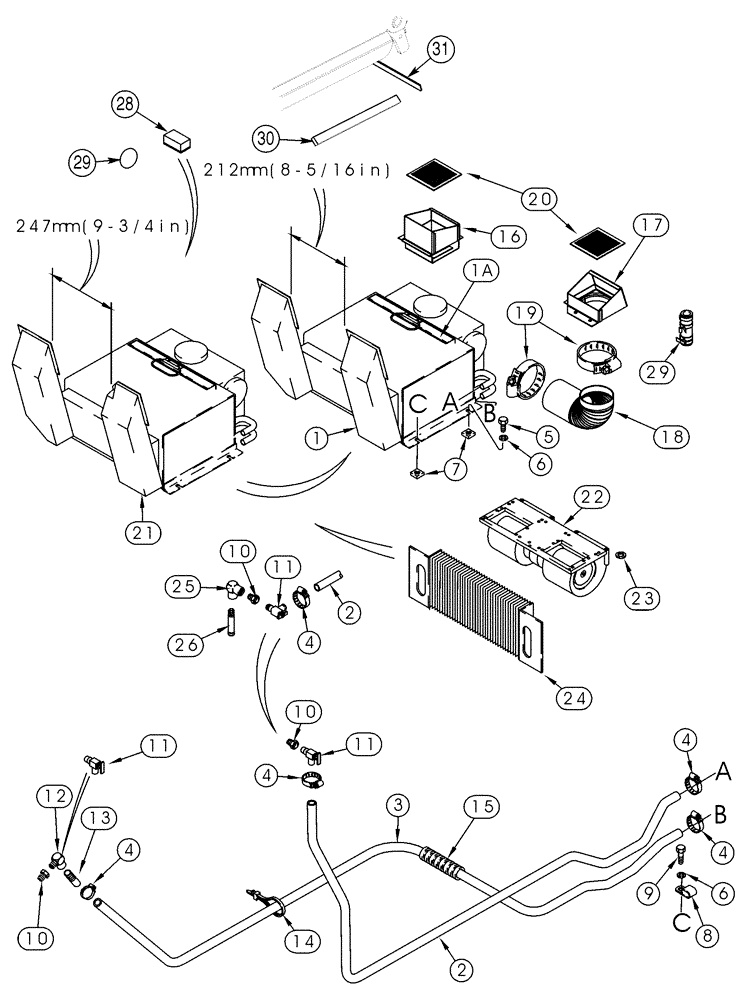

Схема запчастей Case IH 85XT - (09-49) - HEATING SYSTEM HEATER, FLOOR (09) - CHASSIS
2
4
4
25
1a
29
6
14
8
26
16
22
20
5
12
10
19
28
18
1
15
29
11
7
4
24
31
21
2
10
13
23
4
11
30
11
17
6
9
10
3
4

Артикул

Название

Примечание

Количество

1

232676A3

HEATER ASSY.

No Longer Available, Order 303239A1, Ref. 21 (9-121); 304973A2, Ref. 12 (09-10); 314752A1 (9-123), Includes: Ref. 1A

1шт.

1a

282252A1

FILTER

Not Illustrated

1шт.

Part of heater assy. P/N 232676A3

1шт.

Part of heater assy. P/N 303239A1

1шт.

2

235286A1

HEATER HOSE,1795.00 mm

Supply

1шт.

3

235287A1

HEATER HOSE,2550.00 mm

Return

1шт.

4

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

4шт.

8

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

2шт.

11

301803R1

SHUT-OFF VALVE

2шт.

12

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

1/2 PT, No Longer Used, Replaced by Ref. 11

1шт.

13

L17985

FITTING,3/8" - 18 NPT

No Longer Used, Replaced by Ref. 11

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

15

276739A1

LOOM

1шт.

16

279208A1

DUCT

Center

1шт.

17

279212A1

DUCT

Right-Hand

1шт.

18

283938A1

DUCT

1шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia.

2шт.

20

303224A1

FILTER

2шт.

21

303239A1

HEATER ASSY.

Not Serviced Separately, Includes: Ref. 1A

1шт.

22

178454A2

BLOWER ASSY.

Blower, 12V, see Page(s) 4-41

1шт.

178454A2R

REMAN-BLOWER

85XT

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

23

307155A1

WASHER

2шт.

24

314946A1

COIL ASSY.

Heater

1шт.

25

217-1054

ELBOW,1/2" - 14 NPTF Female

1/8 PT, At Engine, Models With Manual Brake Release

1шт.

26

221-1194

NIPPLE, LUBE

NIPPLE 1/2 PT x 4, At Engine, Models With Manual Brake Release

1шт.

27

359504A1

RESISTOR

Blower, Replaces: 307153A1

1шт.

314944A1

HARNESS

Blower Switch

1шт.

314945A1

HARNESS

Main, Blower

1шт.

307155A1

WASHER

Resistor Mounting

1шт.

315068A1

BALL KNOB

Blower

1шт.

393621A1

DECAL

Control, See Figure 09-64, Ref. 1

1шт.

314752A1

SERVICE KIT

Includes: 313002A1

1шт.

313002A1

Seal, Not Serviced Separately, Includes: Ref. 28 - 31

1шт.

Part of seals package P/N 314752A1

1шт.

28

295007A1

SEAL

Console, 135 mm (5-3/8 in.), See Figure 09-12, Ref. 20

2шт.

Part of seal P/N 313002A1

1шт.

29

299274A1

COVER

25 mm (1 in.), See Figure 09-09, Ref. 54

1шт.

Part of seal P/N 313002A1

1шт.

30

313149A1

SEAL

ROPS Screen To Chassis, 355 mm (14 in.), See Figure 09-35, Ref. 33

2шт.

Part of seal P/N 313002A1

1шт.

31

313150A1

SEAL

ROPS Side Front Toe Guard, 774 mm (30-1/2 in.), See Figure 09-35, Ref. 34

1шт.

Part of seal P/N 313002A1

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
